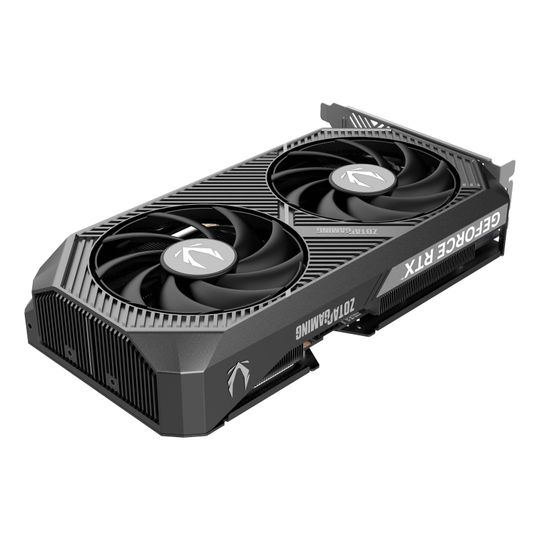

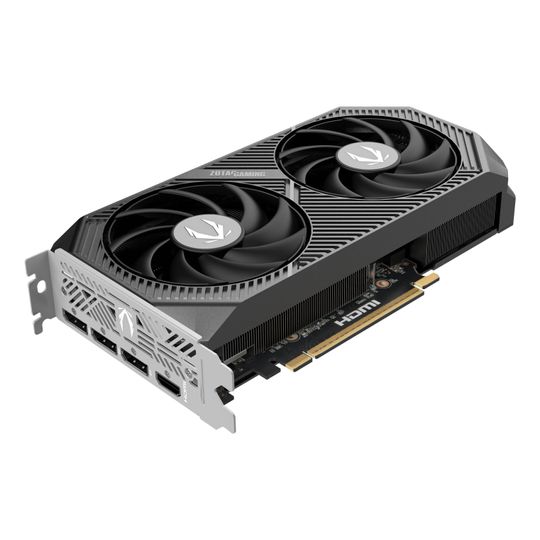

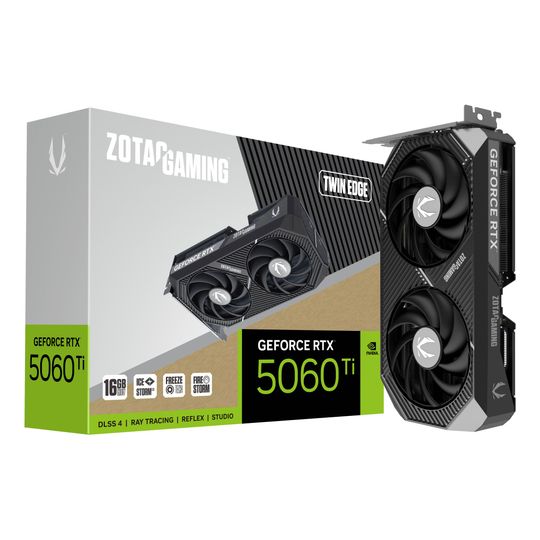

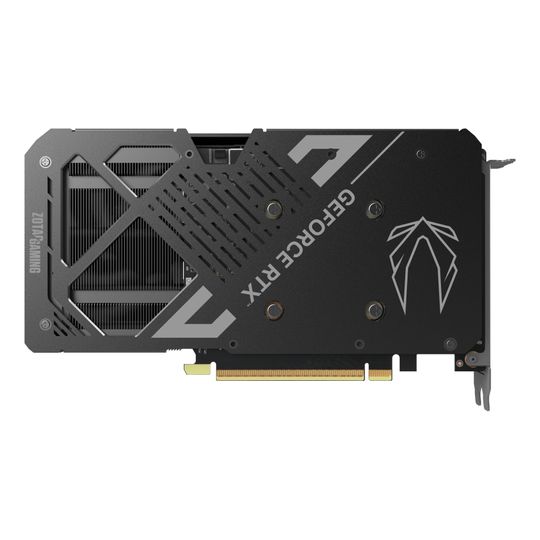

Skjákort Zotac RTX5060Ti 16GB Twin Edge
The ZOTAC GAMING GeForce RTX 5060 Ti 16GB Twin Edge is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 16GB of GDDR7 memory. With a solid cooling solution, the Twin Edge is ready to take on the latest title releases with smooth framerates and performance.
16 GB, GDDR7, 128-bit, 2572 MHz boost clock, PCI Express 5.0 x8, 3x DisplayPort, 1x HDMI, 1x 8-pin, 2 slot Zotac GAMING GeForce RTX 5060 Ti Twin Edge, GeForce RTX 5060 Ti, 16 GB, GDDR7, 128 bit, 7680 x 4320 pixels, PCI Express x8 5.0 |
|
Processor | |
---|---|
CUDA: | Yes |
CUDA cores: | 4608 |
Graphics processor family: | NVIDIA |
Graphics processor: | GeForce RTX 5060 Ti |
Processor boost clock speed: | 2572 MHz |
Maximum resolution: | 7680 x 4320 pixels |
Parallel processing technology support: | Not supported |
Maximum displays per videocard: | 4 |
Memory | |
---|---|
Discrete graphics card memory: | 16 GB |
Graphics card memory type: | GDDR7 |
Memory bus: | 128 bit |
Data transfer rate: | 28 Gbit/s |

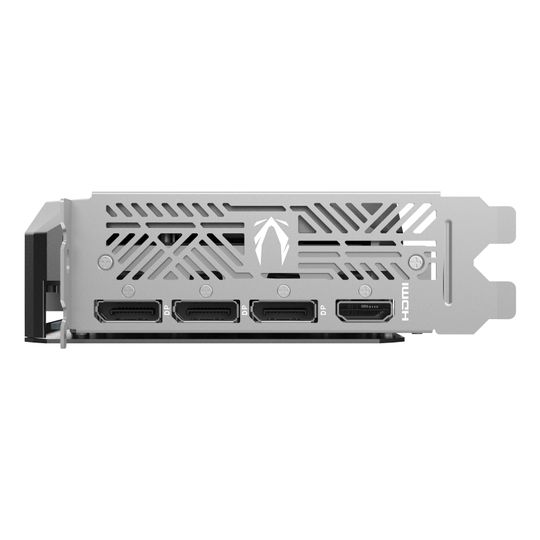

Ports & interfaces | |
---|---|
Interface type: | PCI Express x8 5.0 |
HDMI ports quantity: | 1 |
HDMI version: | 2.1b |
DisplayPorts quantity: | 3 |
DisplayPort version: | 2.1b |
Performance | |
---|---|
TV tuner integrated: | No |
DirectX version: | 12 Ultimate |
OpenGL version: | 4.6 |
Virtual Reality (VR) ready: | Yes |
HDCP: | Yes |
HDCP version: | 2.3 |
Dual Link DVI: | No |
NVIDIA G-SYNC: | Yes |
Design | |
---|---|
Cooling type: | Active |
Cooling technology: | Zotac IceStorm 2.0 |
Number of fans: | 2 fan(s) |
Fan diameter: | 9 cm |
Number of slots: | 2 |
SFF ready: | Yes |
Product colour: | Black |
Power | |
---|---|
Minimum system power supply: | 600 W |
Supplementary power connectors: | 1x 8-pin |
Power consumption (max): | 180 W |
System requirements | |
---|---|
Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
Weight & dimensions | |
---|---|
Length: | 220.5 mm |
Depth: | 41.6 mm |
Height: | 120.2 mm |
Packaging data | |
---|---|
Package width: | 218 mm |
Package depth: | 83 mm |
Package height: | 283 mm |
Package type: | Box |
Packaging content | |
---|---|
Manual: | Yes |
