Móðurborð 1851 ASUS PRO H810M-C-CSM DDR5 mATX
Asus Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: Self-recovering BIOS to safeguard PCs
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0 slot, two PCIe 4.0 M.2 slots, DDR5, rear USB 10Gbps Type-A and Type-C®
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
Specifications
- BIOS
- BIOS memory size: 256 Mbit
- BIOS type: UEFI AMI
- Expansion slots
- 1st M.2 highest PCI Express generation: 4.0
- 1st M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation :4.0
- 2nd M.2 largest key size: 2280
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- Features
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard chipset: Intel H810
- Motherboard chipset family: Intel
- Motherboard form factor: micro ATX
- Windows operating systems supported: Windows 10 x64, Windows 11
- Graphics
- Parallel processing technology support: Not supported
- Internal I/O
- 12V power connector: Yes
- ATX Power connector (24-pin): Yes
- Audio connector: Yes
- Chassis intrusion connector: Yes
- CPU fan connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- Number of chassis fan connectors: 2
- Number of COM connectors: 1
- Number of CPU fan connectors: 1
- Number of SATA III connectors: 4
- TPM connector: Yes
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
- Memory
- ECC сompatibility: Non-ECC
- Maximum internal memory: 128 GB
- Memory channels: Dual-channel
- Memory slots type: DIMM
- Number of memory slots: 2
- Supported memory types: DDR5-SDRAM
- Unbuffered memory: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN: Yes
- Wi-Fi: No

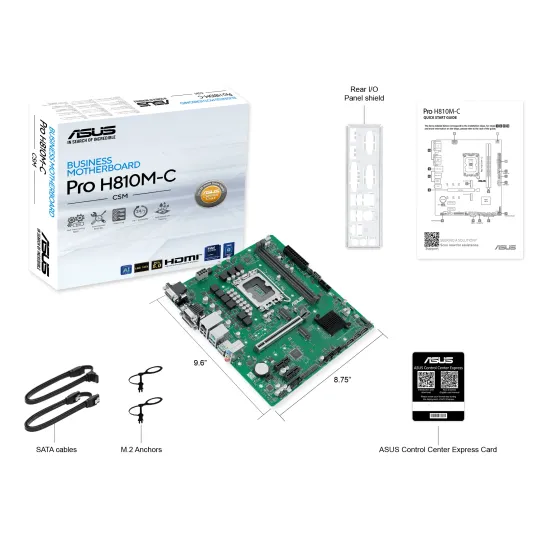

- Packaging content
- Cables included: SATA
- Processor
- Compatible processor series: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Supported processor sockets: LGA 1851

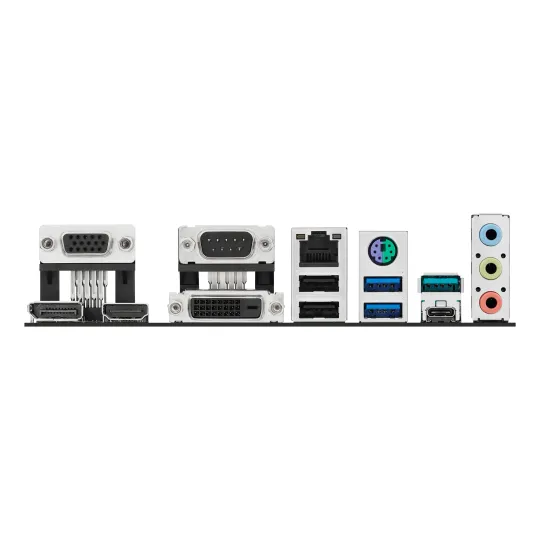

- Rear panel I/O ports
- COM ports quantity: 1
- DisplayPorts quantity: 1
- DVI-D ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- PS/2 ports quantity: 1
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- Storage controllers
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- Supported storage drive interfaces: M.2, SATA III
- Supported storage drive types: HDD & SSD
