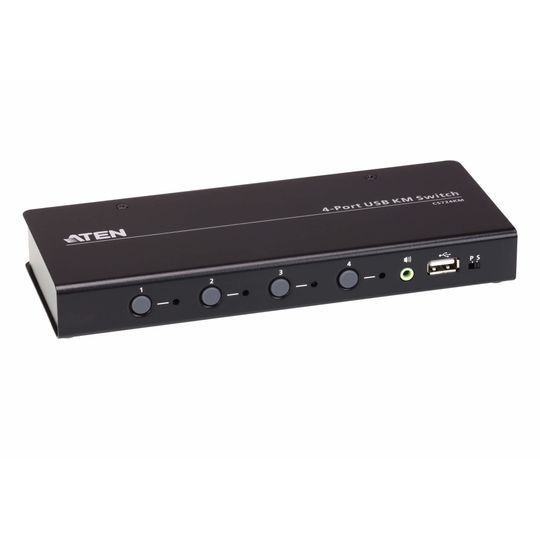

KVM skiptir Aten 4PORT USB CS724KM

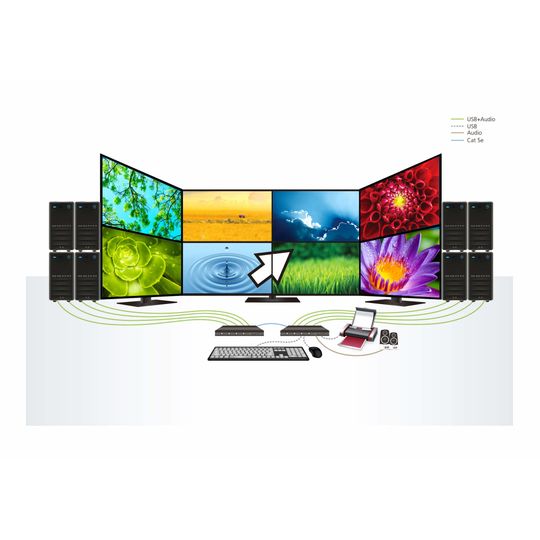

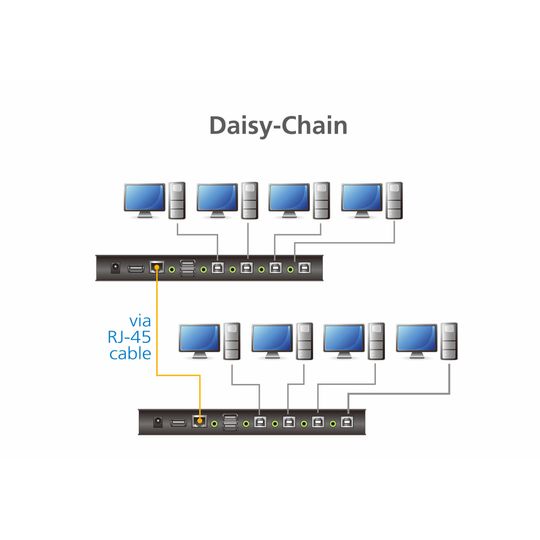

The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.

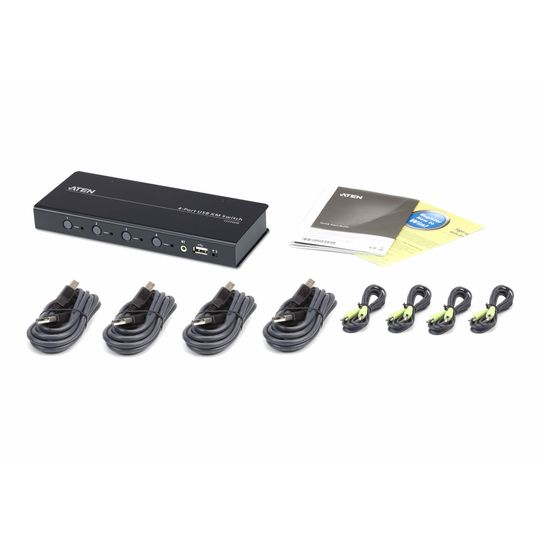

1x 4-port USB Boundless KM Switch
4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
1x User Instructions
| 4-Port USB KM Switch ATEN 4-Port USB KM Switch, Black |
|

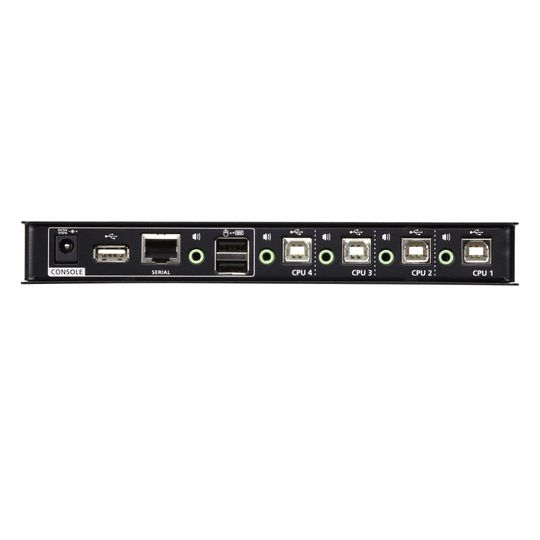

| Ports & interfaces | |
|---|---|
| Number of computers controlled: | 4 |
| Keyboard port type: | USB |
| Mouse port type: | USB |
| USB 2.0 Type-B ports quantity: | 4 |
| Console ports: | 3.5mm headphone, RJ–45, USB A |
| Console USB ports quantity: | 2 |
| USB hub: | Yes |
| USB 2.0 Type-A hub ports quantity: | 2 |
| DC-in jack: | Yes |
| Performance | |
|---|---|
| Daisy chain: | Yes |
| Design | |
|---|---|
| Product colour: | Black |
| Housing material: | Metal, Plastic |
| LED indicators: | Yes |
| Push button: | Yes |
| Hot keys: | Yes |
| Display | |
|---|---|
| Built-in display: | No |
| Power | |
|---|---|
| Power source: | DC |
| Operational conditions | |
|---|---|
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Width: | 200 mm |
| Depth: | 80.6 mm |
| Height: | 25 mm |
| Weight: | 899 g |
| Packaging data | |
|---|---|
| Package width: | 62 mm |
| Package depth: | 283 mm |
| Package height: | 173 mm |
| Package weight: | 1.07 kg |
| Packaging content | |
|---|---|
| Cables included: | Audio (3.5mm), USB |
| Manual: | Yes |
| Logistics data | |
|---|---|
| Master (outer) case net weight: | 4.5 kg |
| Harmonized System (HS) code: | 85176200 |
| Master (outer) case width: | 300 mm |
| Master (outer) case length: | 336 mm |
| Master (outer) case height: | 194 mm |
| Master (outer) case gross weight: | 5.73 kg |
| Products per master (outer) case: | 5 pc(s) |
