Fartölvudokka Icybox USB-C IB-DK2880-C41 PD100W
Brilliant 8K resolution
With the exceedingly fast transfer rates of USB4® and HDMI® 2.1 the DockingStation allows for resolutions of up to 8K on supported devices and displays. Improve your work and creative tasks with a new level of detail and experience entertainment with brilliant graphics.

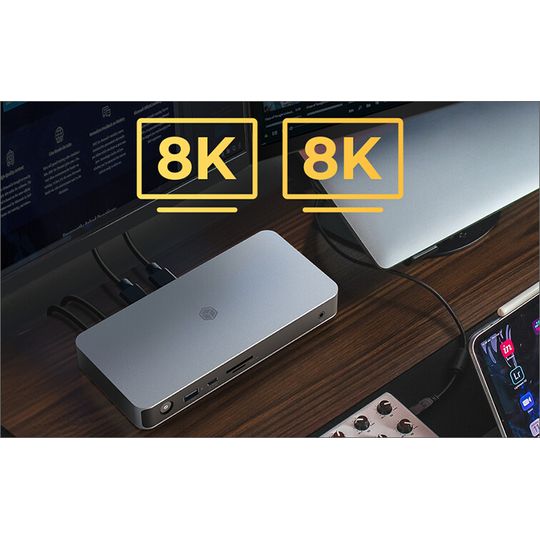

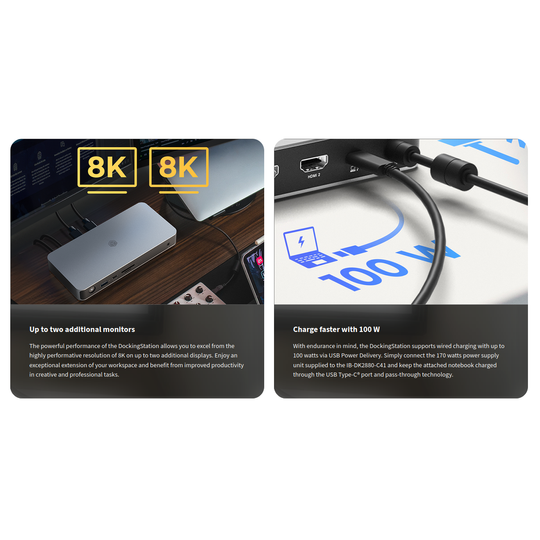

Up to two additional monitors
The powerful performance of the DockingStation allows you to excel from the highly performative resolution of 8K on up to two additional displays. Enjoy an exceptional extension of your workspace and benefit from improved productivity in creative and professional tasks.
Charge faster with 100 W
With endurance in mind, the DockingStation supports wired charging with up to 100 watts via USB Power Delivery. Simply connect the 170 watts power supply unit supplied to the IB-DK2880-C41 and keep the attached notebook charged through the USB Type-C® port and pass-through technology.
| 10-in-1 USB4 Type-C DockingStation with dual video output ICY BOX 10-in-1 USB4 Type-C DockingStation with dual video output, Wired, USB4, 100 W, 10,100,1000,2500 Mbit/s, Anthracite, Black, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
|

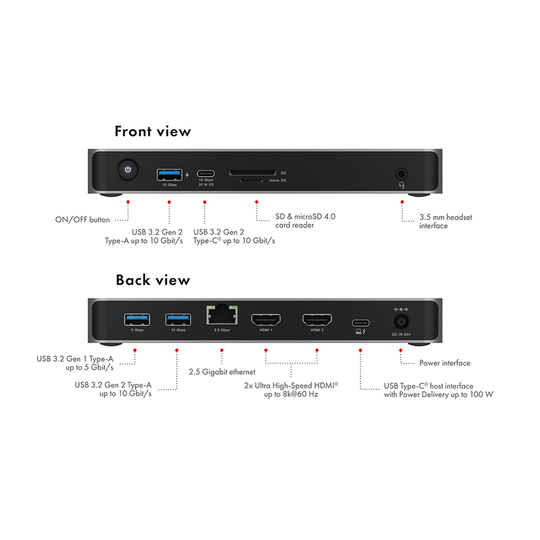

| Ports & interfaces | |
|---|---|
| Connectivity technology: | Wired |
| Host interface: | USB4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB4 ports quantity: | 1 |
| Number of USB ports with PowerShare support: | 1 |
| USB Power Delivery: | Yes |
| USB Power Delivery up to: | 100 W |
| HDMI ports quantity: | 2 |
| HDMI version: | 2.1 |
| Microphone in: | No |
| Combo headphone/mic port: | Yes |
| DC-in jack: | Yes |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Ethernet LAN data rates: | 10,100,1000,2500 Mbit/s |
| Performance | |
|---|---|
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate: | 40 Gbit/s |
| HD type: | 8K Ultra HD |
| Maximum digital resolution: | 7680 x 4320 pixels |
| Maximum refresh rate: | 60 Hz |
| Product colour: | Anthracite, Black |
| On/off switch: | Yes |
| LED indicators: | Yes |
| Charging function: | Yes |
| UASP support: | Yes |
| Housing material: | Aluminium, Plastic |
| Country of origin: | Thailand |
| Brand compatibility: | Universal |
| Power | |
|---|---|
| Power source type: | DC |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Output voltage: | 20 V |
| Output current: | 8.5 A |
| Power consumption (typical): | 170 W |
| Weight & dimensions | |
|---|---|
| Width: | 190 mm |
| Depth: | 90 mm |
| Height: | 25 mm |
| Weight: | 510 g |
| Packaging data | |
|---|---|
| Quantity per pack: | 1 pc(s) |
| Package width: | 145 mm |
| Package depth: | 235 mm |
| Package height: | 88 mm |
| Package weight: | 1.52 kg |
| Packaging content | |
|---|---|
| Cables included: | USB Type-C |
| AC adapter included: | Yes |
| Logistics data | |
|---|---|
| Master (outer) case width: | 445 mm |
| Master (outer) case length: | 305 mm |
| Master (outer) case height: | 270 mm |
| Master (outer) case gross weight: | 15.9 kg |
| Master (outer) cases per pallet layer: | 10 pc(s) |
