Tölvukassi Chieftec Vita AZ-01B-OP mATX

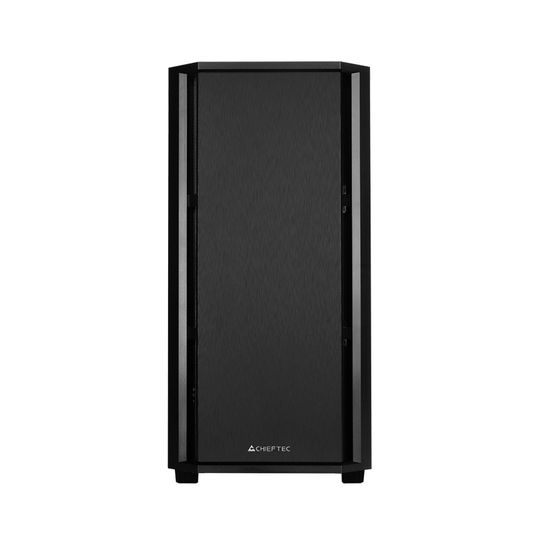

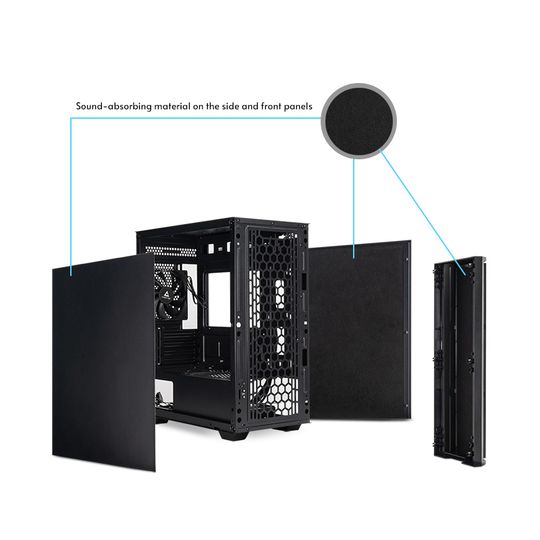

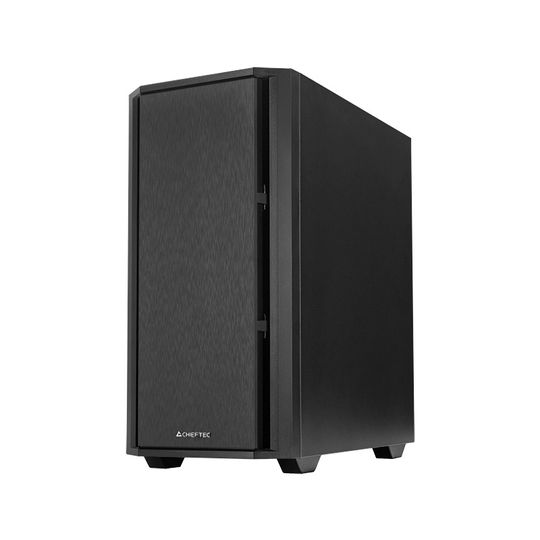

The CHIEFTEC Pro Mini presents a modern m-ATX mini tower PC case with a timelessly elegant, brushed front panel, complemented by an interior designed with a modern layout for optimal hardware and cooling compatibility. The CHIEFTEC Pro Mini features added sound-absorbing material on the side and front panels to provide an optimized noise level, while a total of 8 possible fan mounts provides flexible cooling configurations. The Pro Mini is ready to deliver customers an ideal combination of performance, noise and quality design.
| Chieftec Pro Mini | AZ-01B-OP | mATX Tower Case with Noise Insulation Chieftec AZ-01B-OP, Mini Tower, PC, Black, micro ATX, Mini-ITX, uATX, 16.5 cm, 33 cm |
|
| Design | |
|---|---|
| Form factor: | Mini Tower |
| Type: | PC |
| Product colour: | Black |

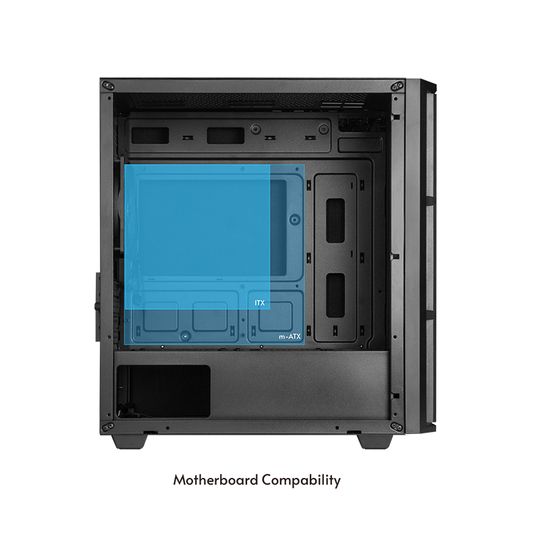

| Supported motherboard form factors: | micro ATX, Mini-ITX, uATX |
| Number of 3.5" bays: | 1 |
| Number of 2.5" bays: | 2 |
| Number of internal 3.5" bays: | 1 |
| Number of storage drives supported: | 3 |
| Number of expansion slots: | 4 |
| Full-Height expansion slots: | 4 |
| Side window: | No |
| Illumination: | No |
| Tempered glass panel(s): | No |
| Anti-dust filter: | Yes |
| Reset button: | Yes |
| On/off button: | Yes |
| Maximum CPU cooler height: | 16.5 cm |
| Maximum graphics card length: | 33 cm |
| Maximum PSU length: | 18 cm |
| Power supply | |
|---|---|
| Power supply included: | No |

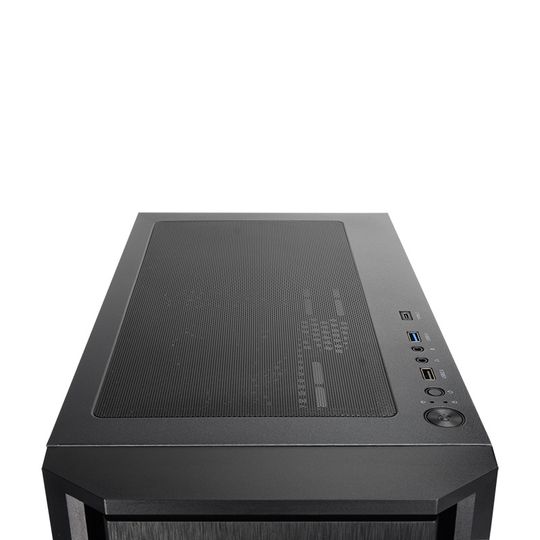

| Ports & interfaces | |
|---|---|
| Audio input: | Yes |
| Audio output: | Yes |
| USB 2.0 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| USB Type-C ports quantity: | 1 |

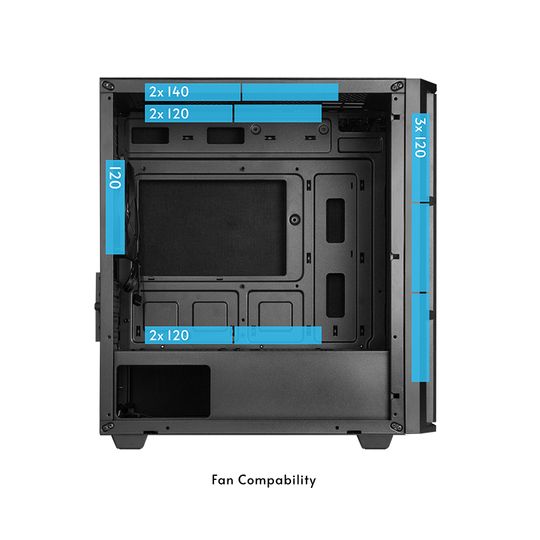

| Cooling | |
|---|---|
| Number of front fans supported (max): | 3 |
| Front fans diameters supported: | 120,140 mm |

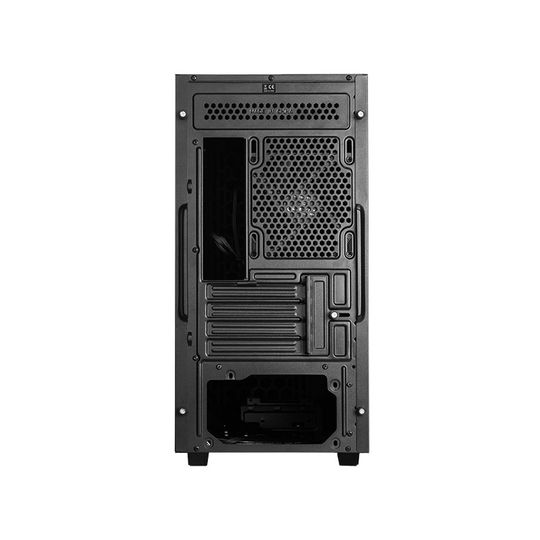

| Rear fans installed: | 1x 120 mm |
| Number of rear fans supported (max): | 1 |
| Rear fans diameters supported: | 120 mm |
| Number of top fans supported (max): | 2 |
| Top fans diameters supported: | 120,140 mm |

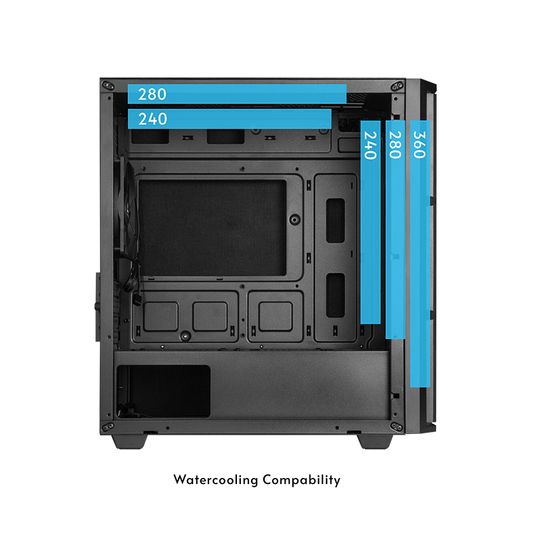

| Liquid cooling capability: | Yes |
| Front radiator sizes supported: | 240,280,360 mm |
| Top radiator sizes supported: | 240,280 mm |
| Storage | |
|---|---|
| Supported HDD sizes: | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Width: | 212 mm |
| Depth: | 360 mm |
| Height: | 420 mm |
| Weight: | 5.15 kg |
| Material thickness: | 0.6 mm |
| Packaging data | |
|---|---|
| Package weight: | 6 kg |
