Tölva Lenovo ThinkCentre Neo M70q U5 32GB 1TB W11P
Lenovo ThinkCentre M70q Gen 6 | Intel Core Ultra 5 225T | 32GB DDR5 RAM | 1TB SSD | Win 11 Pro
- Örgjörvi: Intel Core Ultra 5 225T, 10C/10T (6P+4E) allt að 4.9GHz, 20MB Intel Smart Cache
- Vinnsluminni: 32GB DDR5 SO-DIMM 5600MHz (1x32GB, MAX 64GB)
- SSD diskur: 1TB 2280 M.2 NVMe PCIe 4.0x4 SSD (Opal)
- laus rauf fyrir M.2 NVMe 2280 SSD disk aukalega (allt að 2x M.2 2280 SSD)
- Skjákjarni: Intel Graphics (innbyggt)
- Flísasett: Intel Q870 Chipset
- NPU / AI: Intel AI Boost (innbyggt), allt að 13 TOPS
- Hljóðkort: HD Audio, Realtek ALC233VB eða Conexant CX11771
- Hátalari: 1x 2W
- Stýrikerfi: Windows 11 PRO (Nordic)
- Net: RJ45 100/1000M Gigabit Ethernet
- Þráðlaust net: Intel Wi-Fi 6E AX211 (802.11ax 2x2) og Bluetooth 5.3
- Kortalesari: Nei

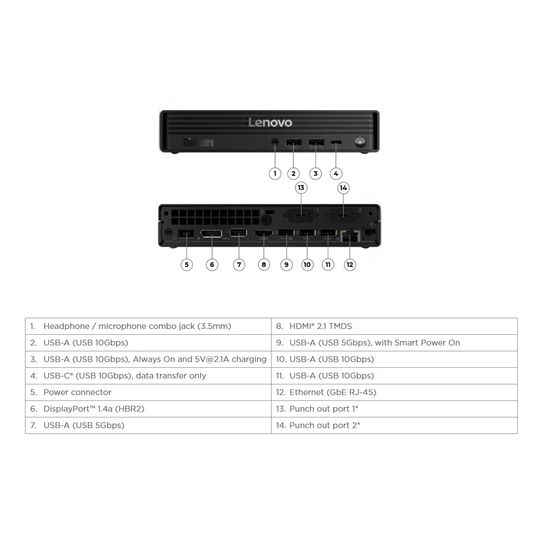

- Tengi að framan:
- 1x USB-C (USB 3.2 Gen2 10Gbps, aðeins gögn)
- 2x USB-A (USB 3.2 Gen2 10Gbps, þar af 1x Always On og 5V@2.1A hleðsla)
- 1x 3.5mm Combo Jack
- Tengi að aftan:
- 2x USB-A (USB 3.2 Gen2 10Gbps)
- 2x USB-A (USB 3.2 Gen1 5Gbps, þar af 1x Smart Power On)
- 1x HDMI 2.1 TMDS
- 1x DisplayPort 1.4a
- 1x RJ45 Gigabit Ethernet
- Aflgjafi: 90W 89% straumbreytir
- Litur: Svört
- Mál: 179 x 182.9 x 36.5 mm
- Þyngd: ~1.18 kg
- Vottanir: ENERGY STAR 9.0, TCO Certified gen 10, RoHS
- Prófanir: MIL-STD-810H hernaðarstaðall
ENSURED PRODUCTIVITY FOR PROFESSIONALS
AI-Assisted Performance
Supercharge your workflow with the ThinkCentre M70q Gen 6 Tiny PC. Powered by Intel® Core™ Ultra processors, it features Intel vPro® for security and IT manageability. Lenovo AI Now drives AI acceleration, while the AI Turbo Engine allocates workloads between CPU, GPU, and NPU for peak performance. Plus, WiFi 7 ensures blazing-fast connectivity.
BIG POWER & FLEXIBILITY
Multitask Like a Pro
Enjoy unmatched productivity with faster USB speeds and multiple ports. Connect the ThinkCentre M70q Tiny PC to up to four displays to power through tasks with vast memory and expandable storage. With an optional USB-C® (Thunderbolt™ 4) port and Neural Processing Unit (NPU), enhance hybrid and digital workplace expansion for a broadened ecosystem.
ALL-AROUND SAFETY IN PLACE
Robust Security & Manageability
This secured-core PC (L3) features ThinkShield security, encompassing hardware and software solutions. Get additional safeguards with a self-healing BIOS, dTPM chip, Kensington Security Slot™, and Smart USB Protection. Choose Intel vPro® security for advanced threat protection while securing your data and business with ThinkCentre Customization.
DURABILITY YOU CAN RELY ON
Intentional Engineering to Boost Efficiency
This PC uses the US Department of Defense MIL-STD-810H for a balance of reliability and durability. With TüV anti-dust, low surface, and shock-resistance certifications, it stands strong in tough environments, while ensuring safety through IEC Electrical Safety and Electromagnetic certifications, offering first-class manageability for any workspace.
CREDIBILITY & COLLABORATION
Sustainability
Our goal is to provide smarter technology that builds a brighter, more sustainable future for our customers, communities, and the planet. That's why we pursue industry leading labels and certifications that demonstrate our commitment to sustainability in product design. Together, we can build a smarter future for all.
Specifications may vary depending upon region / model.
Lenovo ThinkCentre M70q Gen 6, Intel Core Ultra 5, 225T, 32 GB, DDR5-SDRAM, 1 TB, Windows 11 Pro
- Mini PC Black 90 W
- Intel Core Ultra 5 225T Processor cores: 10
- 32 GB DDR5-SDRAM 5600 MHz 1 x 32 GB
- 1 TB SSD
- Intel Graphics
- Ethernet LAN 100,1000 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth 5.3
- Windows 11 Pro
| Intel Core Ultra 7 265T (30MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro Lenovo ThinkCentre M70q Gen 6, Intel Core Ultra 5, 225T, 32 GB, DDR5-SDRAM, 1 TB, Windows 11 Pro |
|
| Processor | |
|---|---|
| Processor manufacturer: | Intel |
| Processor family: | Intel Core Ultra 5 |
| Processor generation: | Intel Core Ultra (Series 2) |
| Processor model: | 225T |
| Processor cores: | 10 |
| Processor threads: | 10 |
| Processor boost frequency: | 4.9 GHz |
| Performance cores: | 6 |
| Efficient cores: | 4 |
| Performance-core Max Turbo Frequency: | 4.9 GHz |
| Efficient-core Max Turbo Frequency: | 4.4 GHz |
| Performance-core base frequency: | 2.5 GHz |
| Efficient-core base frequency: | 1.9 GHz |
| Processor cache: | 20 MB |
| Processor cache type: | Smart Cache |
| Number of processors installed: | 1 |
| Processor base power: | 35 W |
| Maximum turbo power: | 114 W |
| Neural processor unit (NPU) | |
|---|---|
| Neural processor unit (NPU): | Intel AI Boost |
| Sparsity support: | Yes |
| Windows Studio effects support: | Yes |
| AI software frameworks supported by NPU: | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to: | 23 TOPs |
| NPU performance up to: | 13 TOPs |
| Memory | |
|---|---|
| Internal memory: | 32 GB |
| Maximum internal memory: | 64 GB |
| Internal memory type: | DDR5-SDRAM |
| Memory layout (slots x size): | 1 x 32 GB |
| Memory slots: | 2x SO-DIMM |
| Memory clock speed: | 5600 MHz |
| Memory channels: | Dual-channel |
| Storage | |
|---|---|
| Total storage capacity: | 1 TB |
| Storage media: | SSD |
| Optical drive type: | No |
| Number of storage drives installed: | 1 |
| Total SSDs capacity: | 1 TB |
| Number of SSDs installed: | 1 |
| SSD capacity: | 1 TB |
| SSD interface: | PCI Express 4.0 |
| NVMe: | Yes |
| SSD form factor: | M.2 |
| M.2 SSD size: | 2280 (22 x 80 mm) |
| Card reader integrated: | No |
| Graphics | |
|---|---|
| Discrete graphics card: | No |
| On-board graphics card: | Yes |
| Discrete graphics card model: | Not available |
| On-board GPU manufacturer: | Intel |
| On-board graphics card family: | Intel Graphics |
| On-board graphics card model: | Intel Graphics |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet LAN data rates: | 100,1000 Mbit/s |
| Cabling technology: | 10/100/1000Base-T(X) |
| LAN controller: | Intel® I219-LM |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards: | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer: | Intel |
| WLAN controller model: | Intel Wi-Fi 6E AX211 |
| Antenna type: | 2x2 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Wake-on-LAN ready: | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| DVI port: | Yes |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4a |
| Ethernet LAN (RJ-45) ports: | 1 |
| Combo headphone/mic port: | Yes |
| Design | |
|---|---|
| Chassis type: | Mini PC |
| Colour name: | Raven black |
| Volume: | 1 L |
| Placement supported: | Horizontal/Vertical |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Product colour: | Black |
| Performance | |
|---|---|
| Motherboard chipset: | Intel Q870 |
| Built-in speaker(s): | Yes |
| Number of speakers: | 1 |
| Password protection: | Yes |
| Password protection type: | BIOS, HDD, Power on, Supervisor |
| Trusted Platform Module (TPM): | Yes |
| Product type: | Mini PC |
| Trusted Platform Module (TPM) version: | 2.0 |
| Software | |
|---|---|
| Operating system language: | English, Swedish, Finnish, Danish, Norwegian |
| Operating system installed: | Windows 11 Pro |
| Power | |
|---|---|
| Power supply: | 90 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T): | 5 - 35 °C |
| Storage temperature (T-T): | -40 - 60 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Storage relative humidity (H-H): | 10 - 90% |
| Operating altitude: | 0 - 3048 m |
| Non-operating altitude: | 0 - 12192 m |
| Certificates | |
|---|---|
| Compliance certificates: | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates: | ENERGY STAR, TCO |
| Weight & dimensions | |
|---|---|
| Width: | 179 mm |
| Depth: | 182.9 mm |
| Height: | 36.5 mm |
| Weight: | 1.18 kg |
| Package width: | 250 mm |
| Package depth: | 490 mm |
| Package height: | 128 mm |
| Package weight: | 3.2 kg |
| Packaging content | |
|---|---|
| Mouse included: | Yes |
| Mouse connectivity: | Wired |
| Keyboard included: | Yes |
| Keyboard connectivity: | Wired |
| Display | |
|---|---|
| Display included: | No |
