Key Features

•     2800 MHz Boost Clock Speed
•     32 Xe Cores | 256 XMX AI Engines
•     Xe2 Architecture | 32 RT Units
•     32GB of ECC GDDR6 VRAM

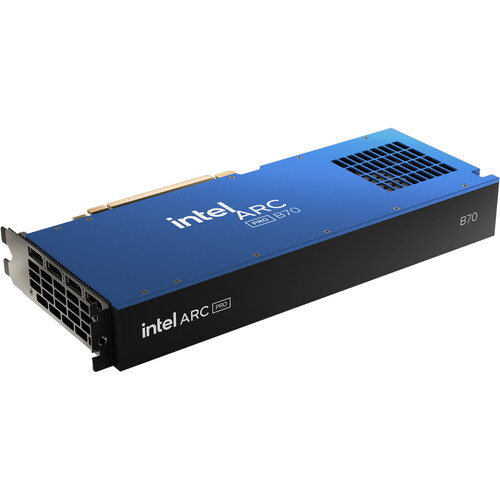

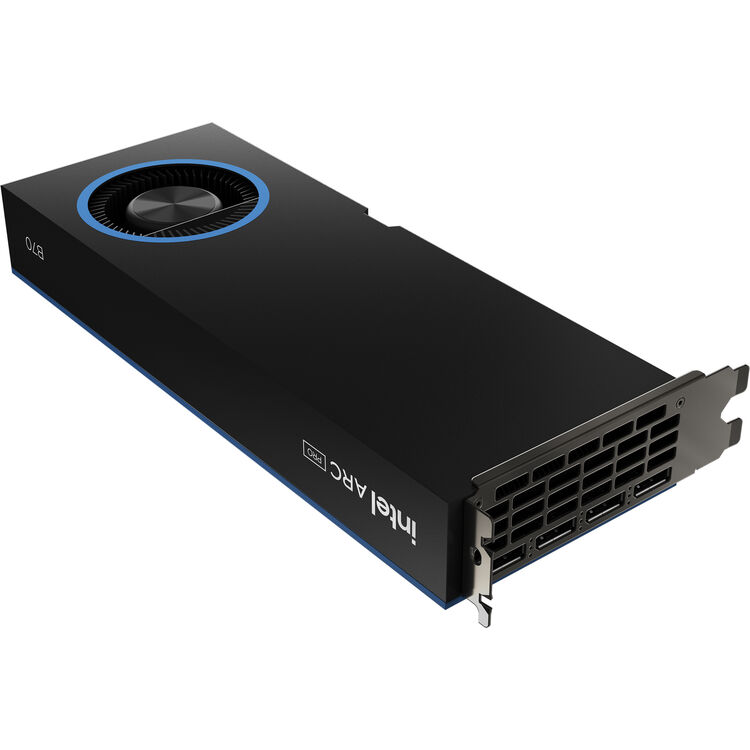

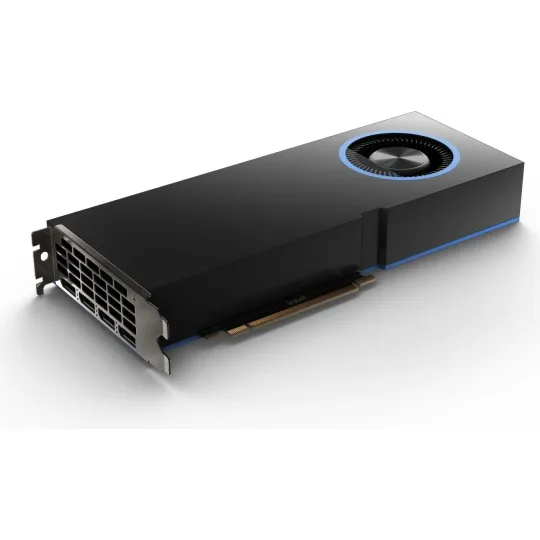

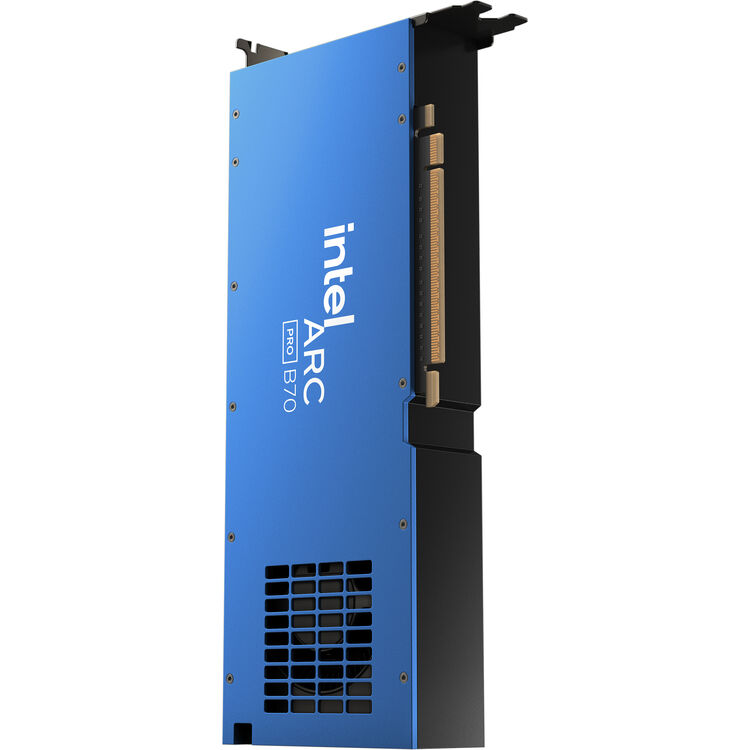

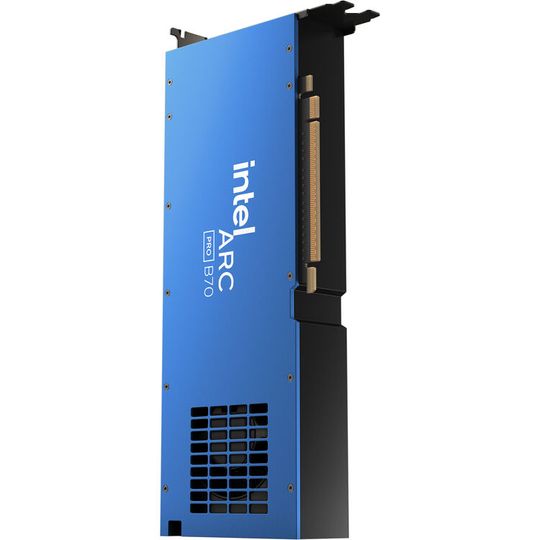

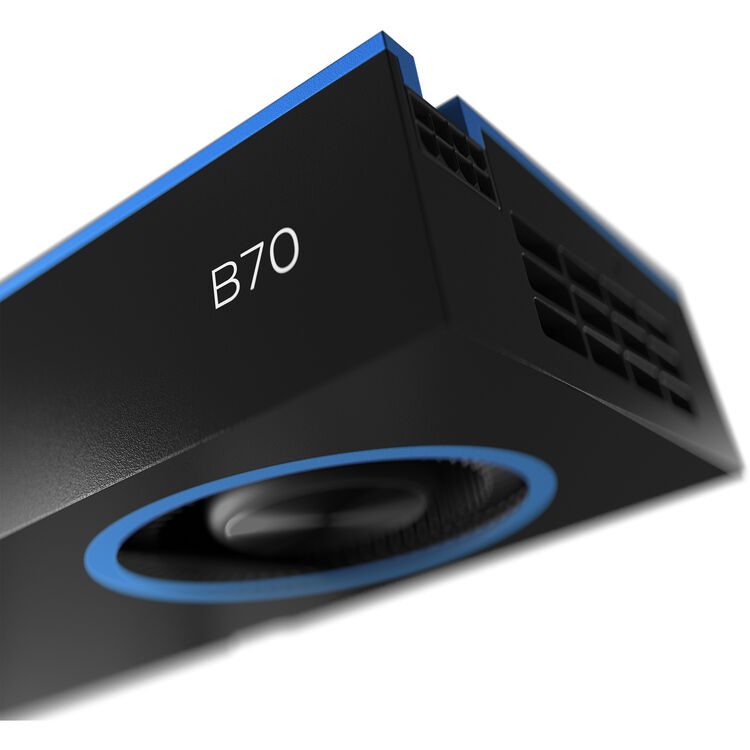

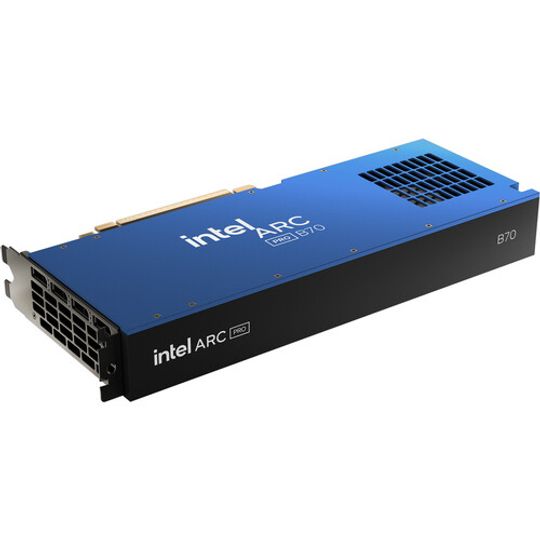

Built using the Xe2 microarchitecture, the Intel Arc Pro B70 Workstation Graphics Card is designed to deliver responsive visuals with ray tracing while accelerating AI workloads.

In addition to featuring 32GB of ECC GDDR6 VRAM with a 256-bit memory interface, this GPU features 32 Xe cores with a 2800 MHz boost clock speed. With 256 XMX AI Engines, the Arc Pro B70 delivers up to 367 TOPS (Trillions of Operations per Second) to upscale graphics, optimize gaming performance, and accelerate generative AI content creation. The 32 ray tracing units provide realistic lighting and reflections with compatible games.
Xe2 Architecture
Based on Xe2 architecture, this GPU features Intel Xe Matrix Extensions (XMX) AI cores and advanced ray tracing units, bringing high-performance capabilities to creators, developers, and engineers.
XeSS 2
Intel's Xe Super Sampling (XeSS) is updated with three key technologies: XeSS Super Resolution, XeSS Frame Generation, and Xe Low Latency.

XeSS Super Resolution offers AI-based upscaling for over 150 supported games. AI-powered XeSS Frame Generation delivers a more fluid visual experience by adding interpolated frames using optical flow and motion vector reprojection. Lastly, Xe Low Latency integrates with the game engine to provide faster responsiveness. With all three technologies active, XeSS 2 can increase the fps output by up to 3.9x compared to the previous generation, delivering high performance with demanding AAA games.
Optimized for AEC
This GPU is optimized for AEC (architecture, engineering, construction) and inference workstations, providing stability and performance through a wide range of independent software vendors (ISV) certifications.
OS Compatibility
This GPU is compatible with consumer and pro drivers on Windows. On Linux, this graphics card supports a containerized software stack to simplify AI deployments and will be progressively upgraded with features and optimizations.

SPECIFICATIONS

• GPU Model: Intel Arc Pro B70
• Stream Processors: 32
• Dedicated AI Cores: Yes, 367 TOPS
• Interface: PCI Express 5.0 x16
• Video RAM: 32 GB ECC GDDR6
• Video Output: 4x DisplayPort 2.1
• Power Connection: 1x 8-Pin PCI Connector
• GPU Width: Dual-Slot
• Clock, Boost Mode: 2800 MHz
• Clock, Base Mode: 2280 MHz
• Supported APIs
  • DirectX: 12
  • Vulkan
  • OpenGL
  • OpenCL
• Video RAM: 32 GB ECC GDDR6
• Memory Interface Width: 256-Bit
• Memory Bandwidth: 608 GB/s
• Max Power Consumption: 230 W
• Expansion Slot Compatibility
• Full Height
• Height: 3.9" / 99.1 mm
• Length: 10.5" / 266.7 mm
• Width: Dual-Slot

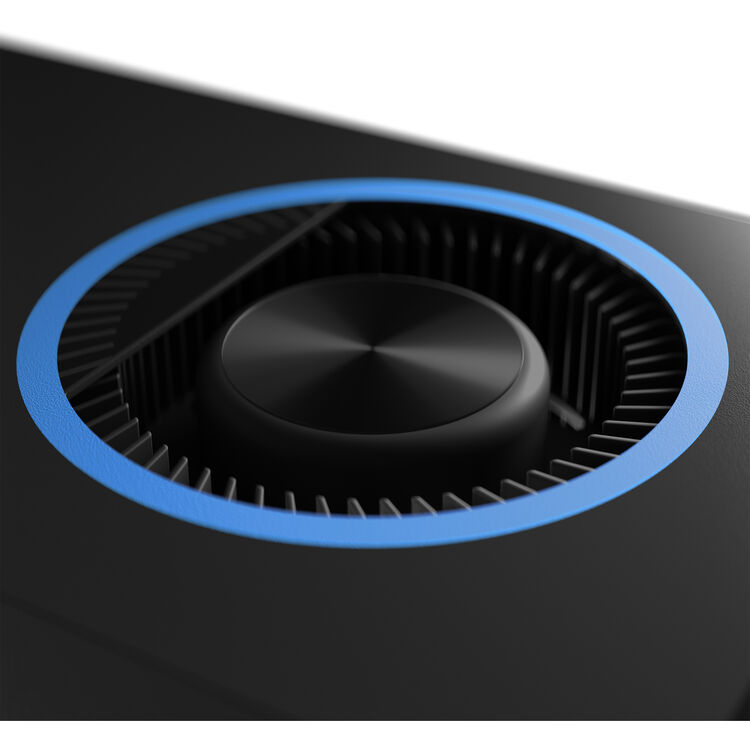

• Cooler Type: Blower-Style Fan
