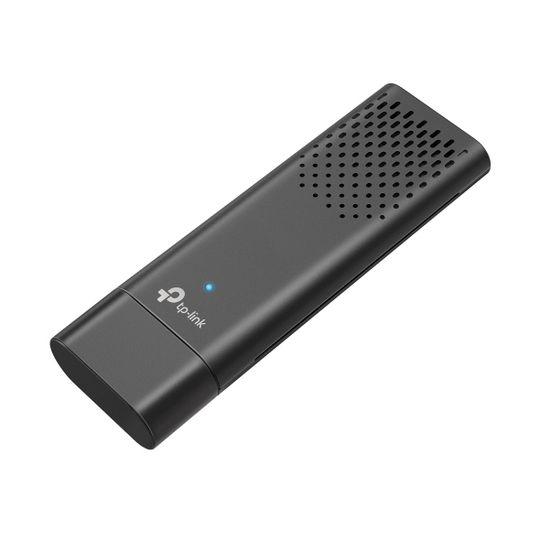

Netkort TP-Link USB WiFi-AX ARCHER TX20U AX1800
Wi-Fi 6 Upgrades Everything
The latest Wifi technology makes annoying lag and endless loading a thing of the past. Equip your PC with TX20U and enjoy the future of faster network loads and more connections.

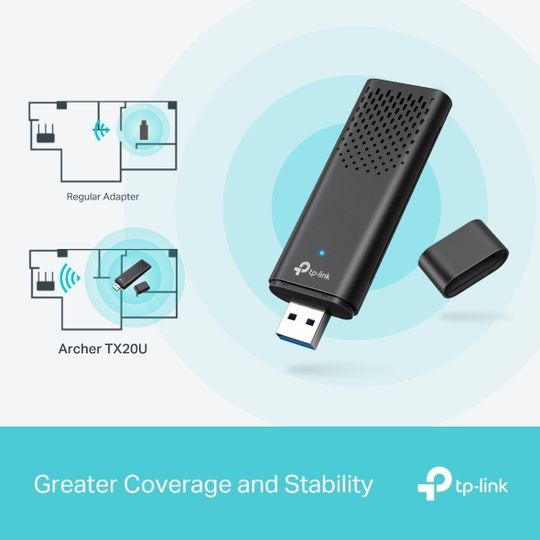

Greater Coverage and Stability
The built-in high-performance antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20U ideal for HD streaming, online gaming and large file downloads.
| 2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), IEEE 802.11a/b/g/n/ac/ax, 90.2 × 29.2 × 12.9 mm TP-Link Archer AX1800 Dual Band Wi-Fi 6 Wireless USB Adapter, Wired, USB, WLAN, Wi-Fi 6 (802.11ax), 1201 Mbit/s, Black |
|
| Ports & interfaces | |
|---|---|
| Connectivity technology: | Wired |
| Host interface: | USB |
| Interface: | WLAN |
| USB connector form factor: | Straight |
| USB version: | 3.2 Gen 1 (3.1 Gen 1) |
| Network | |
|---|---|
| Maximum data transfer rate: | 1201 Mbit/s |
| Networking standards: | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi: | Yes |
| Wi-Fi band: | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard: | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards: | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported: | 11,54,300,400,574,867 Mbit/s |
| Security algorithms: | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Design | |
|---|---|
| Component for: | PC |
| Product colour: | Black |
| Internal: | No |
| Transmitting power (CE): | 18.5 - 21.5 dBm |
| Transmitting power (FCC): | 19 dBm |
| LED indicators: | Status |
| Operating modes: | Infrastructure mode |
| System requirements | |
|---|---|
| Windows operating systems supported: | Windows 10, Windows 11 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width: | 90.2 mm |
| Depth: | 29.2 mm |
| Height: | 12.9 mm |
| Packaging content | |
|---|---|
| Quick installation guide: | Yes |
| Technical details | |
|---|---|
| Compliance certificates: | CE, Federal Communications Commission (FCC), RoHS |
