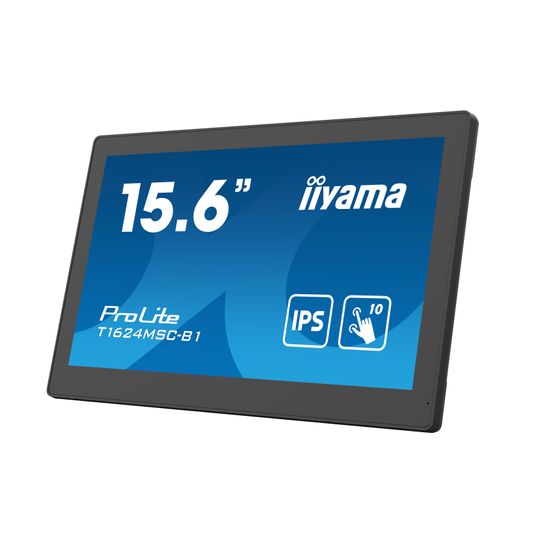

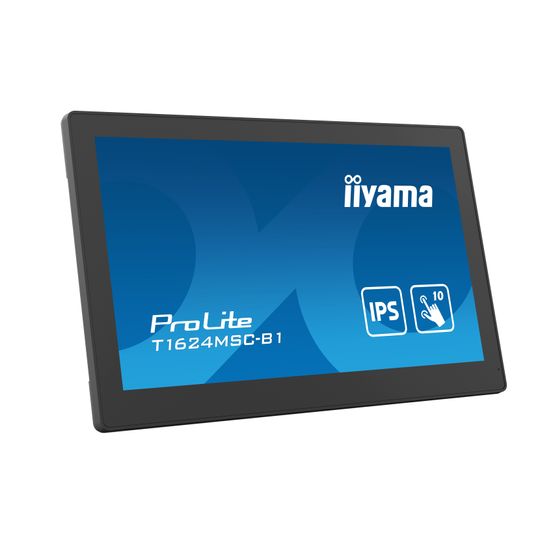

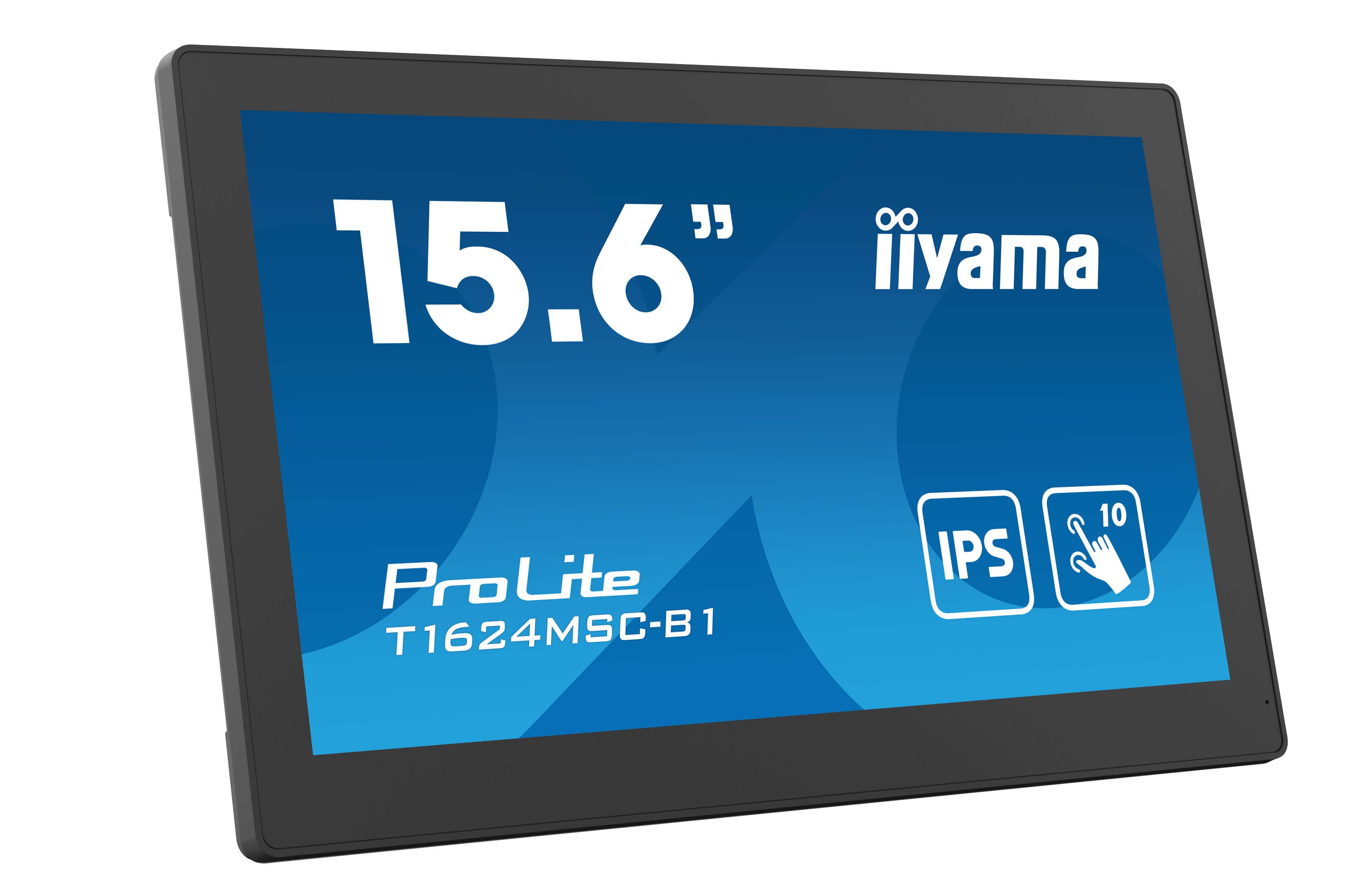

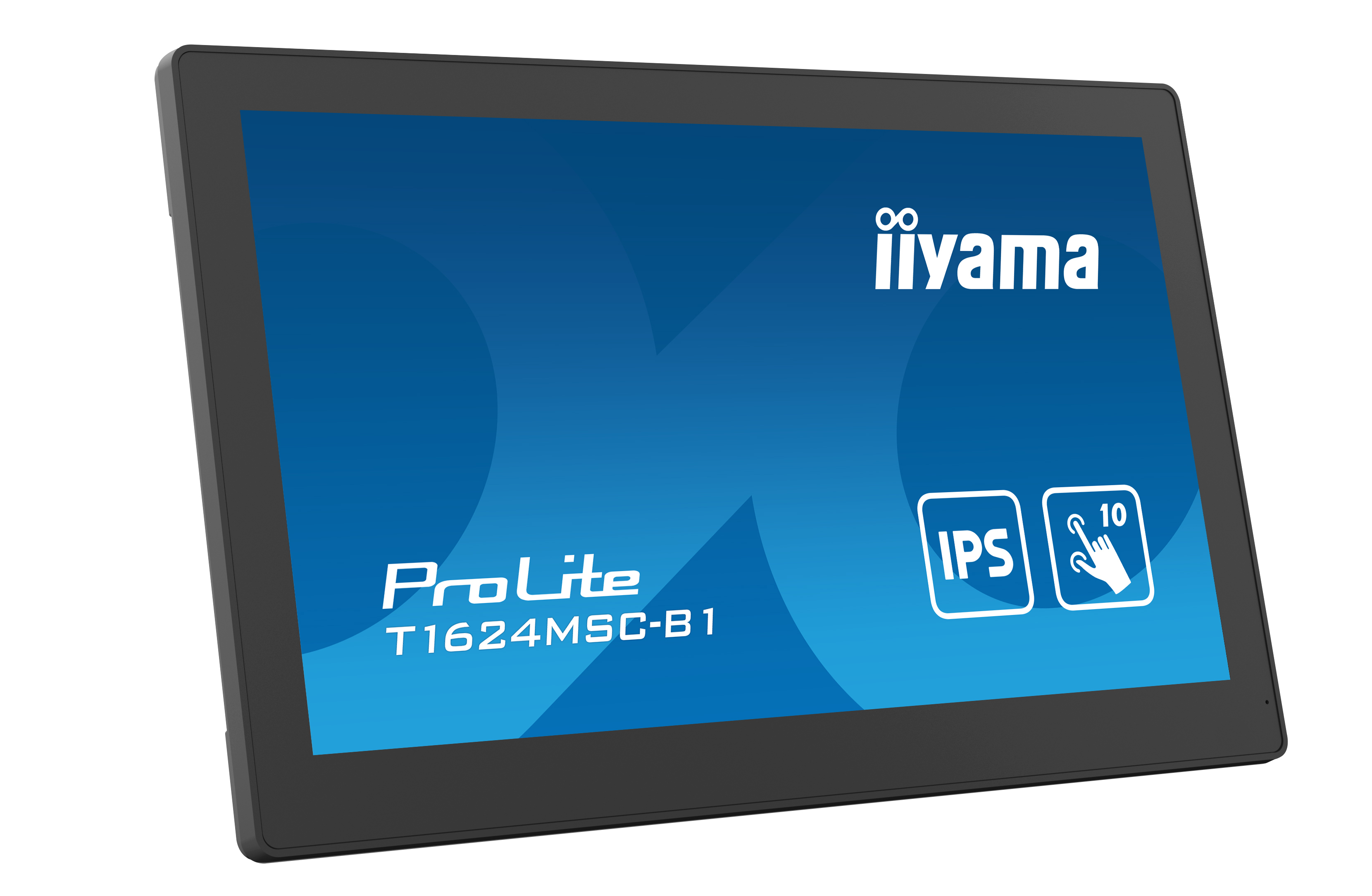

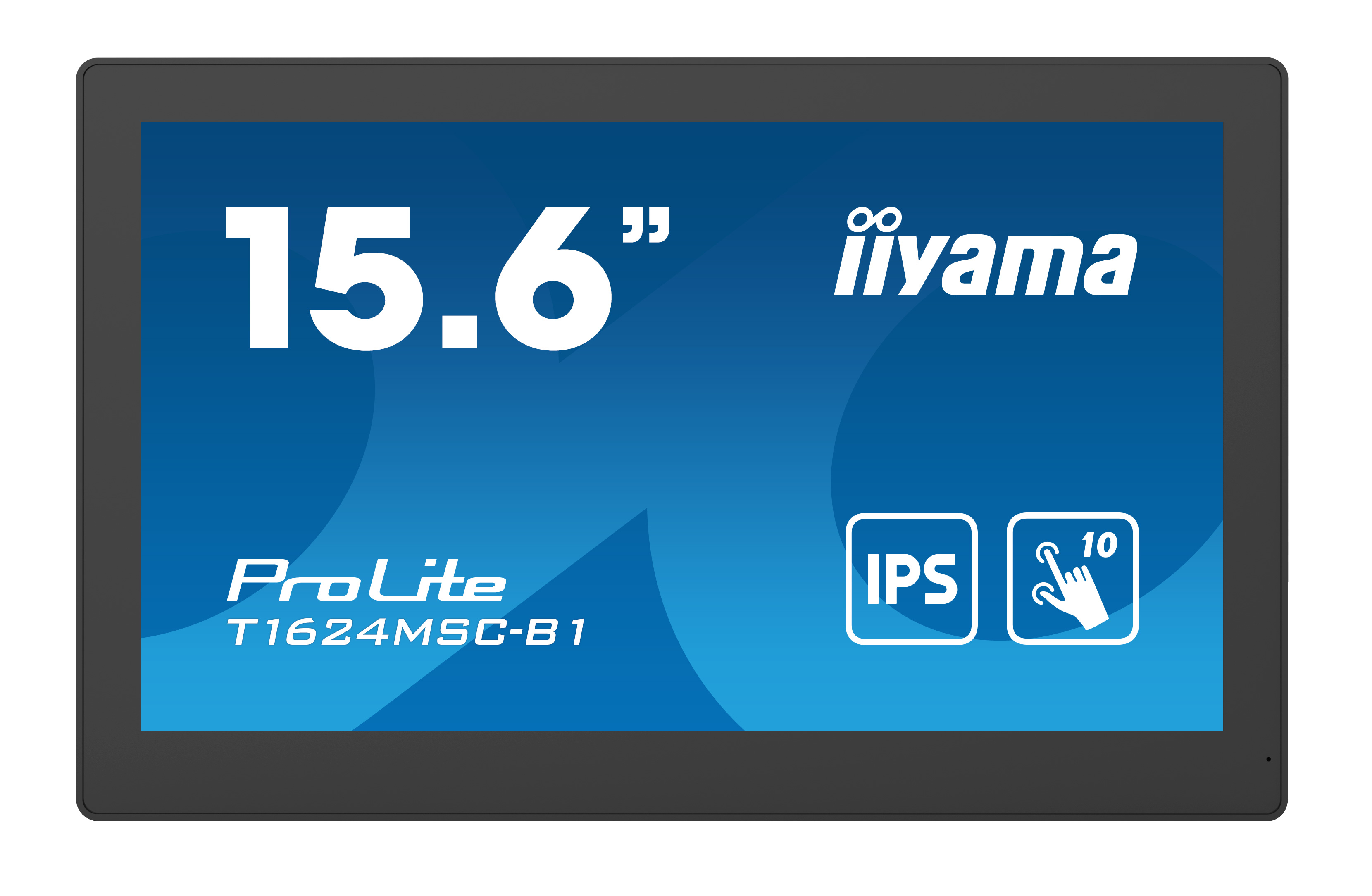

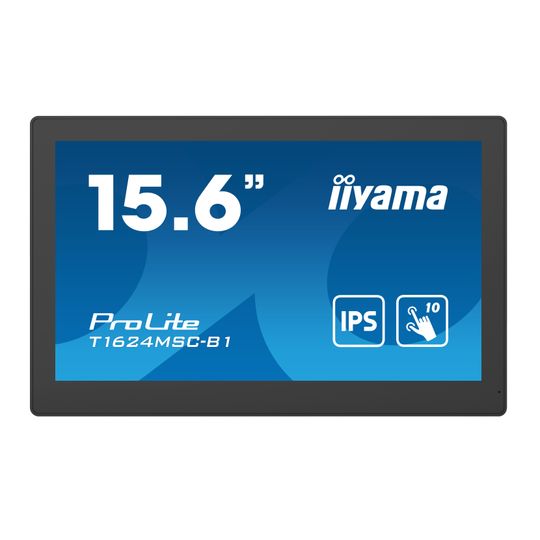

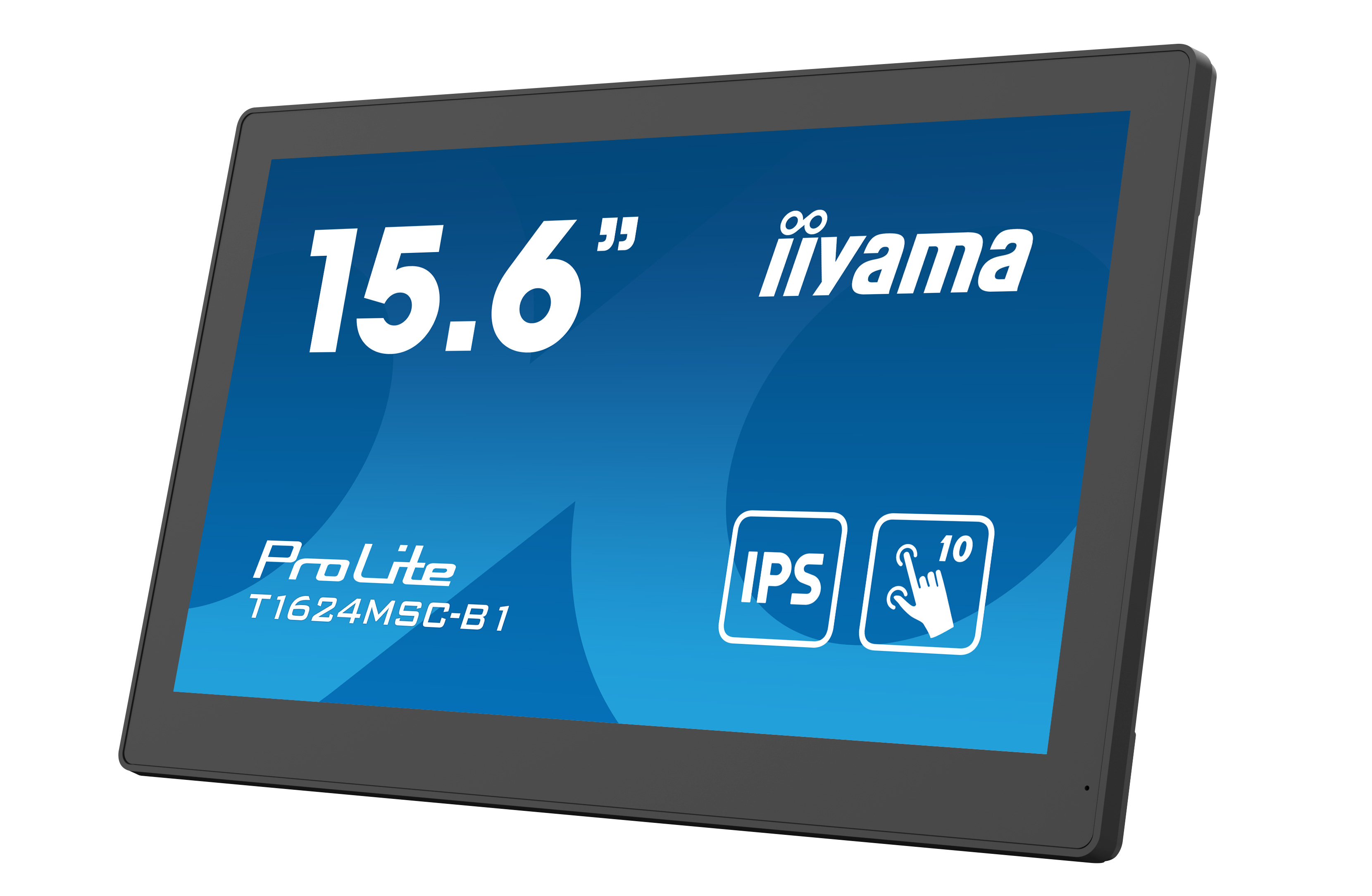

Skjár IIYAMA 15,6 T1624MSC-B1 HDMI+USB touch

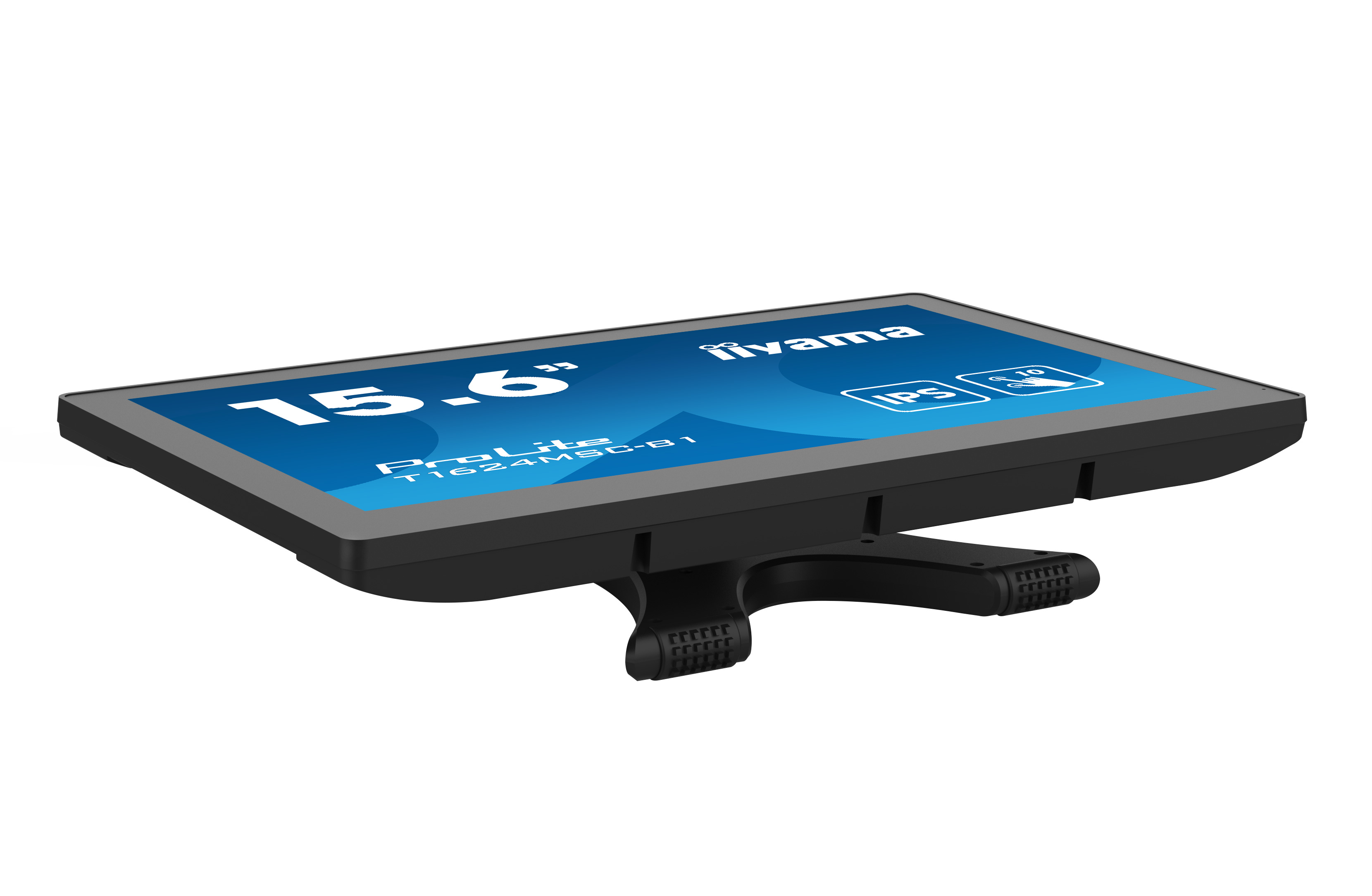

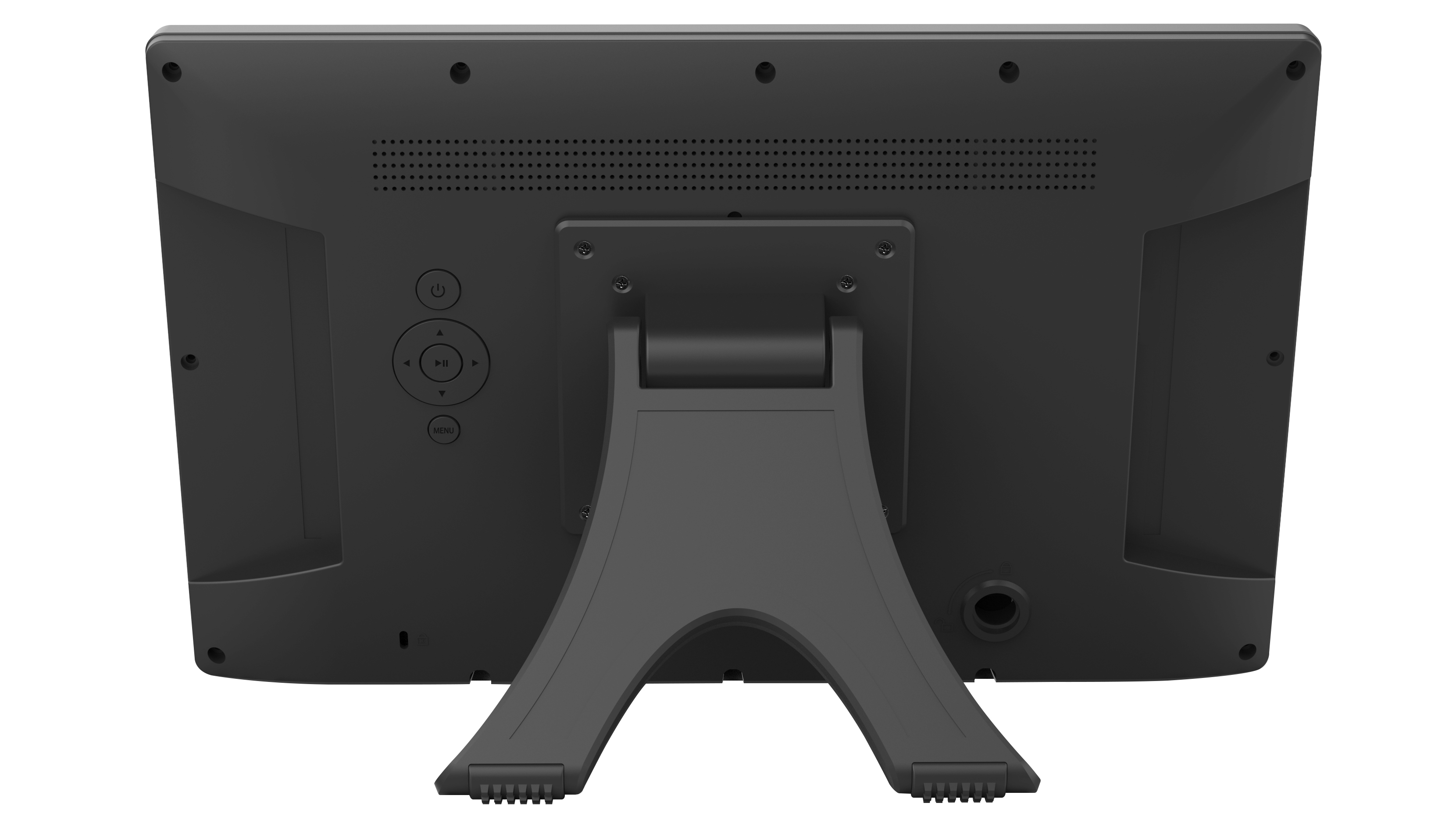

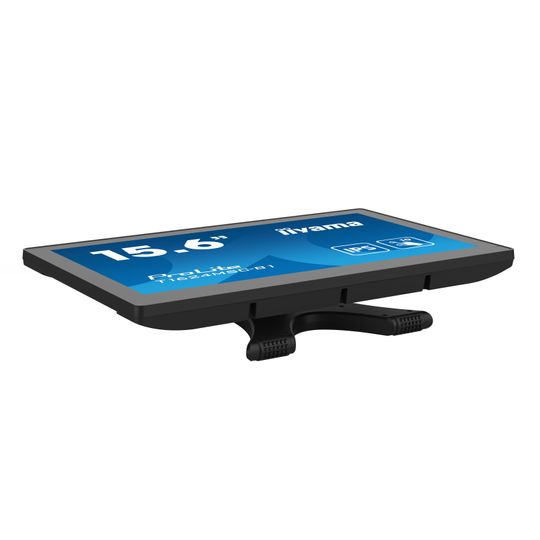

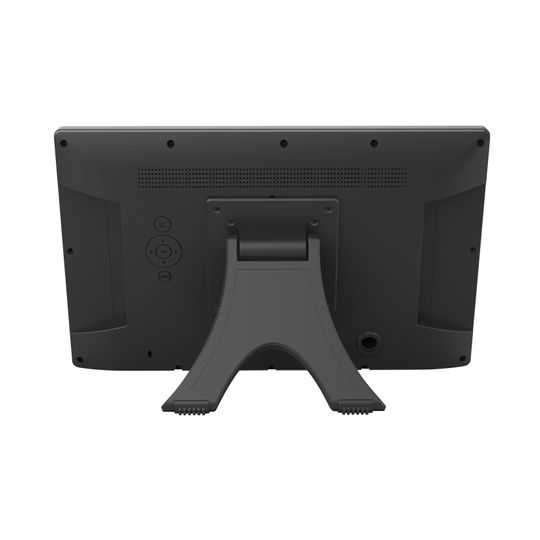

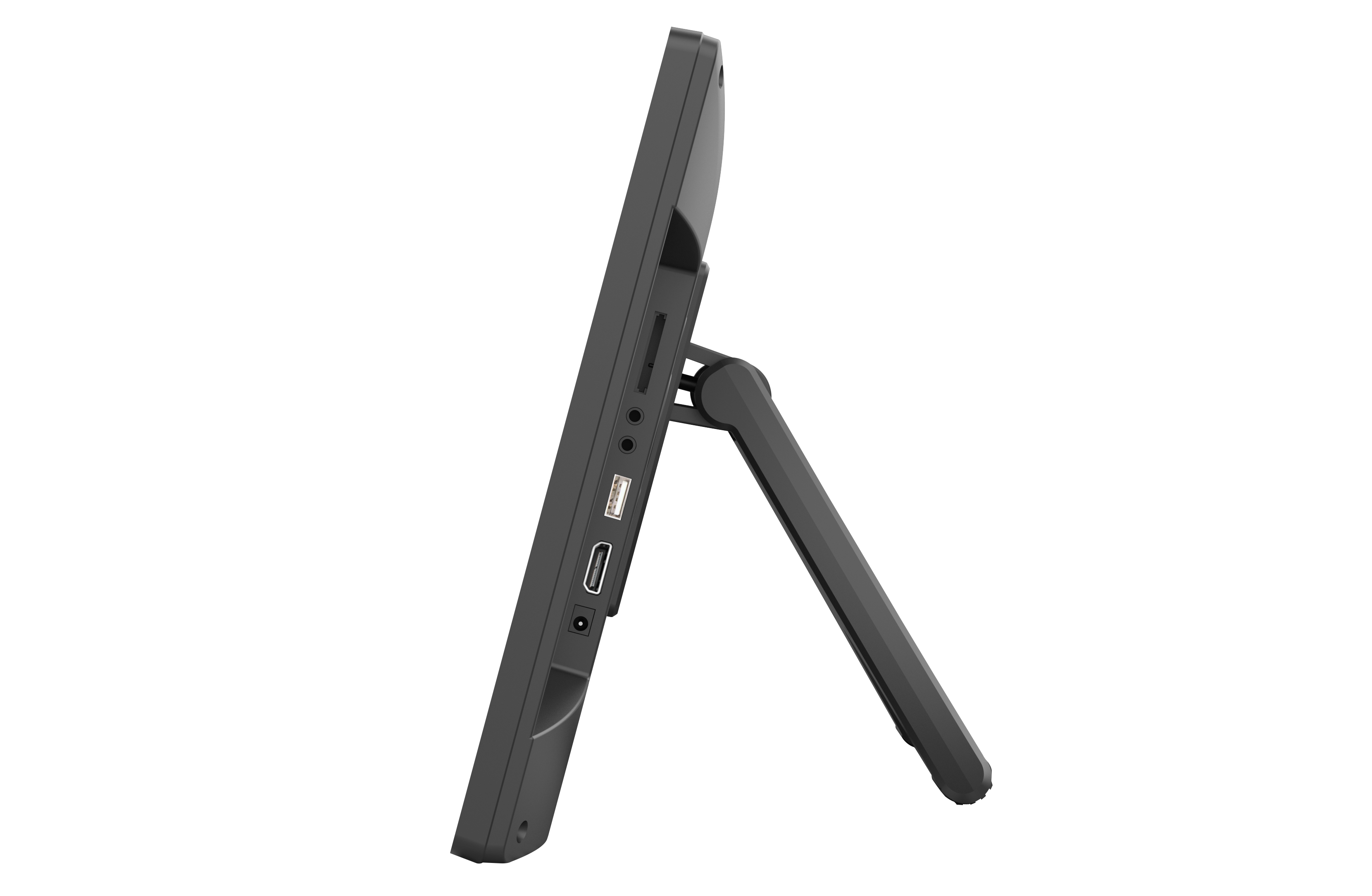

With 1920x1080 Full HD resolution and Projective Capacitive 10 point touch technology, the ProLite T1624MSC delivers seamless and accurate touch response. Featuring IPS Panel technology, it offers exceptional colour performance and wide viewing angles, making it an excellent choice for a vast array of demanding interactive applications. Users can benefit from its hinged stand allowing the monitor to lay down completely flat for use as a tablet. The T1624MSC comes equipped with several inputs and a SD card slot, as well as stereo speakers delivering good quality sound. An ideal screen for small interactive Digital Signage, InStore Retail and interactive presentations purposes.
| 15.6” Full HD PCAP 10pt touchscreen monitor with IPS panel technology, integrated media player and a hinged stand on the back iiyama T1624MSC-B1, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, LED, 25 ms, Black |
|
| Display | |
|---|---|
| Display diagonal: | 39.6 cm (15.6") |
| Display resolution: | 1920 x 1080 pixels |
| HD type: | Full HD |
| Native aspect ratio: | 16:9 |
| Display technology: | LED |
| Panel type: | IPS |
| LED backlight: | Yes |
| Touchscreen: | Yes |
| Touchscreen technology: | Projected capacitive system |
| Number of simultaneous touchpoints: | 10 |
| Display brightness (typical): | 450 cd/m² |
| Display brightness: | 385 cd/m² |
| Response time: | 25 ms |
| Response time measurement type: | GTG (Gray to Gray) |
| Screen shape: | Flat |
| Contrast ratio (typical): | 800:1 |
| Viewing angle, horizontal: | 170° |
| Viewing angle, vertical: | 170° |
| Display number of colours: | 16.7 million colours |
| Pixel pitch: | 0.17925 x 0.17925 mm |
| Horizontal scan range: | 30 - 84 kHz |
| Viewable size, horizontal: | 34.4 cm |
| Viewable size, vertical: | 19.4 cm |
| Display diagonal (metric): | 39.5 cm |
| Surface hardness: | 6H |
| Colour depth: | 8 bit |
| Performance | |
|---|---|
| Operating hours (hours/days): | 24/7 |
| Multimedia | |
|---|---|
| Number of speakers: | 2 |
| RMS rated power: | 4 W |
| Built-in speaker(s): | Yes |
| Built-in camera: | No |
| Design | |
|---|---|
| Product colour: | Black |
| Front bezel colour: | Black |
| Glass thickness: | 1.8 mm |
| Ports & interfaces | |
|---|---|
| USB version: | 2.0 |
| USB Touch port: | Yes |
| DVI port: | No |
| HDMI ports quantity: | 1 |
| Audio input: | Yes |
| PC Audio in: | Yes |
| Card reader integrated: | Yes |
| Compatible memory cards: | SD |
| Network | |
|---|---|
| Wi-Fi: | No |
| Ethernet LAN: | No |
| Ergonomics | |
|---|---|
| VESA mounting: | Yes |
| Panel mounting interface: | 100 x 100 mm |
| Power | |
|---|---|
| Energy efficiency class (SDR): | E |
| Energy consumption (SDR) per 1000 hours: | 11 kWh |
| Power consumption (typical): | 7 W |
| Power consumption (standby): | 0.5 W |
| Power consumption (off): | 0.1 W |
| AC adapter output voltage: | 12 V |
| Power supply type: | External |
| Energy efficiency scale: | A to G |
| Weight & dimensions | |
|---|---|
| Width (with stand): | 388 mm |
| Depth (with stand): | 159.5 mm |
| Height (with stand): | 245 mm |
| Weight (with stand): | 2.6 kg |
| Packaging content | |
|---|---|
| Cables included: | USB, HDMI |
| Quick start guide: | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates: | ErP |
| Other features | |
|---|---|
| AC adapter included: | Yes |
| User controls: | Photo, music, video, calendar, settings (OSD language, auto play, repeat mode, slideshow time, time, display mode, brightness, contrast, saturation, auto power, restore factory mode) |
| Brightness: | 385 cd/m² |
| Packaging content: | AC adapter |
| Built-in processor: | No |
| Active display area (W x H): | 344.16 x 193.59 mm |
| Touch method: | finger, glove (latex), capacitive stylus |
| USB ports quantity: | 2 |
| Weight: | 2.6 kg |
| Height: | 245 mm |
| Width: | 388 mm |
| Depth: | 159.5 mm |
| Control panel: | Power/Input select, navigation button (up, down, left, right, play/enter, pause), menu/exit |
| Compliance certificates: | CE, REACH, RoHS, UKCA, WEEE |
