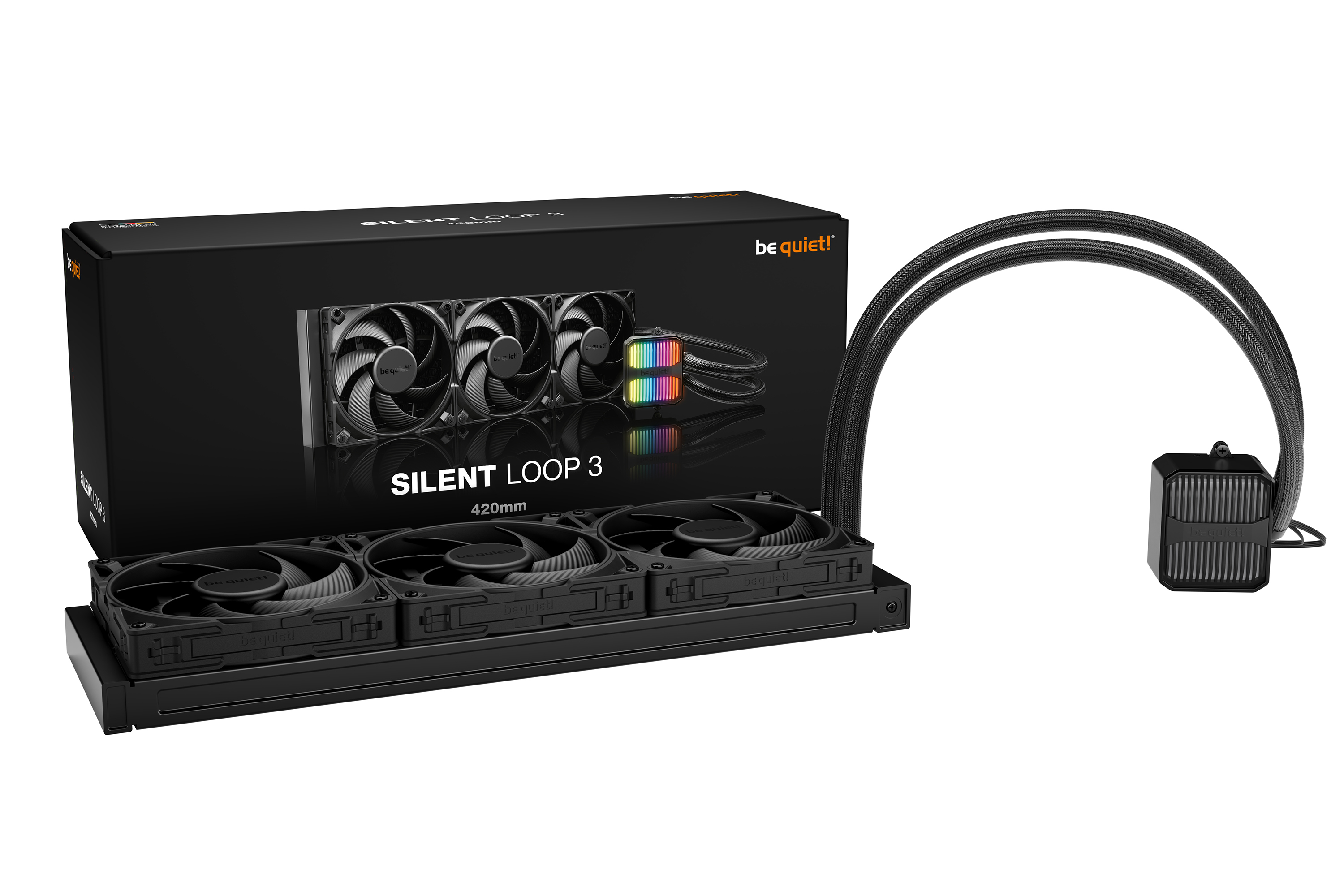

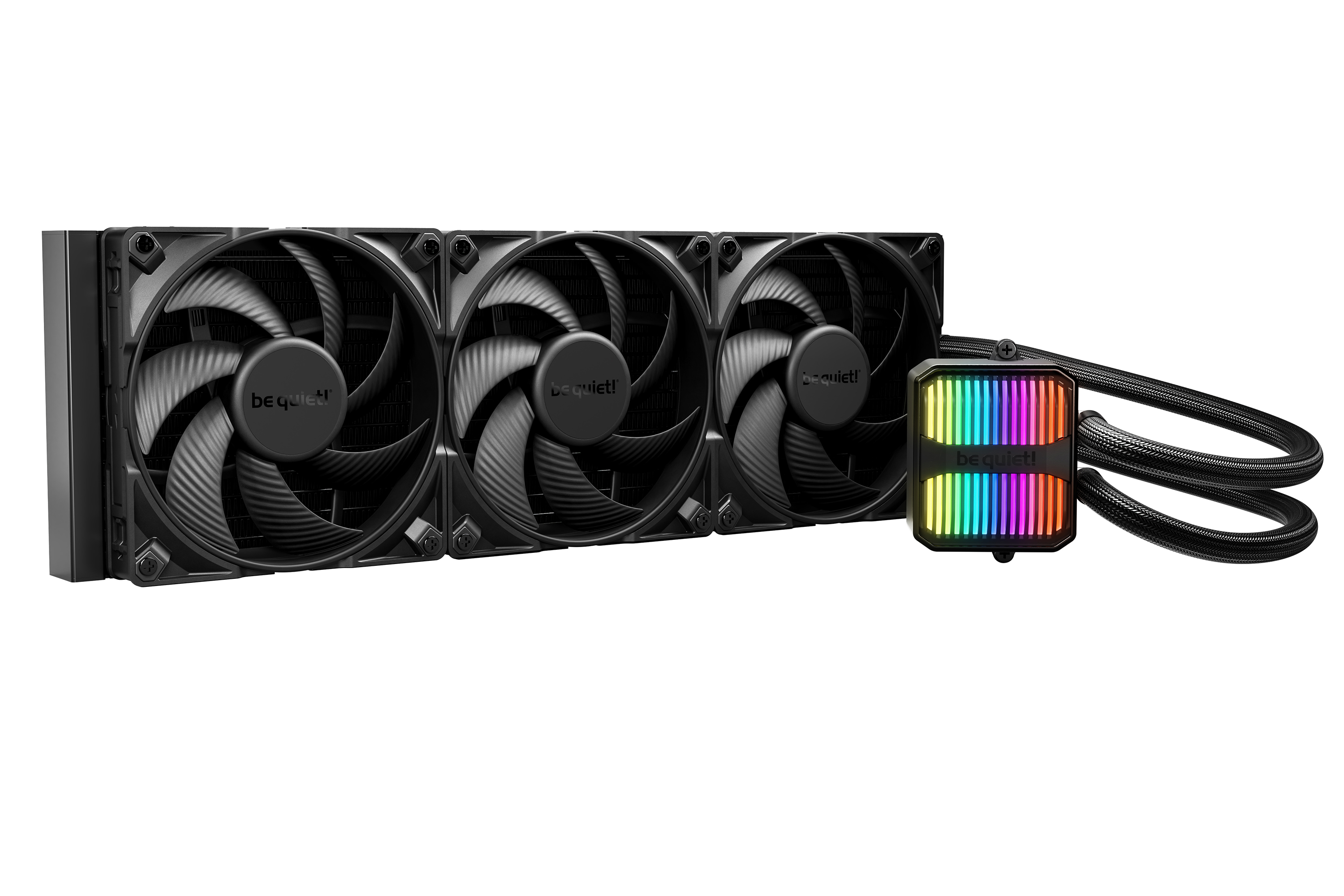

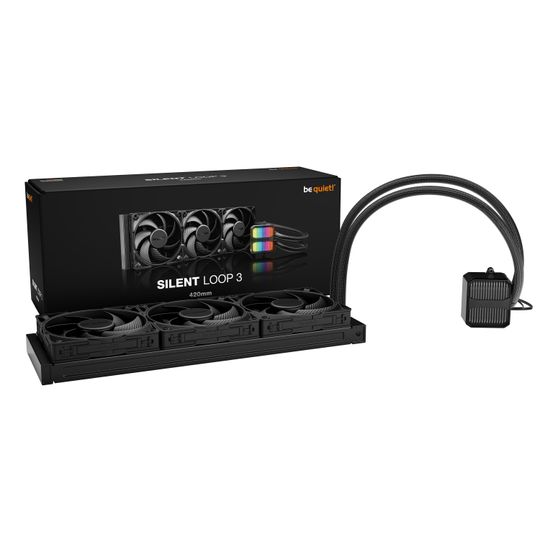

Vökvakæling BeQuiet! Silent Loop 3 420mm
Superior technology and cooling
Silent Loop 3 420mm is the virtually inaudible and incredibly high performing All-in-One water cooling unit with state-of-the-art technology. Silent Loop 3 is the epitome of a German engineered piece of hardware that embodies what be quiet! is associated with.
| 1700 - 3500 rpm, 475 x 140 x 52 mm, 93.5 x 80 x 56 mm, Silent Wings 4 140mm PWM be quiet! Silent Loop 3 420 mm, All-in-one liquid cooler, 14 cm, 133.2 m³/h, Black |
|
| Performance | |
|---|---|
| Suitable location: | Processor |
| Type: | All-in-one liquid cooler |
| Fan diameter: | 14 cm |
| Supported processor sockets: | Intel LGA1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket TR5 |
| Noise level (low speed): | 19.4 dB |
| Noise level (high speed): | 34.3 dB |
| Maximum airflow: | 78.4 cfm |
| Airflow: | 133.2 m³/h |
| Maximum air pressure: | 2.36 mmH2O |
| Pulse-width modulation (PWM) support: | Yes |
| Bearing type: | Fluid Dynamic Bearing (FDB) |
| Pump connector: | 4-pin |
| Quantity per pack: | 1 pc(s) |
| Pump motor speed: | 3500 RPM |
| Pump motor speed (min): | 1700 RPM |
| Pump motor speed (max): | 3500 RPM |

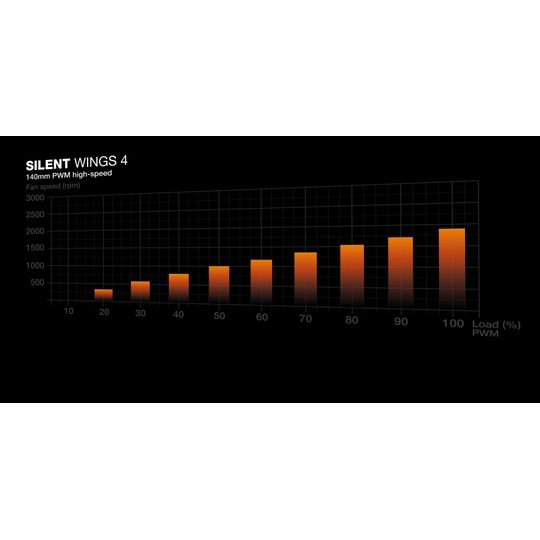

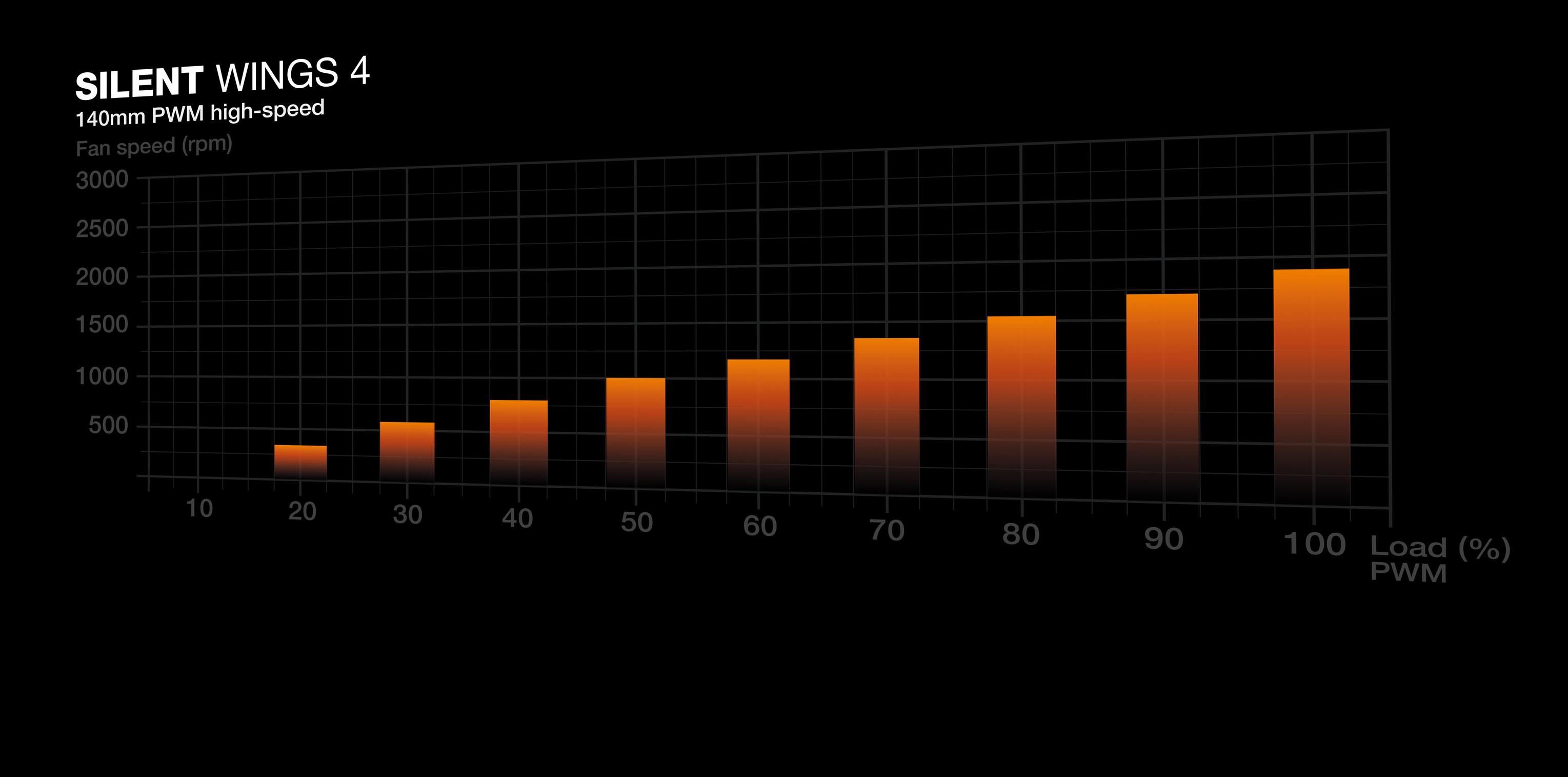

| Fan speed (max): | 1900 RPM |
| Fan's mean time to failure (MTTF): | 300000 h |
| Design | |
|---|---|
| Product colour: | Black |

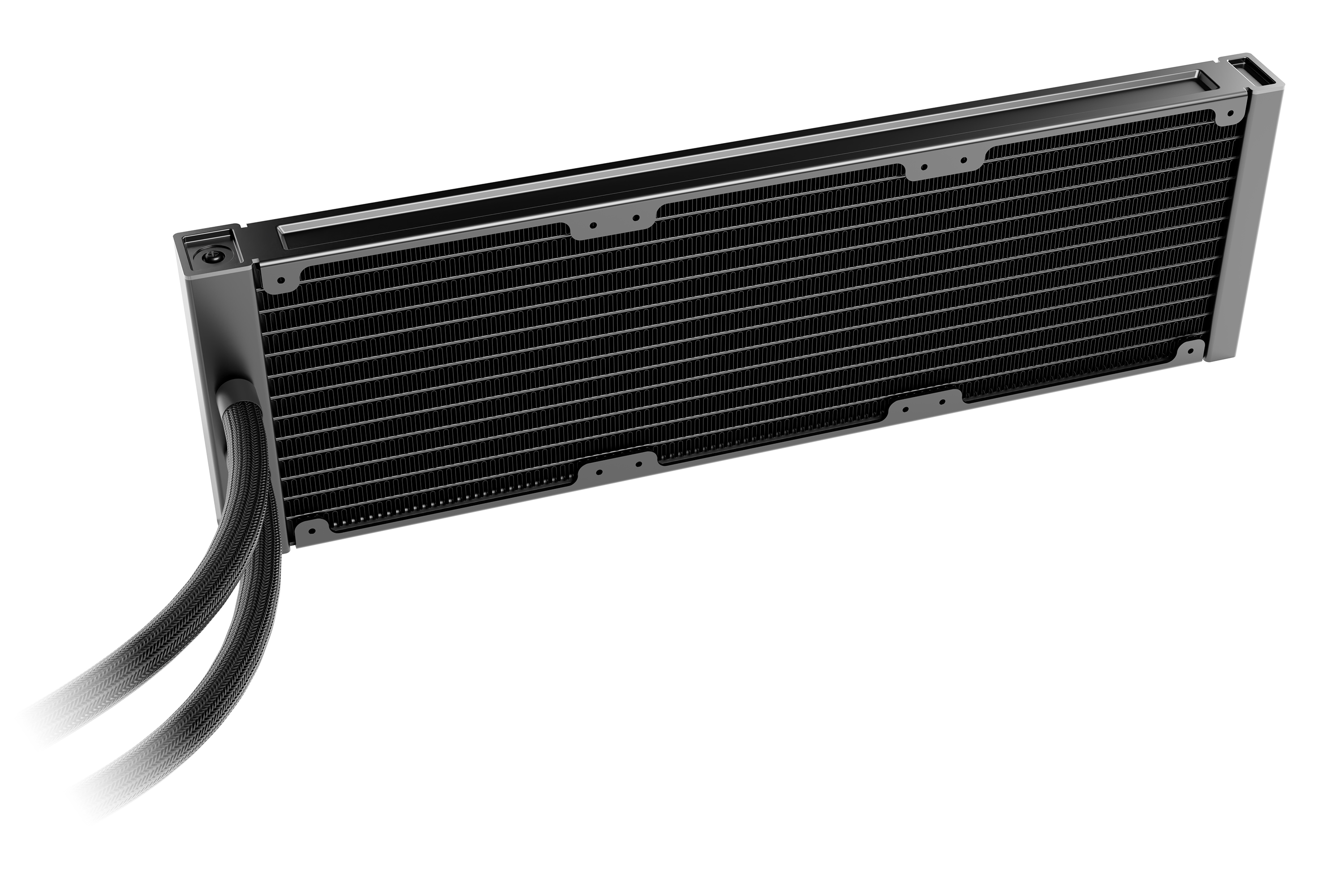

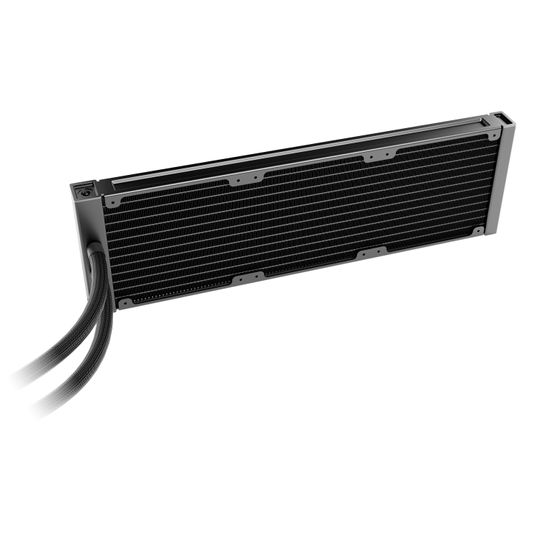

| Radiator material: | Aluminum |
| Base plate material: | Copper |

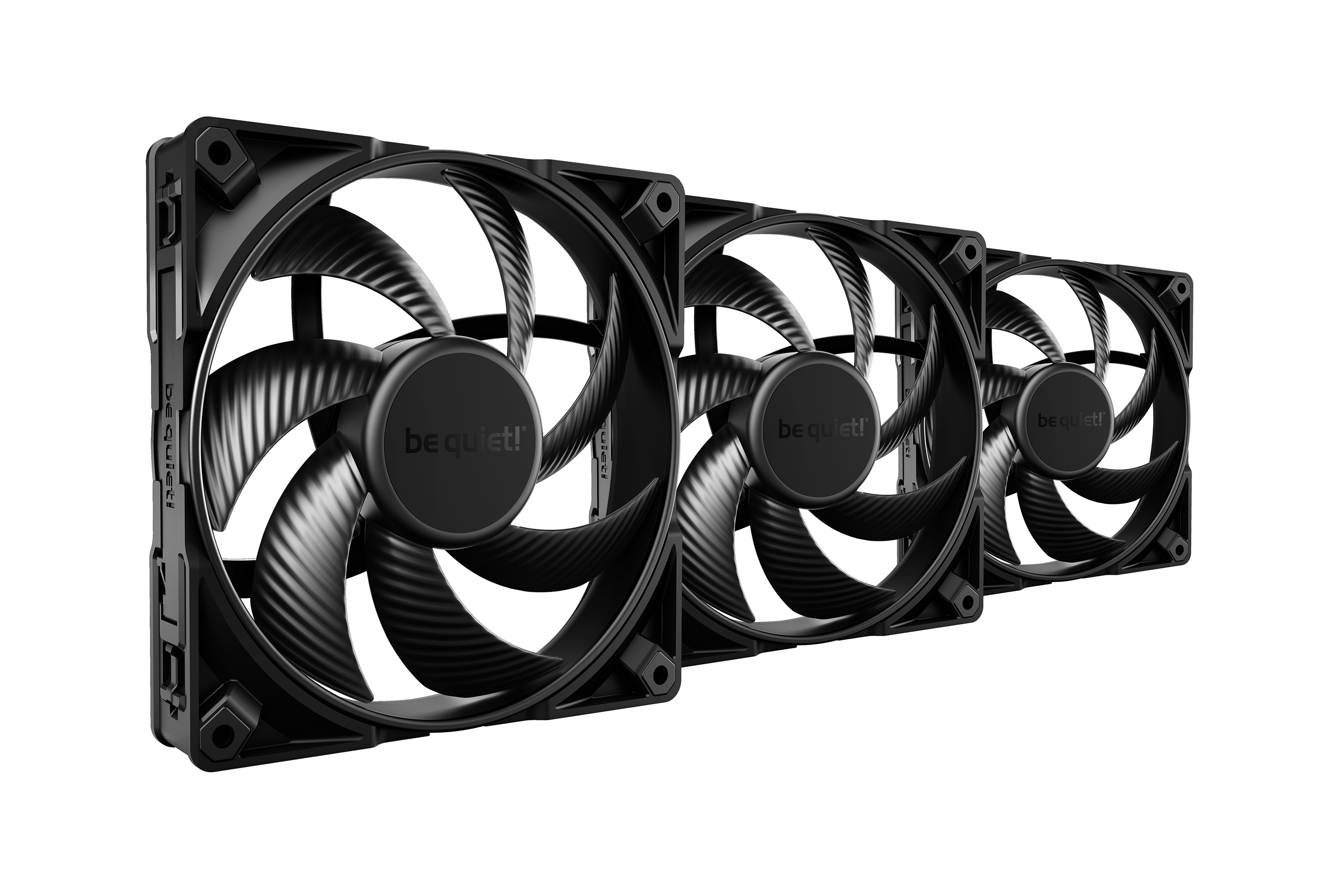

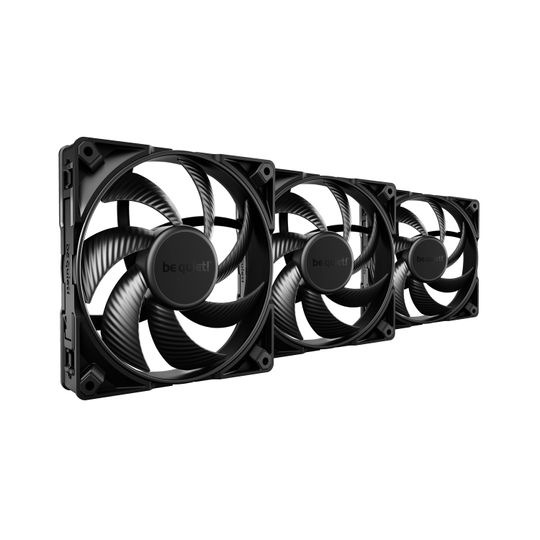

| Number of fans: | 3 fan(s) |
| Illumination LED: | Yes |
| Illumination colour: | Multi |
| LED connector type: | 3-pin |
| Fan connector: | 4-pin |
| Power | |
|---|---|
| Fan power consumption: | 3.6 W |
| LED voltage: | 5 V |
| Fan voltage: | 12 V |
| Fan current: | 0.3 A |

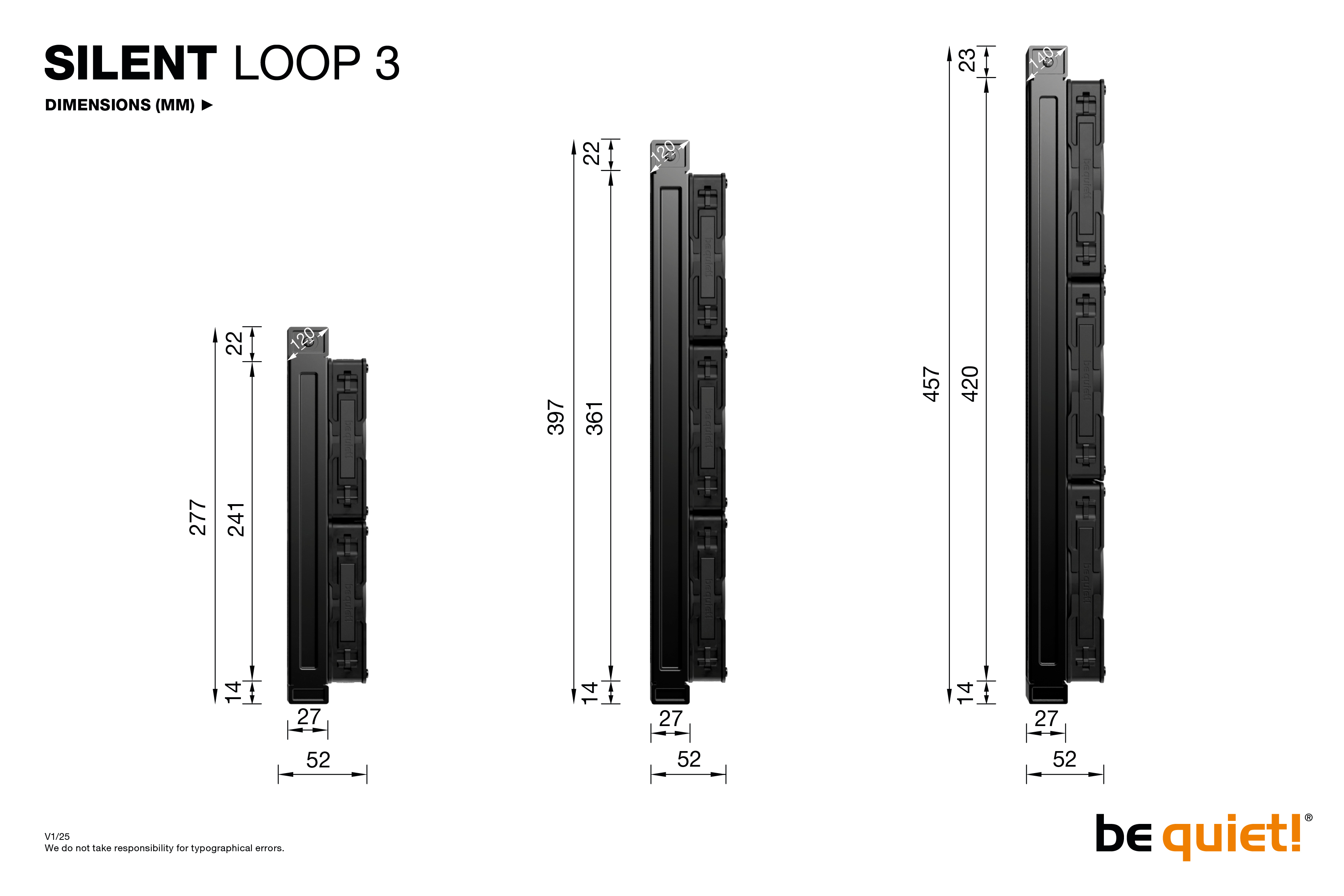

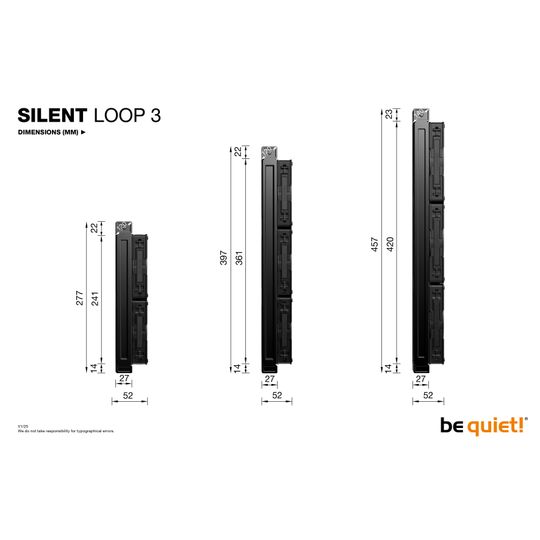

| Weight & dimensions | |
|---|---|
| Width: | 140 mm |
| Radiator width: | 14 cm |
| Radiator depth: | 45.7 cm |
| Radiator height: | 2.7 cm |
| Depth: | 52 mm |
| Tube length: | 40 cm |
| Waterblock width: | 8 cm |
| Waterblock depth: | 5.6 cm |
| Waterblock height: | 9.35 cm |
| Height: | 475 mm |
| Weight: | 2.01 kg |
| Fan dimensions (W x D x H): | 120 x 120 x 25 mm |
| Cable length: | 0.5 m |
| Package width: | 204 mm |
| Package depth: | 499 mm |
| Package height: | 154 mm |
| Package weight: | 3.3 kg |
| Technical details | |
|---|---|
| Sustainability certificates: | Triman |
| Warranty period: | 3 year(s) |
| Compliance certificates: | CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |

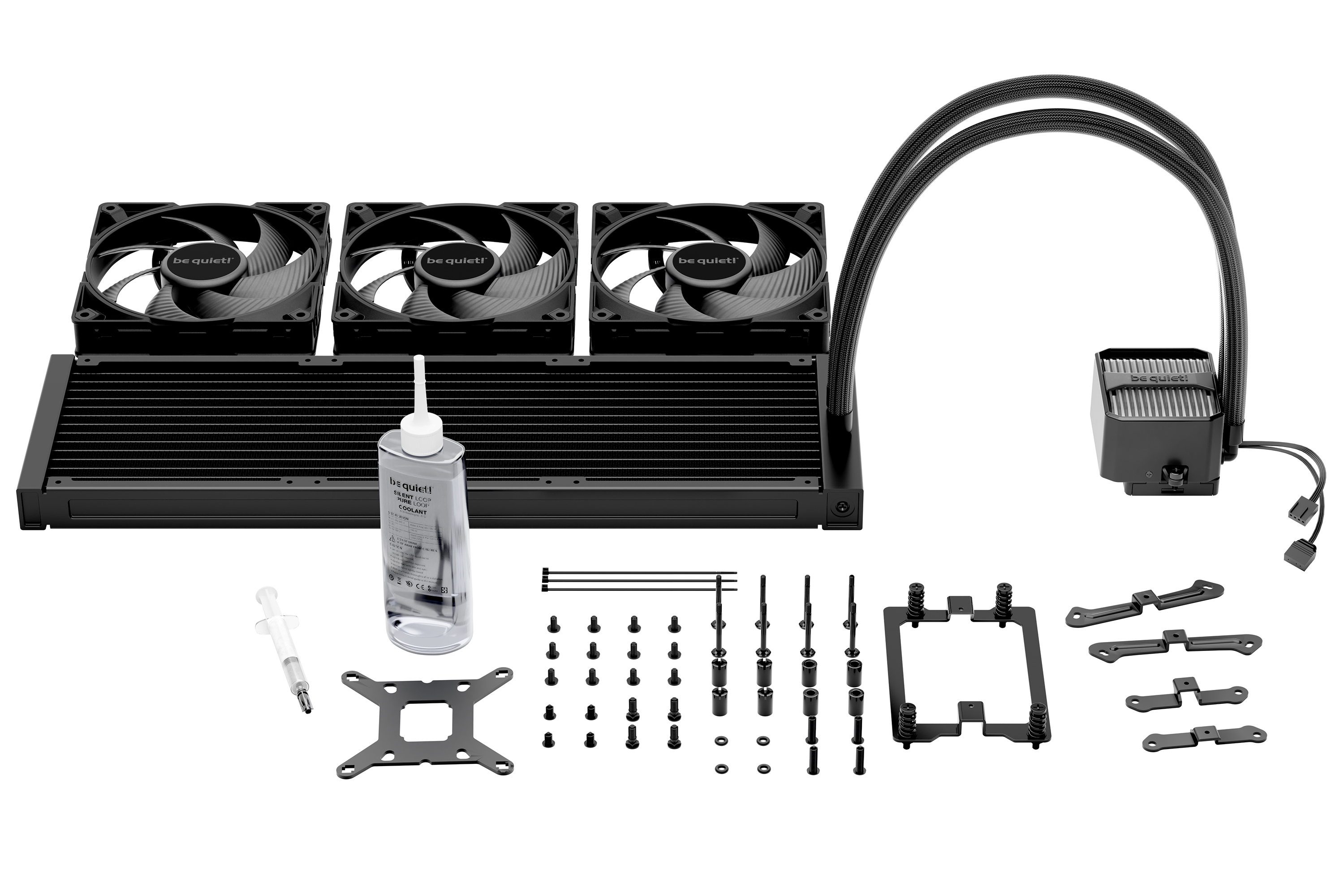

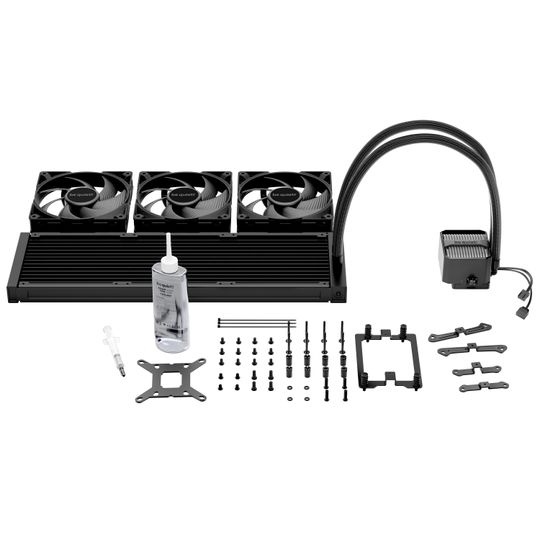

| Packaging content | |
|---|---|
| Package type: | Box |
| Mounting kit: | Yes |
| Screws included: | Yes |
| Manual: | Yes |
| CPU bracket(s): | Yes |
| Other features | |
|---|---|
| Thermal grease: | Yes |
| Logistics data | |
|---|---|
| Products per shipping (inner) case: | 4 pc(s) |
| Shipping (inner) case width: | 42.4 cm |
| Shipping (inner) case length: | 51.1 cm |
| Shipping (inner) case height: | 33.6 cm |
| Shipping (inner) case gross weight: | 14.8 kg |
