APC Back-UPS 950VA, 230V, AVR, 4 Schuko outlets

Features

• Automatic Voltage Regulation (AVR) - Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
• Dataline surge protection - Provides protection of connected equipment from power surges on the data lines.
• LED Indicators - Provide easy-to-read status of the unit and utility power conditions.
• Audible alarms - Provides notification of changing utility power and UPS power conditions
• Safety-agency approved - Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Battery-protected and surge-only outlets - Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
• Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
• Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
• Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Surge only outlets - Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
• Battery and surge protected outlets - Back up and protect your hardware and data during power outages, surges and spikes .

Specifications

• Output
  • Max Configurable Power (Watts): 520 Watts / 950VA
  • Output Frequency (sync to mains): 50/60 Hz +/- 1 Hz Sync to mains
  • Topology: Line interactive
  • Waveform type: Stepped approximation to a sinewave
  • Transfer Time: 6 ms typical : 10 ms maximum
• Input
  • Input frequency: 50/60 Hz +/- 5 Hz Auto-sensing
  • Input voltage range for main operations: 140 - 300V
  • Number of Power Cords: 1
  • Input Power Factor at Full Load: 0.54
• Batteries & Runtime
  • Battery type: Lead-acid battery
  • Typical recharge time: 8hour(s)
  • Nominal Battery Voltage: 12 V
  • Replacement Battery: RBC17
  • Expected Battery Life (years): 3 - 5
  • Battery Volt-Amp-Hour Capacity: 108

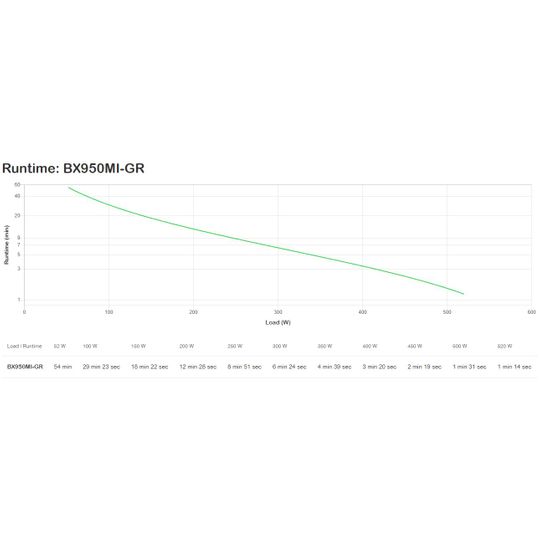

  • Runtime: View Runtime Graph

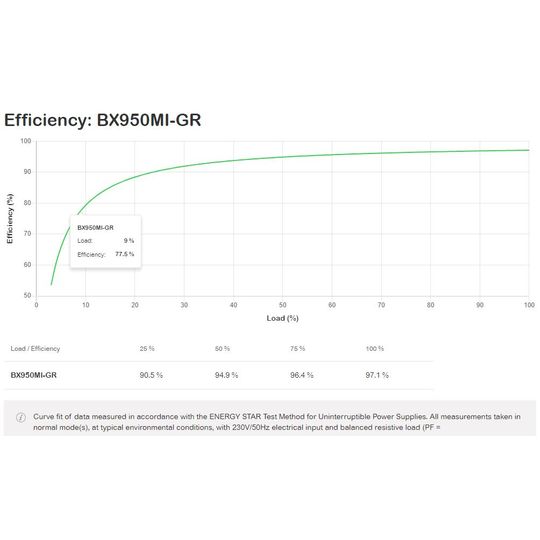

  • Efficiency: View Efficiency Graph
• Communications & Management
  • Interface Port(s): USB
  • Control panel: LED Status display with on line : on battery
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm
• Surge Protection and Filtering
  • Surge energy rating: 273Joules
  • Data Line Protection: RJ45 10/100/1000 Base-T Ethernet protection
• Physical
  • Maximum Height: 160MM, 16.0CM
  • Maximum Width: 120MM, 12.0CM
  • Maximum Depth: 355MM, 35.5CM
  • Net Weight: 6.1KG
  • Shipping weight: 6.6KG
  • Shipping Height: 250MM, 25.0CM
  • Shipping Width: 197MM, 19.7CM
  • Shipping Depth: 430MM, 43.0CM
  • Color: Black
  • SCC Codes: 10731304410857
• Environmental
  • Operating Temperature: 0 - 40 °C
  • Operating Relative Humidity: 0 - 95 (Non-condensing) %
  • Operating Elevation: 0 - 3000meters
  • Storage Temperature: -15 - 40 °C
  • Storage Relative Humidity: 0 - 95 (Non-condensing) %
  • Storage Elevation: 0 - 3000meters
  • Audible noise at 1 meter from surface of unit: 40.0dBA
  • Protection Class: IP20
• Conformance
  • Approvals: CB , CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2
  • Equipment protection policy: Lifetime : 50000 euros
  • RoHS Compliant
