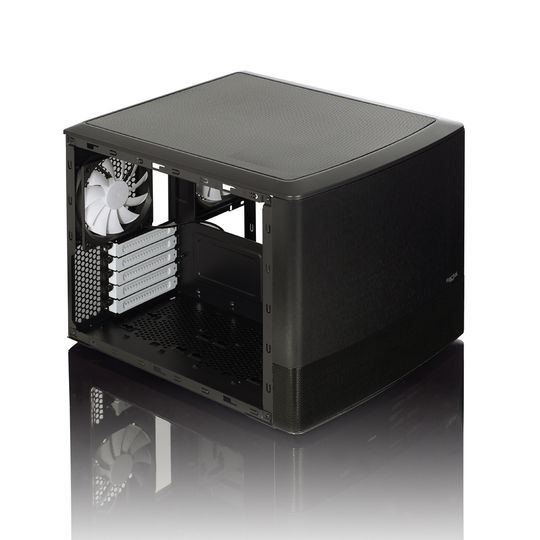

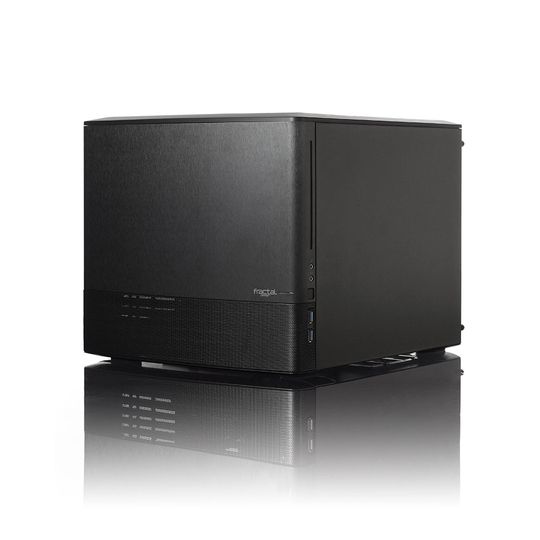

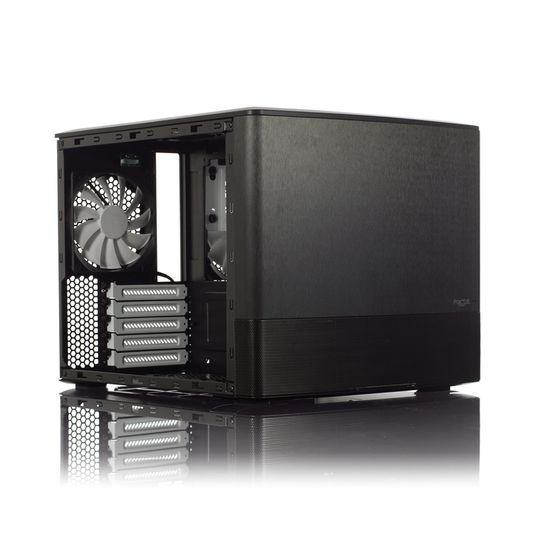

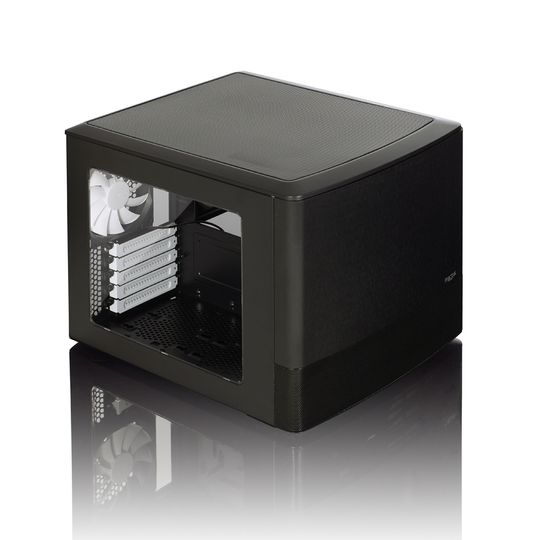

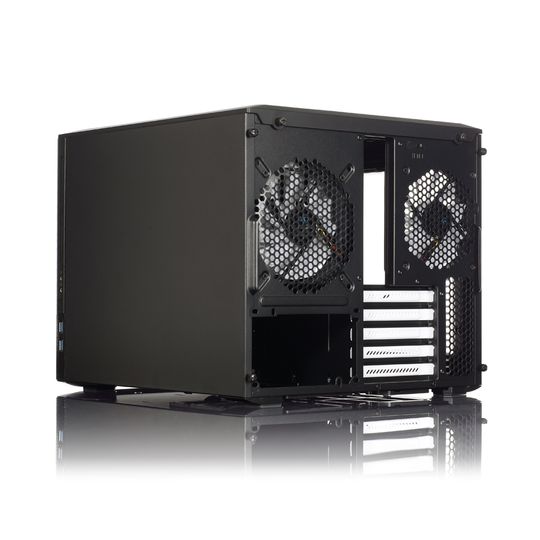

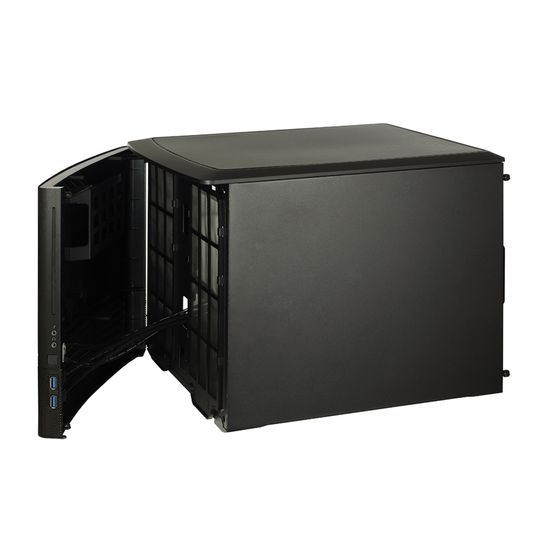

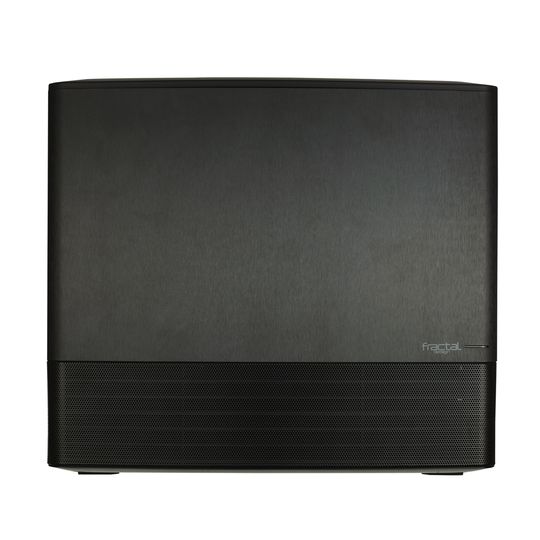

Tölvukassi Fractal Design Node 804 mATX svartur

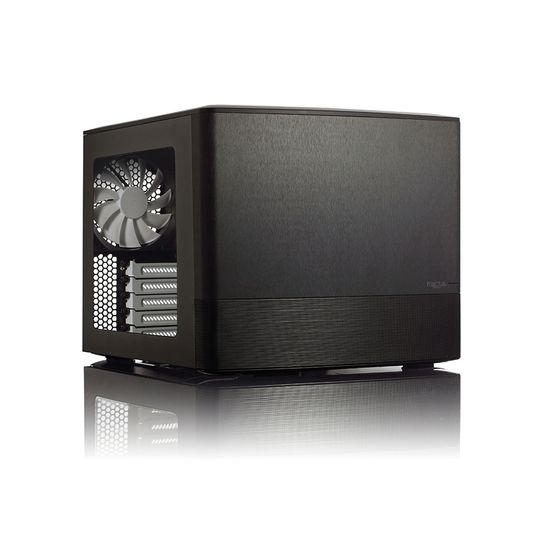

The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design.

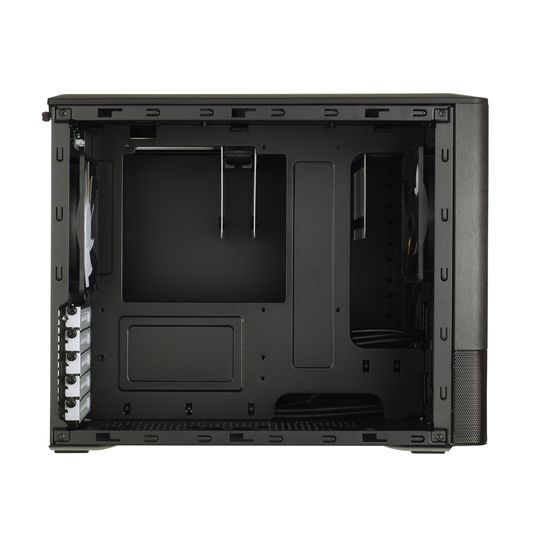

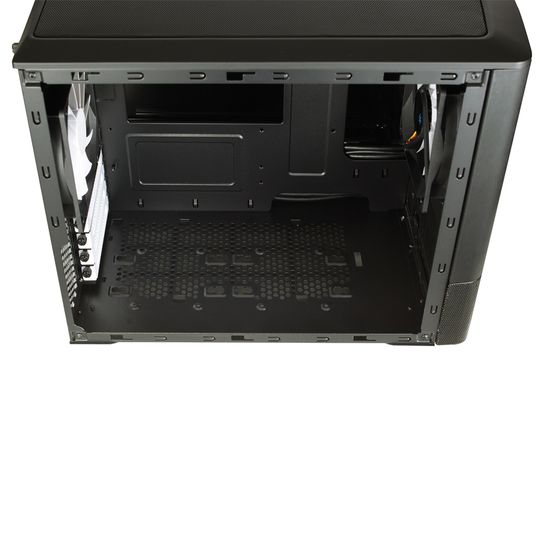

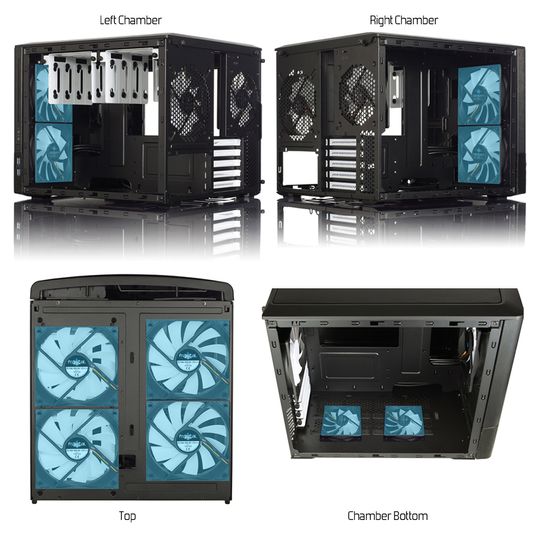

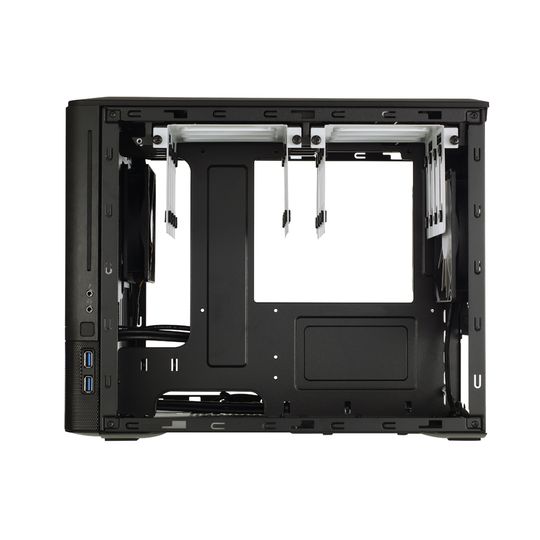

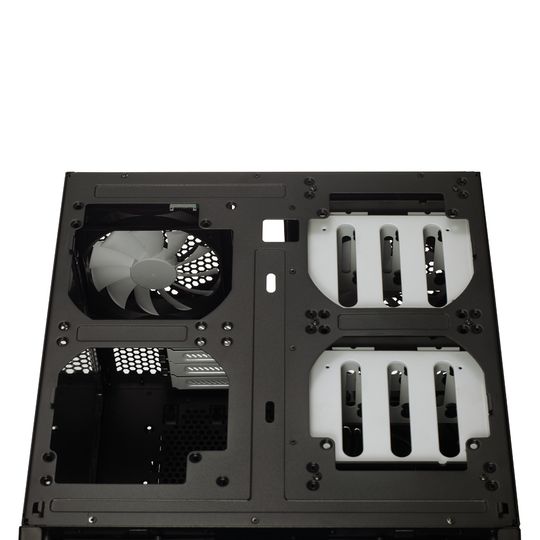

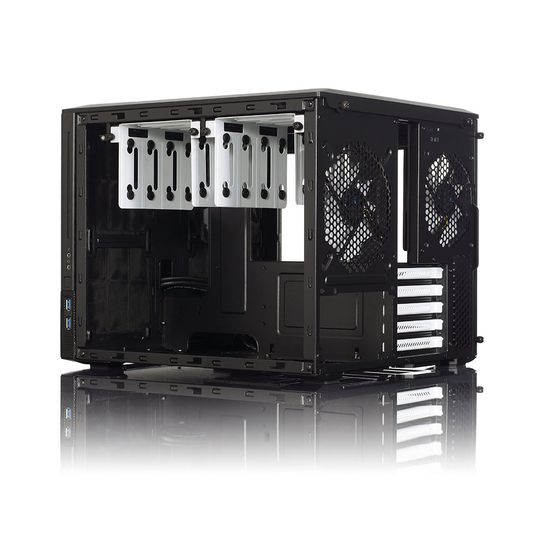

The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.

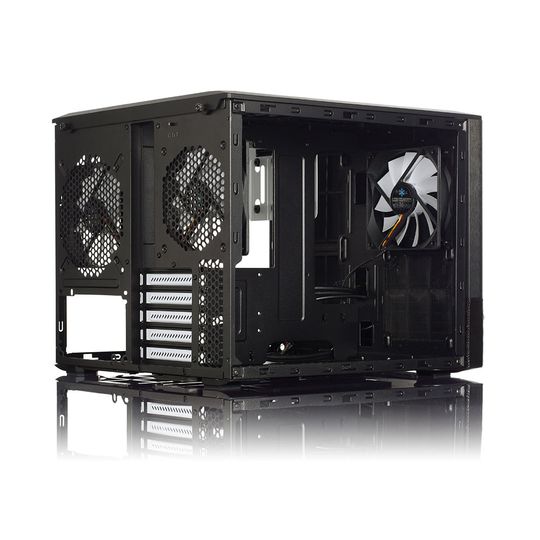

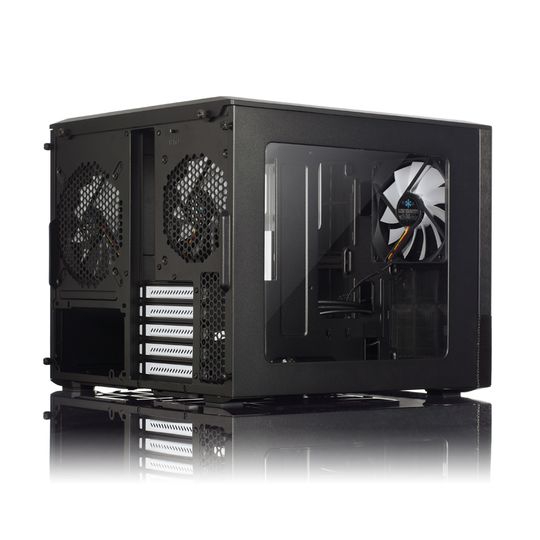

The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed.

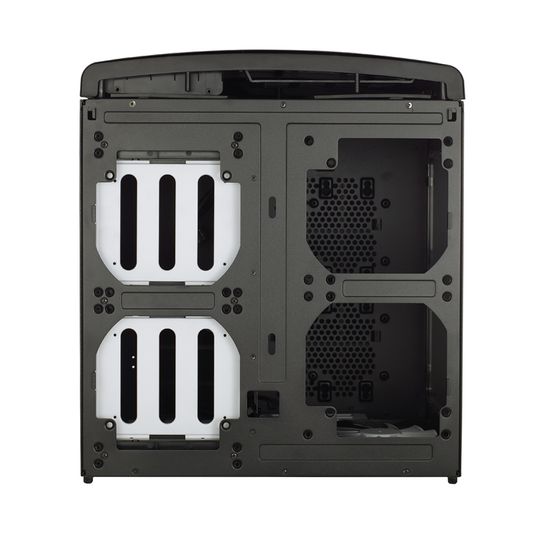

Featuring plenty of options for placing water cooling components, tall heat sinks and hard drives.
The flexibility of this case really gives the users the possibility to create their optimal system build.
| Micro ATX/Mini ITX, 3.5" x 8, 2.5" x 2, 3.5"/2.5" x 2, USB 3.0 Fractal Design NODE 804, Cube, PC, Black, micro ATX, Mini-ATX, HDD, Power, 16 cm |
|
| Design | |
|---|---|
| Form factor: | Cube |
| Type: | PC |
| Product colour: | Black |
| Supported motherboard form factors: | micro ATX, Mini-ATX |
| Number of 3.5" bays: | 10 |
| Number of 2.5" bays: | 2 |
| Number of expansion slots: | 5 |

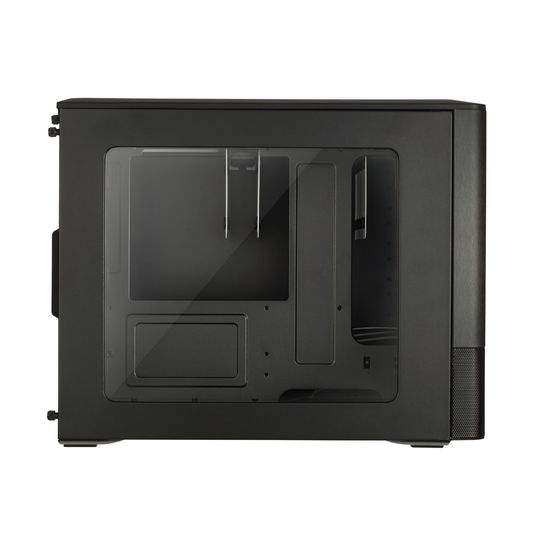

| Side window: | Yes |

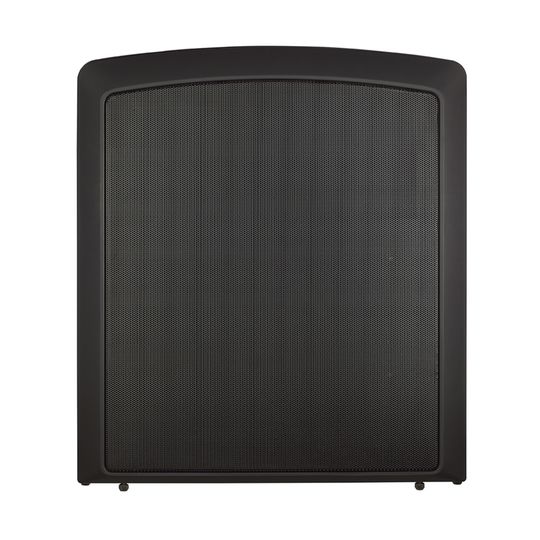

| Anti-dust filter: | Yes |
| Cable management: | Yes |
| LED indicators: | HDD, Power |

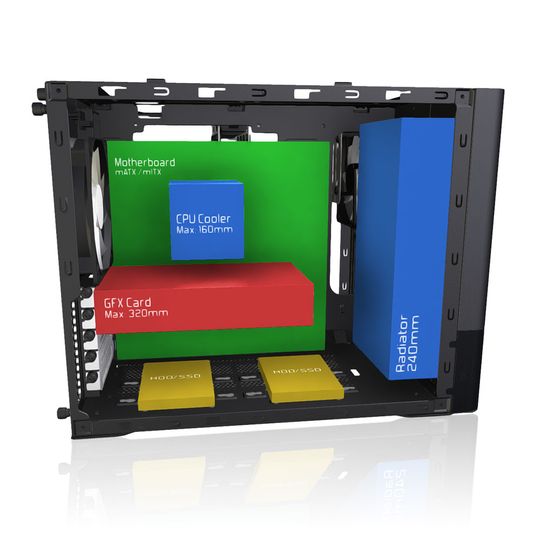

| Maximum CPU cooler height: | 16 cm |
| Maximum graphics card length: | 32 cm |
| Maximum PSU length: | 26 cm |
| Power supply | |
|---|---|
| Power supply included: | No |

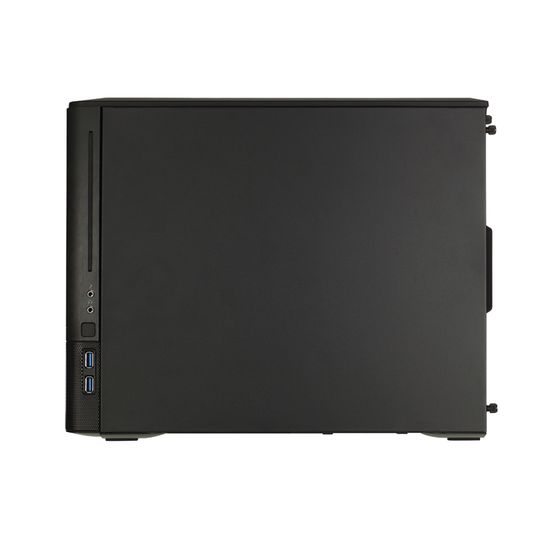

| Ports & interfaces | |
|---|---|
| Audio input: | Yes |
| Audio output: | Yes |

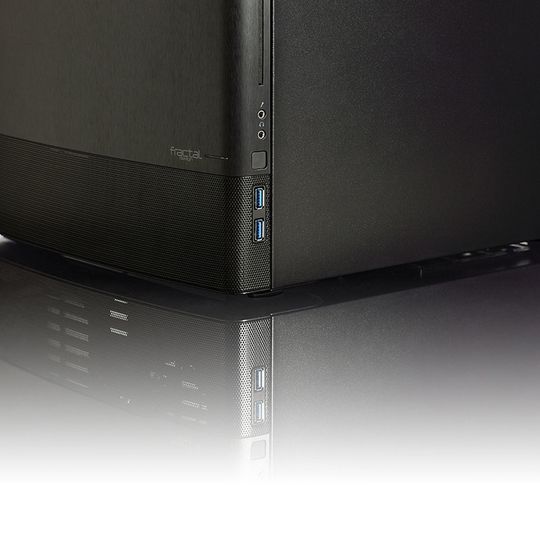

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Cooling | |
|---|---|
| Front fans installed: | 1x 120 mm |
| Number of front fans supported (max): | 4 |
| Front fans diameters supported: | 120 mm |

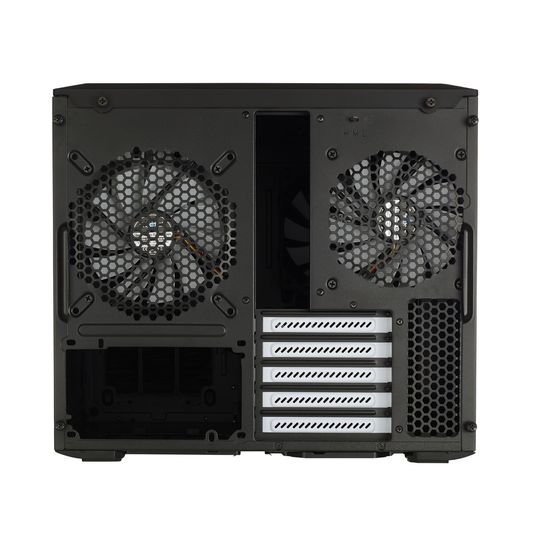

| Rear fans installed: | 2x 120 mm |
| Number of rear fans supported (max): | 2 |
| Rear fans diameters supported: | 120,140 mm |
| Number of top fans supported (max): | 4 |
| Top fans diameters supported: | 120,140 mm |
| Liquid cooling capability: | Yes |
| Front radiator sizes supported: | 240 mm |
| Top radiator sizes supported: | 240,280 mm |
| Storage | |
|---|---|
| Supported HDD sizes: | 2.5,3.5" |
| Packaging content | |
|---|---|
| Manual: | Yes |
| Weight & dimensions | |
|---|---|
| Width: | 344 mm |
| Depth: | 389 mm |
| Height: | 307 mm |
| Weight: | 6 kg |
| Packaging data | |
|---|---|
| Package width: | 370 mm |
| Package depth: | 412 mm |
| Package height: | 468 mm |
| Package weight: | 7.7 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code: | 84733080 |
