Cooler Master - SILENCIO S600 SILENCE HAS A SEQUEL

• Silencio Design
• Silencio Technology
• Sound Dampening Material
• Sound-Dampened Steel
• Top & Front Ventilation
• Reversible Steel Door

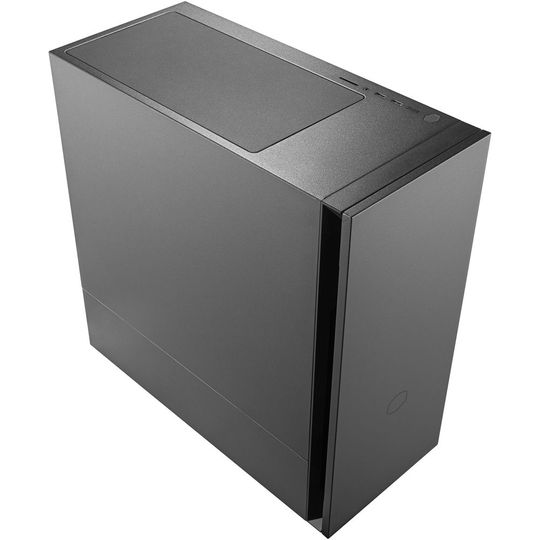

SILENCIO DESIGN
The Silencio’s minimalistic design cloaks its complexity. Design elements fine-tuned in form and function result in minimized noise and efficiently maintained system temperatures.

SILENCIO TECHNOLOGY
Behind the outer panels are pieces of meticulously placed sound dampening material. The development of the Silencio was driven by Sorama’s Cam64—this allowed for the entire sound spectrum to be visually analyzed by source, resonance pattern, and frequency.

With the identification of peaks within certain frequency ranges, fine-tuning the Silencio for the dispersion of resonance was made possible, reducing the prominence of noise generated by system components. Every detail in design optimized the Silencio for thermal efficiency and silence, from the type of material used to its placement.

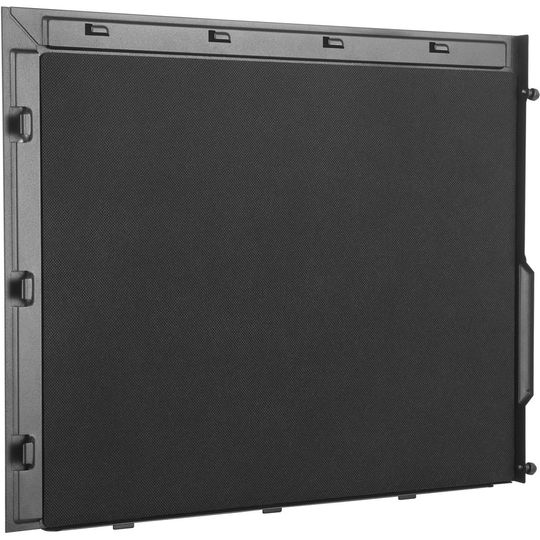

SOUND DAMPENING MATERIAL
The Silencio utilizes a combination of sound dampening materials, from thick soft foam to heavy mass-loaded vinyl, to precisely counter prominent frequencies.

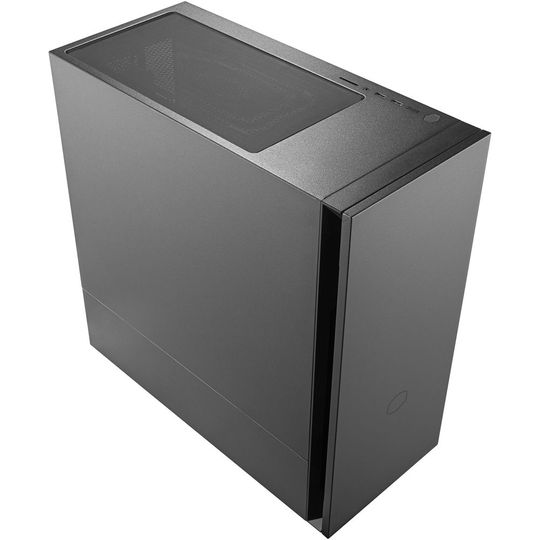

VENTILATION TOP
For an even higher demand for ventilation, the top panel’s Sound Dampening Cover can be removed for unrestricted ventilation. An optional dust filter for the top panel ventilation is included, allowing the top panel and front panel to work in conjunction to cool the system.

VENTILATION FRONT
The front panel features a recurved vent, directing air in through the front bezel. The curve points downward, taking air in from the bottom, and straightens out to direct air in from either side of the steel front door.

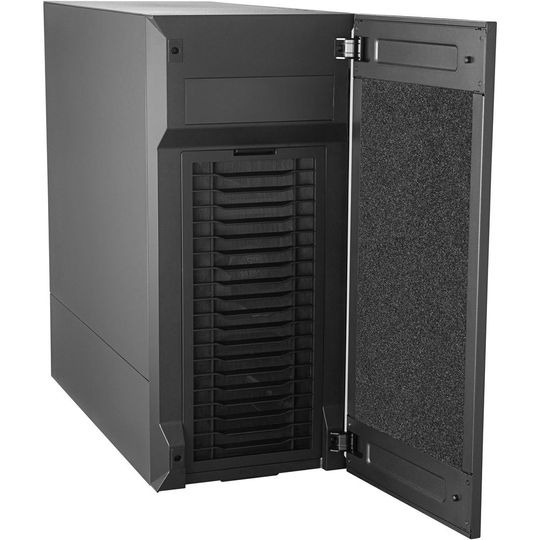

REVERSIBLE STEEL DOOR
The steel front door features a reversible mounting system, capable of opening in either direction. To prevent vibrations, a softer, thicker material spans the steel structure in conjunction with a hinge system of magnets and rubber stompers.

SILENCIO FANS
Two Silencio FP 120mm PWM fans are pre-installed with rubber padding to reduce noise, featuring specially designed blades that allow both quiet operation and high air pressure.

SPECIFICATION

• MODEL NUMBER: MCS-S600-KN5N-S00 (Steel)
• SERIES: Silencio Series
• SIZE: Mid Tower
• AVAILABLE COLOR(S): Black
• MATERIALS: Steel, Plastic, Sound Dampening Material
• DIMENSIONS (L X W X H): 478mm x 209mm x 470.5mm (incl. Protrusions), 466mm x 209mm x 460.5mm (excl. Protrusions)

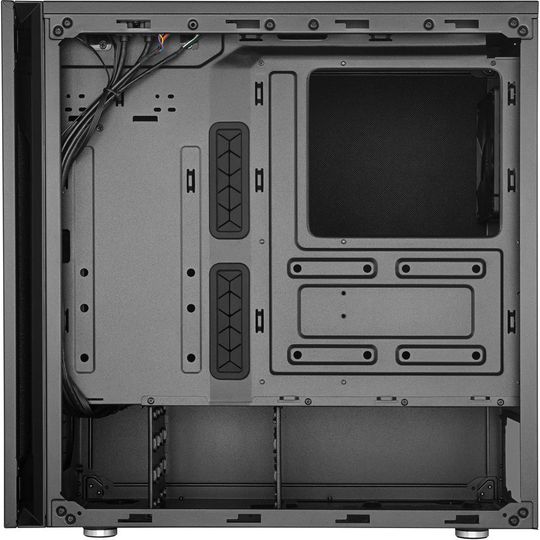

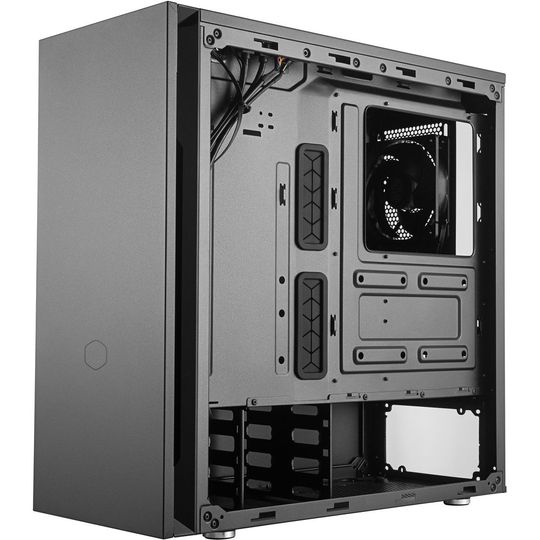

• MOTHERBOARD SUPPORT: Mini ITX, Micro ATX, ATX

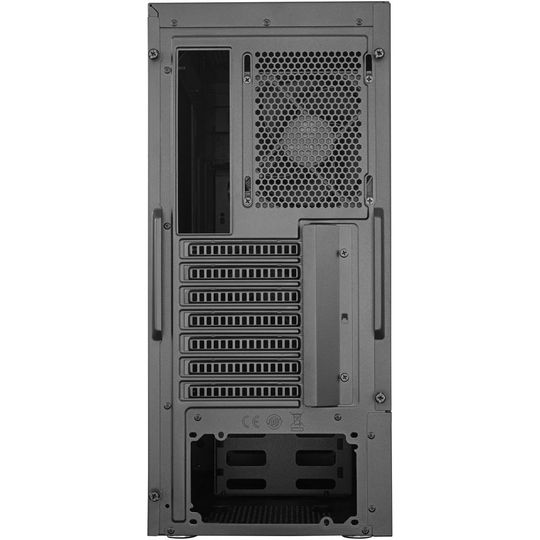

• EXPANSION SLOTS: 7
• 5.25" DRIVE BAYS: 1
• 3.5" DRIVE BAYS: 4
• 2.5" DRIVE BAYS: 5

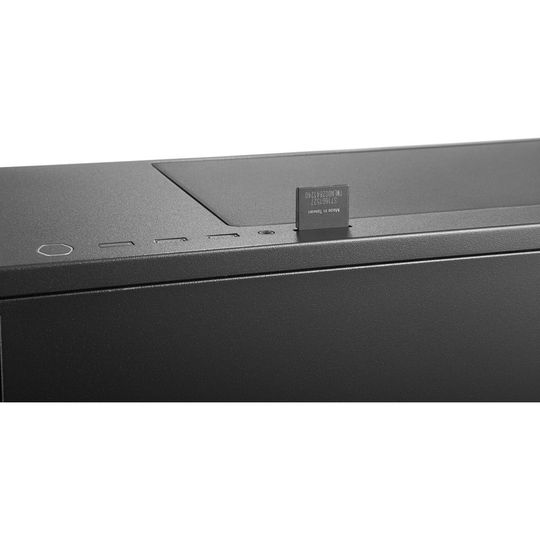

• I/O PANEL: 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Headset Jack (Audio+Mic), 1x SD card reader
• PRE-INSTALLED FANS - FRONT: 1x 120mm (PWM 800-1400 RPM)
• PRE-INSTALLED FANS - REAR: 1x 120mm (PWM 800-1400 RPM)
• FAN SUPPORT - FRONT: 2x 120/140mm
• FAN SUPPORT - TOP: 2x 120/140mm
• FAN SUPPORT - REAR: 1x 120mm
• RADIATOR SUPPORT - FRONT: 120mm, 140mm, 240mm, 280mm
• RADIATOR SUPPORT - TOP: 120mm / 240mm (remove ODD) (35mm max motherboard component height)
• RADIATOR SUPPORT - REAR: 120mm
• CLEARANCE - CPU COOLER TG: 166mm, Steel: 167mm
• CLEARANCE - GFX: 398mm
• CLEARANCE - PSU: 180mm

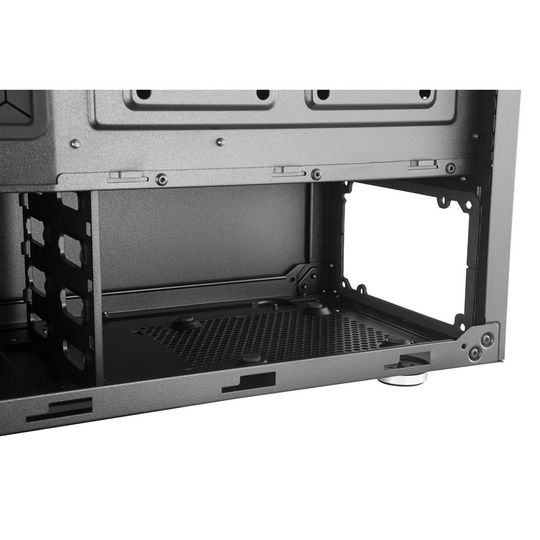

• POWER SUPPLY SUPPORT: Bottom mount, ATX PS2
• DUST FILTERS: Top, Front, Bottom
• CABLE ROUTING: 18-26mm
• EAN CODE: 4719512087398 (Steel)
• UPC CODE: 884102059841 (Steel)
