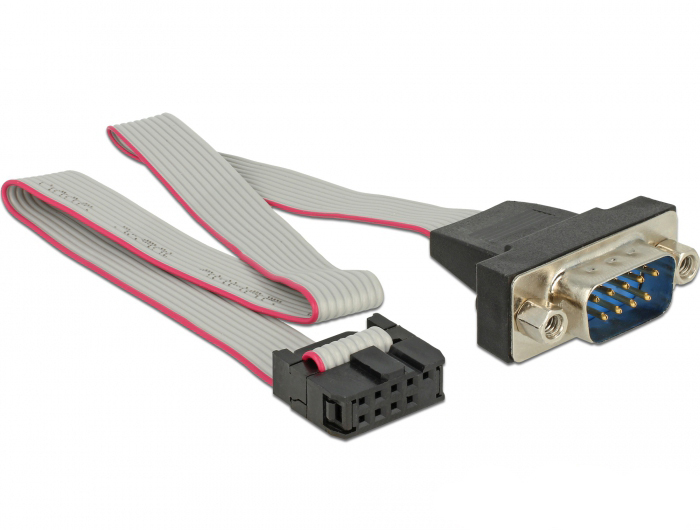

Tengi Delock Serial RS-232 header 1:1 DB9 male
This serial RS-232 cable by Delock offers the possibility to connect an internal standard RS-232 connector to the outside of the computer housing. The serial DB9 connector is suitable for mini PCs, industrial computers, brackets etc.
Technical details

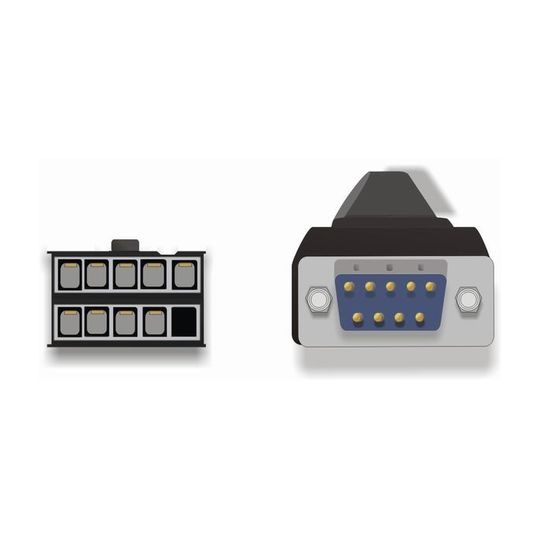

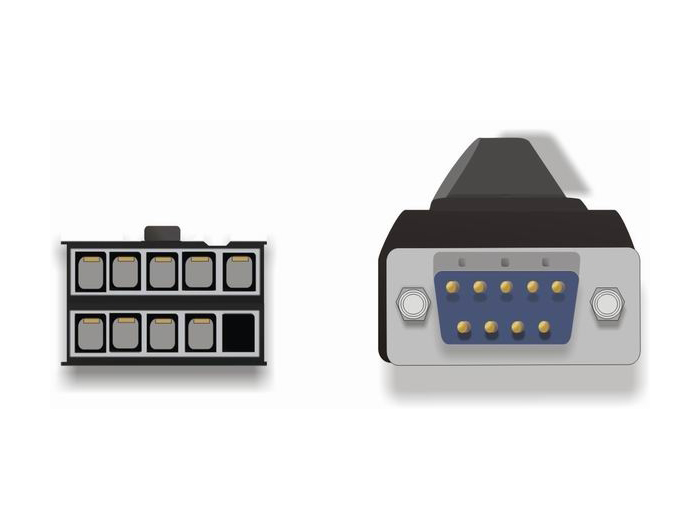

- Connectors:
- internal: 1 x 9 pin COM port pin header female
- external: 1 x serial RS-232 DB9 male with nuts
- Pitch: 2.54 mm
- Cable length: ca. 25 cm
- Cable colour: grey

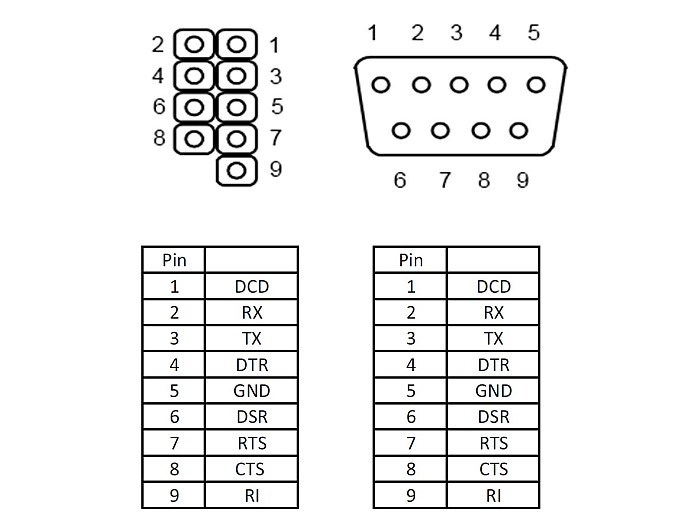

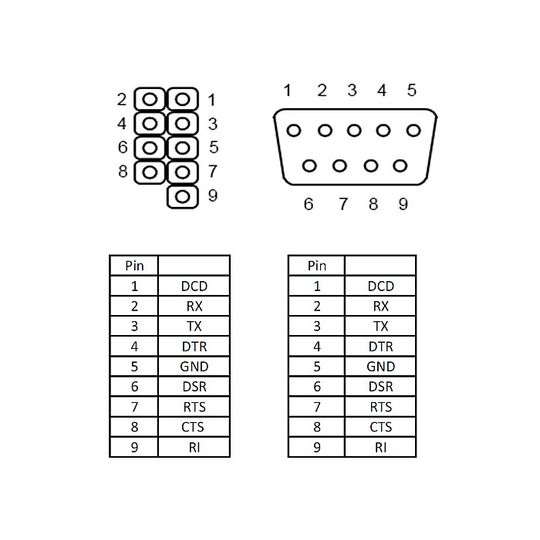

- Pin layout serial > pin header port
- 1-1, 2-2, 3-3, 4-4, 5-5, 6-6, 7-7, 8-8, 9-9
- System requirements
- A free COM port internal
- PC with one free DB9 case opening
- Package content
- Cable with 1 x COM port
- Package
- Zip poly bag
| Cable RS-232 Serial pin header female to DB9 male layout 1:1 DeLOCK 89900, Grey, 0.25 m, RS-232 DB9, 9-pin COM, Male, Female |
|
| Features | |
|---|---|
| Product colour: | Grey |
| Cable length: | 0.25 m |
| Connector 1: | RS-232 DB9 |
| Connector 2: | 9-pin COM |
| Connector 1 gender: | Male |
| Connector 2 gender: | Female |
| Logistics data | |
|---|---|
| Harmonized System (HS) code: | 84733080 |
