Switch TP-Link 1Gbit 5P TL-SG105E SmartSwitch

Framleiðandi: TP-Link
Framl.númer: TL-SG105E
Vörunúmer: 8750

Til á lager

Stillanlegur fimm porta switch til að fjölga nettengjum á netkerfi. Styður allt að 1000 Mbps (1Gbit) gagnahraða. Þessi gerð styður svokallað IGMP Snooping en með því ræður hann betur við marga IP myndlykla samtímis, t.d. frá Símanum og Vodafone. Við mælum eindregið með þessum fyrir þá sem notast við marga myndlykla sem allir tengjast inn á IP sjónvarpskerfi Símans eða Vodafone. Sjá nánar hér.


Frí heimsending
Verð: 5.990 kr

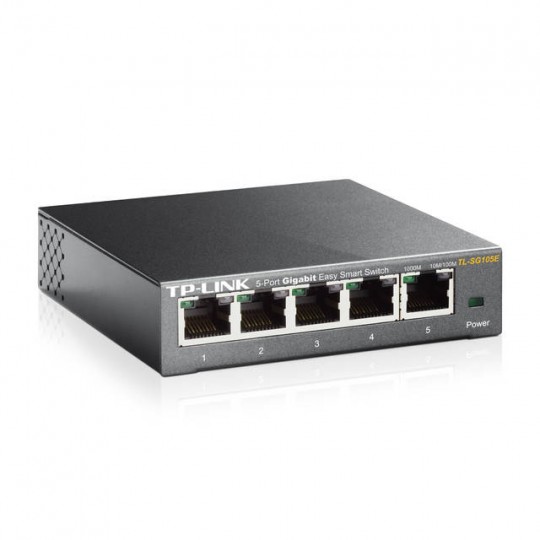

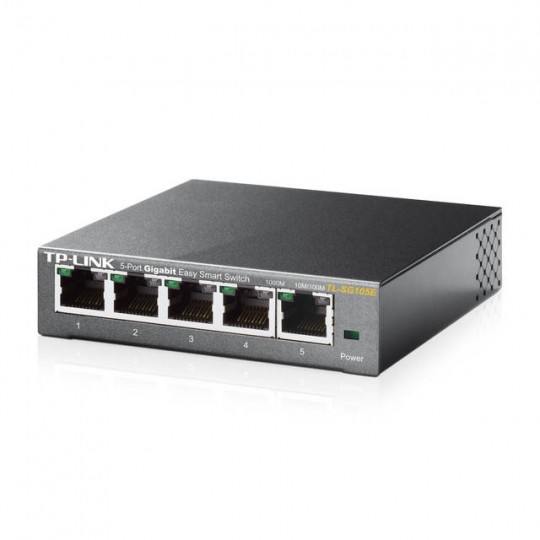

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch

Specifications

  • Mfr. Part Number: TL-SG105E
  • Features:

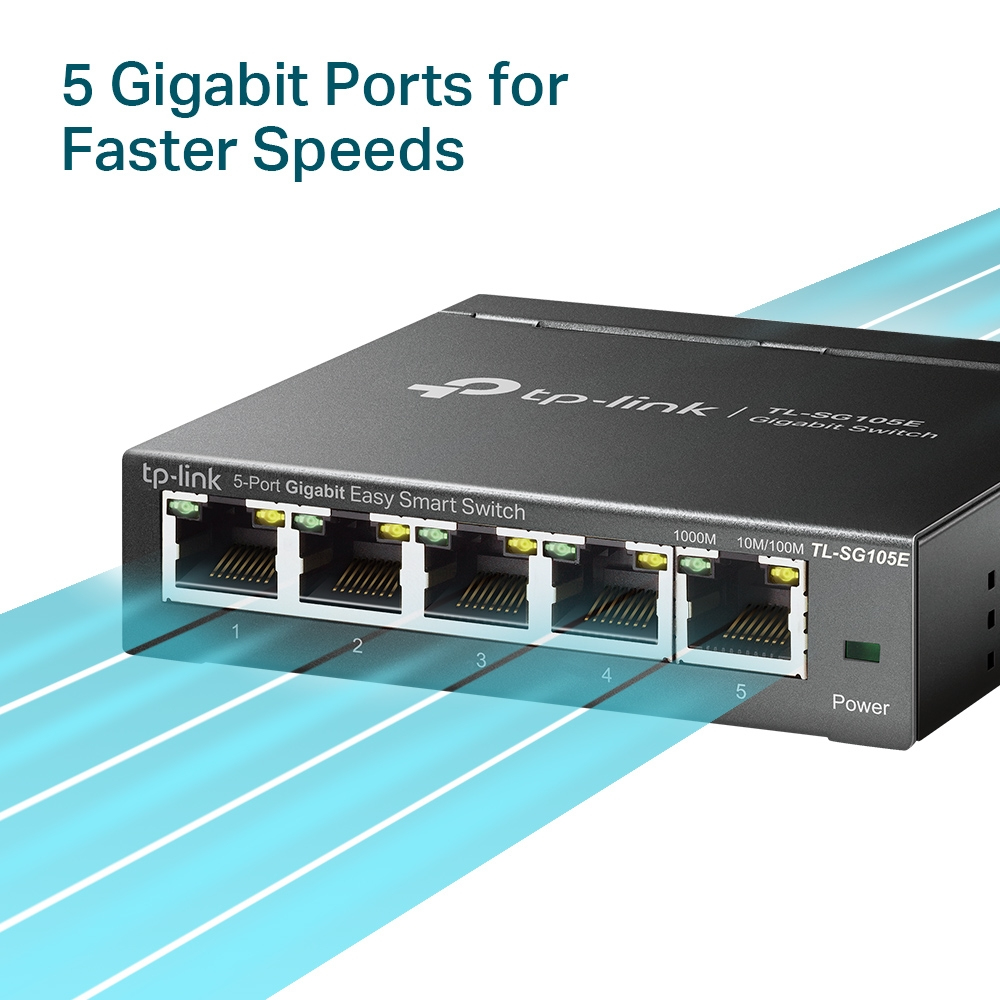

    • 5 10/100/1000Mbps ports provide instant large file transfers
    • Innovative energy-efficient technology reduces power consumption by up to 75%
    • IEEE 802.3x flow control provides reliable data transfers
    • 16K Jumbo frame improves performance of large data transfers
    • Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
    • Port and tag-based QoS enable smooth latency-sensitive traffic
    • Abundant VLAN features improve network security via traffic segmentation
    • IGMP Snooping optimizes multicast applications
    • Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
  • Hardware Features:
    • Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
    • Interface: 5x 10/100/1000Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
    • Network Media:
      • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
      • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
      • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
    • Fan Quantity: Fanless
    • Power Supply: 100-240VAC, 50/60Hz
    • Dimensions (WxDxH ): 100.0 x 98.0 x 25.0 mm
  • Performance:
    • MAC Address Table: 8K
    • Packet Buffer Memory: 2Mb
    • Packet Forwarding Rate: 7.4Mpps
    • Jumbo Frame: 16KB
  • Software Features:
    • Quality of Service: Support Port Based/802.1p Based priority; Support 4 priority queues; Rate Limit; Storm Control
    • L2 Features: IGMP Snooping; Link Aggregation; Port Mirroring; Cable Diagnostics; Loop Prevention
    • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs); MTU/Port/Tag VLAN
    • Transmission Method: Store-And-Forward
  • Others:
    • Certifications: CE, FCC, RoHS
    • Package Contents: TL-SG105E, Power Cord, Installation Guide, Resource CD, Rubber Feet
    • System Requirements: Microsoft Windows XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux
    • Environment:
      • Operating Temperature: 0°C~40°C (32°F~104°F)
      • Storage Temperature: -40°C~70°C (-40°F~158°F)
      • Operating Humidity: 10%~90% non-condensing
      • Storage Humidity: 5%~90% non-condensing
