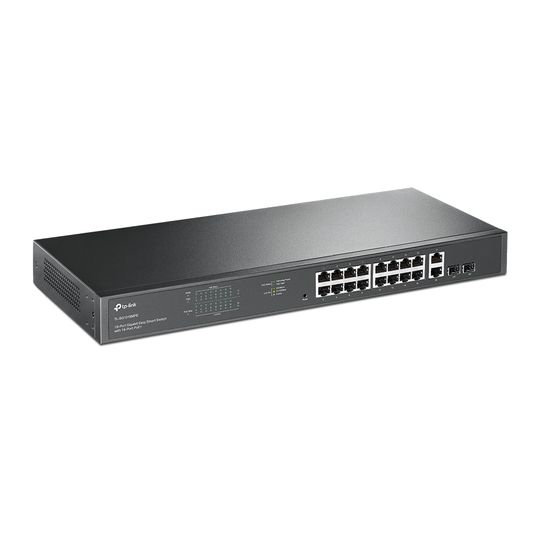

Switch PoE TP-Link 18port TL-SG1218MPE með 16xPoE

Framleiðandi: TP-Link
Framl.númer: TL-SG1218MPE
Vörunúmer: 11345

Til á lager

18 porta Gigabit switch og þar af styðja 16 port PoE. Ræður við allt að 250W afl.

Þessi sextán PoE port gera kleift að senda rafmagnið í sama kapli og þarf því eingöngu einn netkapal á milli búnaðar og PoE switch. Þannig má stækka netkerfið þó svo að ekkert rafmagn sé nálægt tækjum eins og aðgangspunktum, IP myndavélum, IP símum o.s.frv.

  • Hraði: 1 Gbps
  • 18 port með Gigabit nethraða. Sjálfvirk skynjun
  • Þar af styðja 16 port Power over Ethernet (PoE)
  • Einföld tenging, plug & play
  • Uppfyllir EEE (Energy Efficient Ethernet) 802.3 staðalinn

Frí heimsending
Verð: 49.900 kr
TP-Link TL-SG1218MPE
  • 18-Port Gigabit Easy Smart Switch with 16-Port PoE+
  • 16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
  • PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.*
  • Port Priority is able to guarantee the quality of sensitive application like video monitor.
  • PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
  • Intelligent power management protects the switch from overload.
  • QoS ensures smooth traffic for latency sensitive applications.
  • IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.

Professional High Power 18-Port Gigabit Easy Smart Switch with 16-Port PoE+
Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

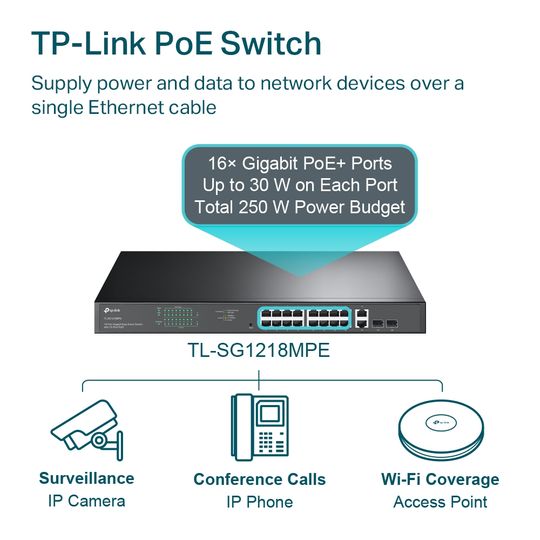

Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

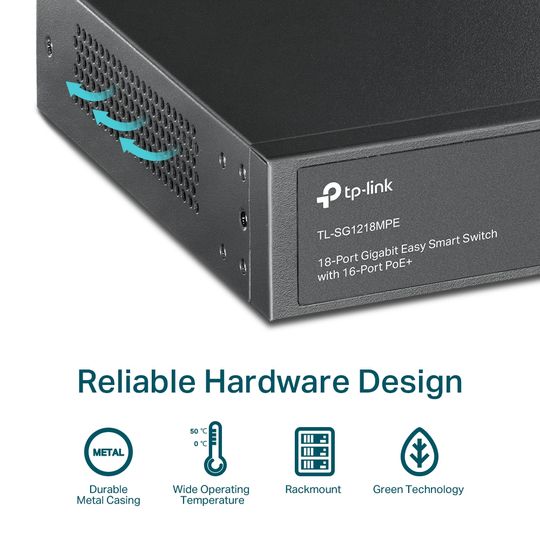

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios

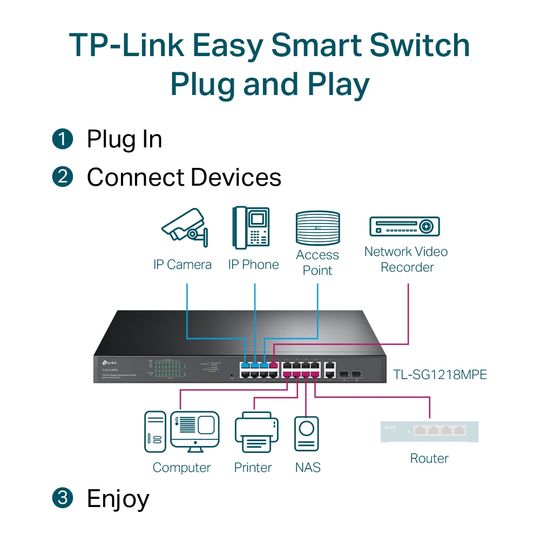

The TL-SG1218MPE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Combo Gigabit SFP Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100–240V AC, 50/60 Hz
PoE+ Ports(RJ45) • Standard: 802.3at/802.3af compliant
• PoE+ Ports: Ports 1–16
• Power Supply: 250 W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption • 21.4 W (220/50Hz. no PD connected)
• 296.3 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation • 72.97 BTU/h (no PD connected)
• 1010.38 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 10 KB
SOFTWARE FEATURES
Quality of Service • Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control
L2 Features • IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recovery

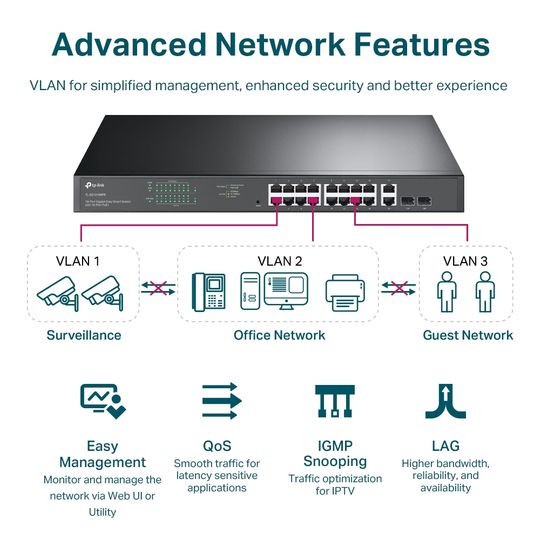

VLAN • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
Management • Web-based GUI
• Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents • TL-SG1218MPE
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Environment • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
