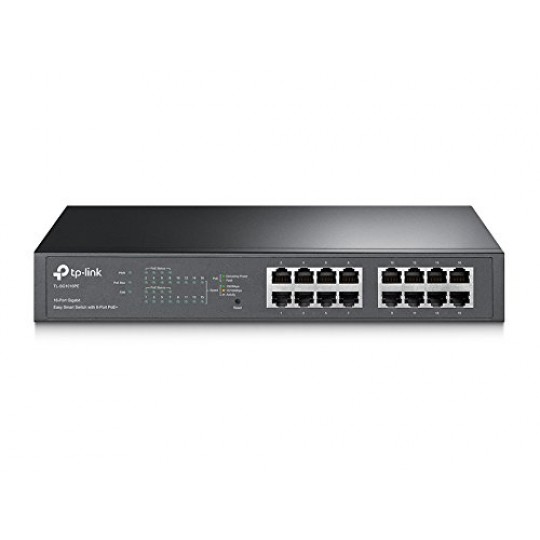

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch w/ 8-Port PoE+

Specifications

• Mfr. Part Number: TL-SG1016PE
• Features:
  • 16 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration
• Hardware Features:
  • Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
  • Interface: 16x 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
  • Network Media:
    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
    • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
    • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: Fanless
  • Power Consumption: Maximum - 124.4W (220V/50Hz)
  • Power Supply: 100-240VAC, 50/60Hz
  • PoE+ Ports(RJ45):
    • Standard: 802.3 at compliant
    • PoE Ports: Port 1- Port 8
    • PoE Power Budget: 150W
  • Dimensions (WxDxH): 11.6 x 7.1 x 1.7 inch / 294.0 x 180.0 x 44.0 mm
• Performance:
  • Switching Capacity: 32Gbps
  • Packet Forwarding Rate: 23.8Mbps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1Mbit
  • Jumbo Frame: 9KB
• Software Features:
  • Quality of Service:
    • Support Port-Based/802.1p/DSCP priority
    • Support 4 priority queues
    • Rate Limit
    • Storm Control
  • L2 Features:
    • IGMP Snooping V1/V2/V3
    • Link Aggregation
    • Port Mirroring
    • Cable Diagnostics
    • Loop Prevention
  • VLAN: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
  • Management: Web-based GUI, Easy Smart Configuration Utility
  • Transmission Method: Store-And-Forward
• Others:
  • Certifications: FCC, CE, RoHS
  • Package Contents: TL-SG1016PE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
  • System Requirements: Microsoft Windows for running Utility
  • Environment:
    • Operating Temperature: 0°C~40°C (32°F~104°F)
    • Storage Temperature: -40°C~70°C (-40°F~158°F)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing
