Spennugjafi Universal 60W 6-16V DC ACPA116
Universal AC Power Adapter. 60 W, 6 / 7 / 8 / 9 / 10 / 11 / 16 VDC, 5,0-5,2A output. 100 - 240 V AC input voltage.

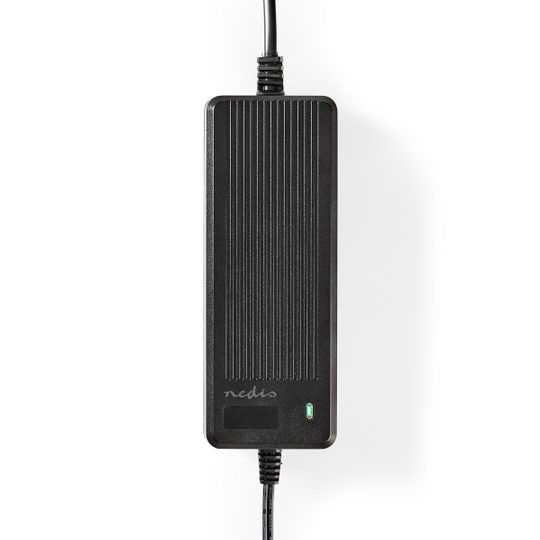

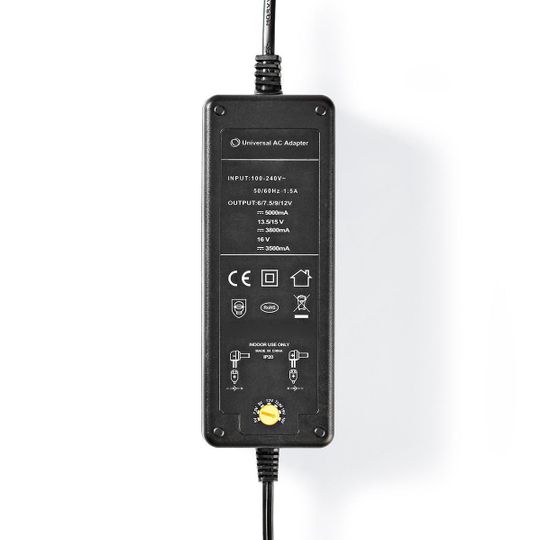

This compact universal 60 Watt adapter has a selectable voltage output between 6 and 16 V DC. The adapter has a short circuit protection and an overload protection and is supplied with 8 power tips. Due to this the adapter is suitable for a wide range of applications including for example notebooks.
Features
• Reversible polarity
• Manually selectable output voltage
• 8 power tips
• Efficiency level VI
• Manually selectable output voltage
• 8 power tips
• Efficiency level VI
Package contents
Power supply
8x power tip
Manual
8x power tip
Manual
Product specifications
|
Colour
|
Black
|
|---|---|
|
Output power
|
60 W
|
|
Power source type
|
Mains Powered
|
|
Power plug
|
Type C (CEE 7/16)
|
|
Number of outputs
|
1
|
|
Depth
|
35 mm
|
|
Width
|
138 mm
|
|
Power cable side A
|
Euro / Type C (CEE 7/16)
|
|
Maximum power consumption
|
60 W
|
|
|
|
|
Output voltage selection
|
Manually
|
|
Material
|
ABS+
|
|
Appliance
|
Universal
|
|
Input voltage
|
100 - 240 V AC
|
|
Output plug type
|
5.0 x 2.1 mm
5.5 x 2.5 mm 3.5 x 1.35 mm 3.5 x 1.1 mm 4.0 x 1.7 mm 4.8 x 1.7 mm 5.5 x 2.1 mm 6.3 x 3.0 mm |
|
Output voltage
|
6 VDC
7,5 VDC 9 VDC 12 VDC 13,5 VDC 15 VDC 16 VDC |
|
Height
|
51 mm
|
|
Output current
|
5.0 A - 5.2 A
|
|
Power adapter cable length
|
1,10 meters
|
|
Weight
|
279 grams
|
