Örgjörvakæling BeQuiet Dark Rock 5 Intel/AMD
Unleashed performance and compatibility
Dark Rock 5 is the compact embodiment of performance and high compatibility. With effortless installation and a silent fan, it is designed for passionate gamers of all kinds.
| Dark Rock 5, 210W TDP, Copper/Aluminum, 1x Silent Wings 4 120mm PWM be quiet! DARK ROCK 5, Air cooler, 12 cm, 2100 RPM, 29.8 dB, 55 cfm, 93.5 m³/h |
|
| Performance | |
|---|---|
| Suitable location: | Processor |
| Type: | Air cooler |
| Fan diameter: | 12 cm |
| Supported processor sockets: | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5 |

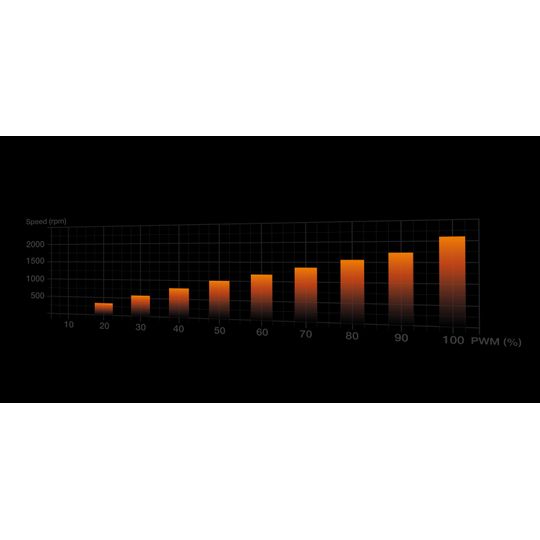

| Rotational speed (max): | 2100 RPM |
| Noise level (low speed): | 11.9 dB |
| Noise level (high speed): | 29.8 dB |
| Maximum airflow: | 55 cfm |
| Airflow: | 93.5 m³/h |
| Maximum air pressure: | 2.73 mmH2O |
| Pulse-width modulation (PWM) support: | Yes |
| Bearing type: | Fluid Dynamic Bearing (FDB) |
| Quantity per pack: | 1 pc(s) |
| Fan's mean time to failure (MTTF): | 300000 h |
| Design | |
|---|---|
| Product colour: | Black |
| Base plate material: | Copper |
| Number of fans: | 1 fan(s) |
| Fins material: | Aluminium |
| Number of heat pipes: | 6 |
| Fan connector: | 4-pin |
| Power | |
|---|---|
| Rated voltage: | 12 V |
| Fan power consumption: | 2.4 W |
| Maximum current: | 0.2 A |
| Thermal Design Power (TDP): | 210 W |
| Fan current: | 0.1 A |

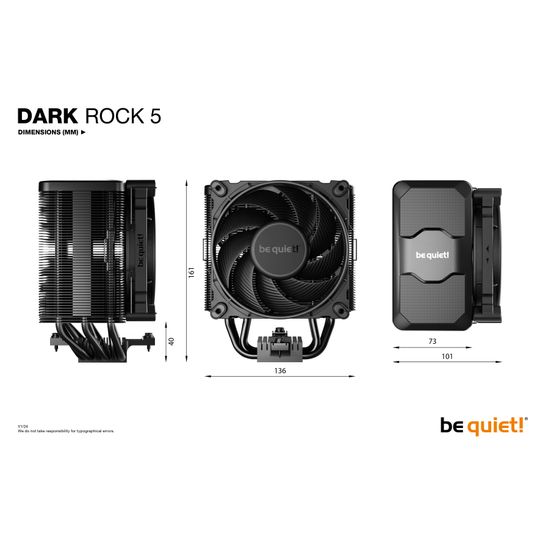

| Weight & dimensions | |
|---|---|
| Width: | 136 mm |
| Radiator width: | 13.6 cm |
| Radiator depth: | 7.6 cm |
| Radiator height: | 16.1 cm |
| Depth: | 101 mm |
| Height: | 161 mm |
| Weight: | 1.03 kg |
| Fan dimensions (W x D x H): | 120 x 120 x 25 mm |
| Heat pipes diameter: | 6 mm |
| Cable length: | 0.22 m |
| Package width: | 146 mm |
| Package depth: | 198 mm |
| Package height: | 224 mm |
| Package weight: | 1.5 kg |
| Technical details | |
|---|---|
| Warranty period: | 3 year(s) |
| Compliance certificates: | CE, RoHS, TÜV mark, UKCA, UL, WEEE |

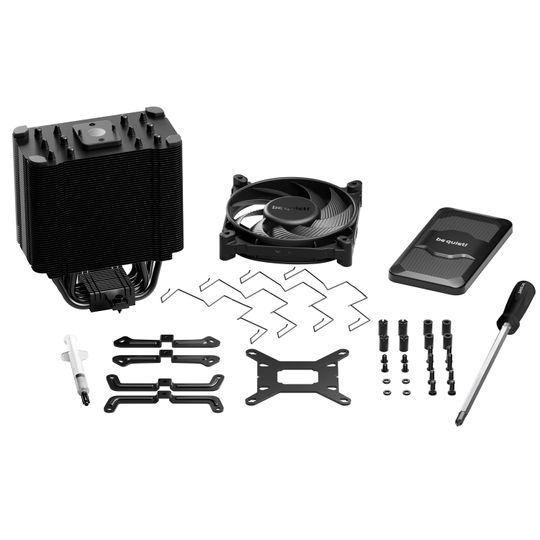

| Packaging content | |
|---|---|
| Mounting kit: | Yes |
| Screws included: | Yes |
| Number of screws: | 8 |
| Number of nuts: | 4 |
| Installation instruction: | Yes |
| CPU bracket(s): | Yes |
| Other features | |
|---|---|
| Thermal grease: | Yes |
| Logistics data | |
|---|---|
| Products per shipping (inner) case: | 12 pc(s) |
| Shipping (inner) case width: | 31 cm |
| Shipping (inner) case length: | 61 cm |
| Shipping (inner) case height: | 48.3 cm |
| Shipping (inner) case gross weight: | 18.6 kg |
