Móðurborð AM5 ASRock A620M-HDV/M.2 DDR5 mATX
| Socket AM5, AMD A620, 2 x DDR5 DIMM, 7.1 CH HD Audio, Gigabit LAN, Micro ATX Asrock A620M-HDV/M.2, AMD, Socket AM5, AMD Ryzen 9 7th Gen, DDR5-SDRAM, 96 GB, DIMM |
|
| Processor | |
|---|---|
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 9 7th Gen |
| Maximum number of SMP processors: | 1 |
| Memory | |
|---|---|
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Non-ECC: | Yes |
| Maximum internal memory: | 96 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| RAID support: | Yes |
| RAID levels: | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support: | Not supported |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Number of SATA II connectors: | 2 |
| Front panel audio connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |

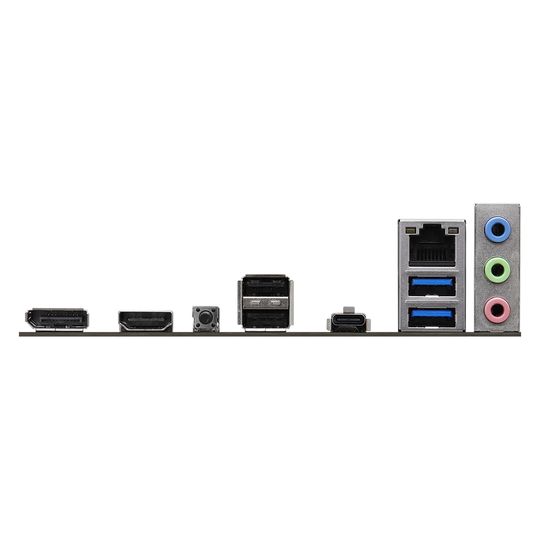

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| Line-in: | Yes |
| Microphone in: | Yes |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| LAN controller: | Realtek RTL8111H |
| Wi-Fi: | No |
| Features | |
|---|---|
| Motherboard chipset: | AMD A620 |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Component for: | PC |
| Motherboard form factor: | micro ATX |
| Motherboard chipset family: | AMD |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x1 (Gen 3.x) slots: | 2 |
| PCI Express x16 (Gen 4.x) slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| BIOS | |
|---|---|
| BIOS type: | EFI AMI |
| BIOS memory size: | 256 Mbit |
| Weight & dimensions | |
|---|---|
| Width: | 244 mm |
| Depth: | 226 mm |
