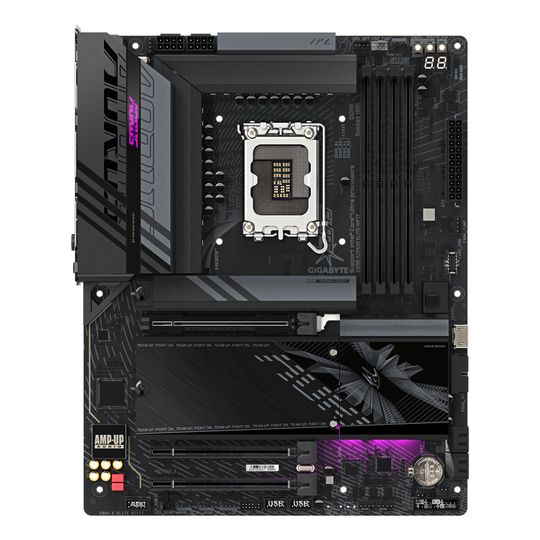

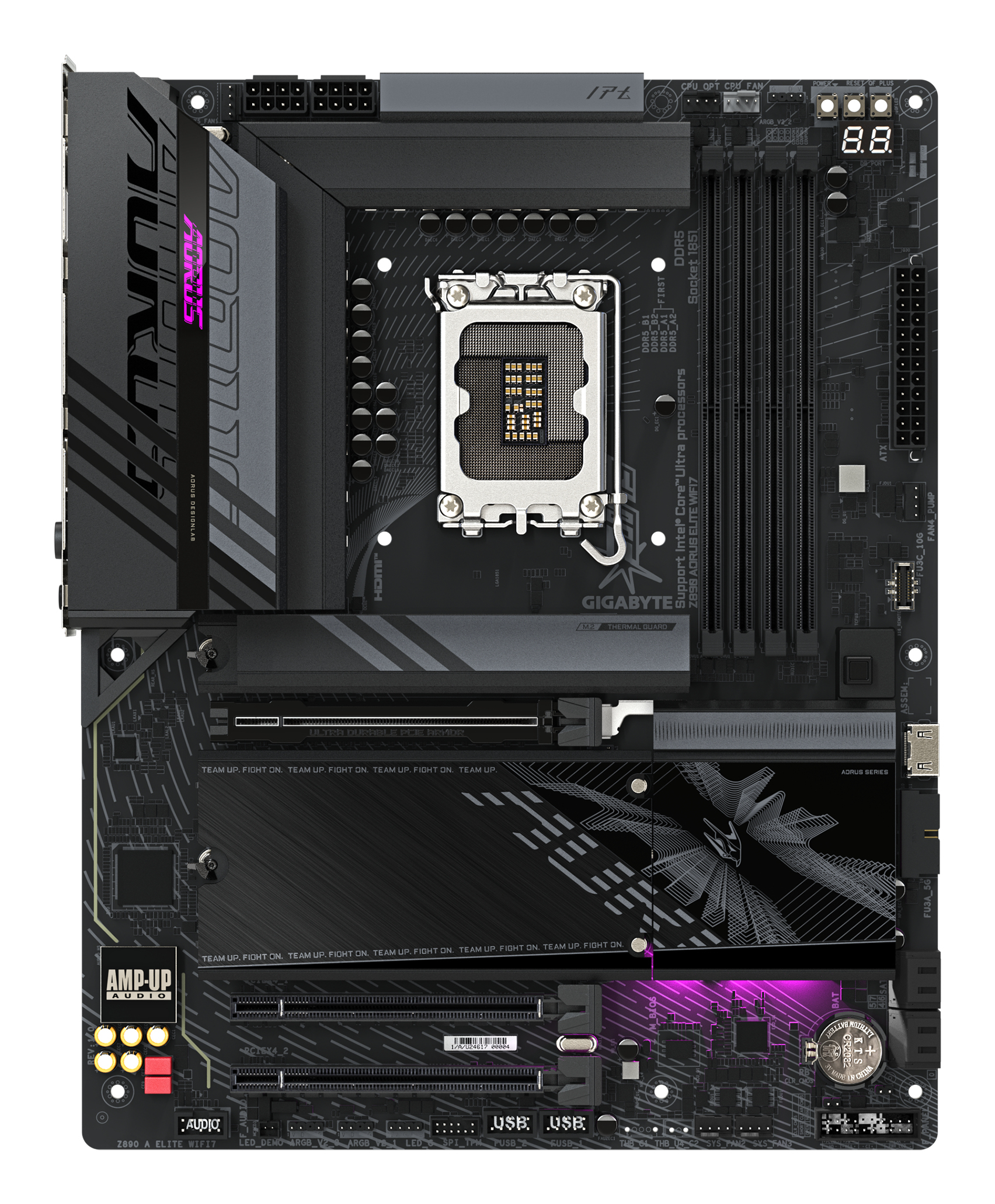

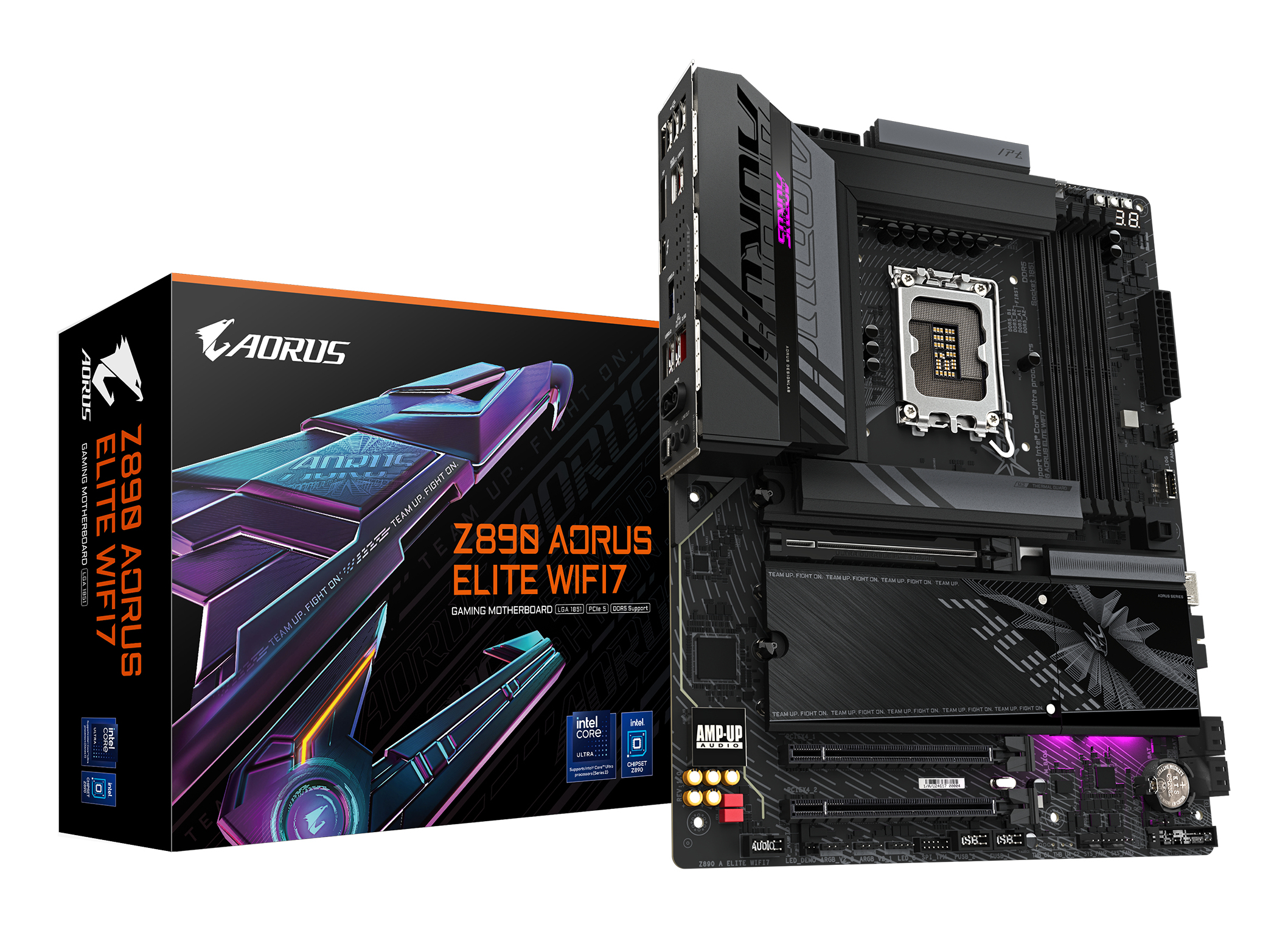

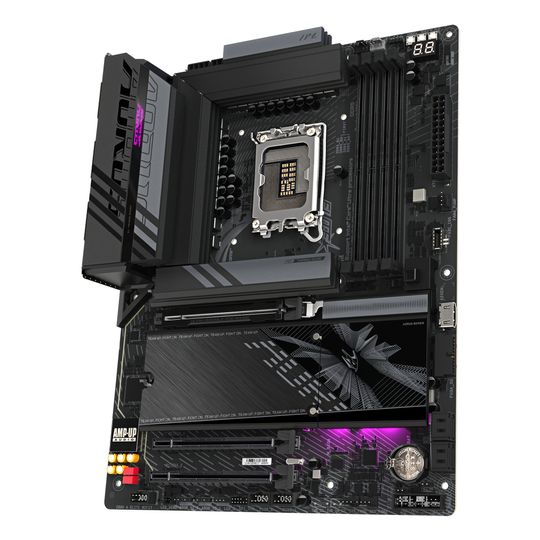

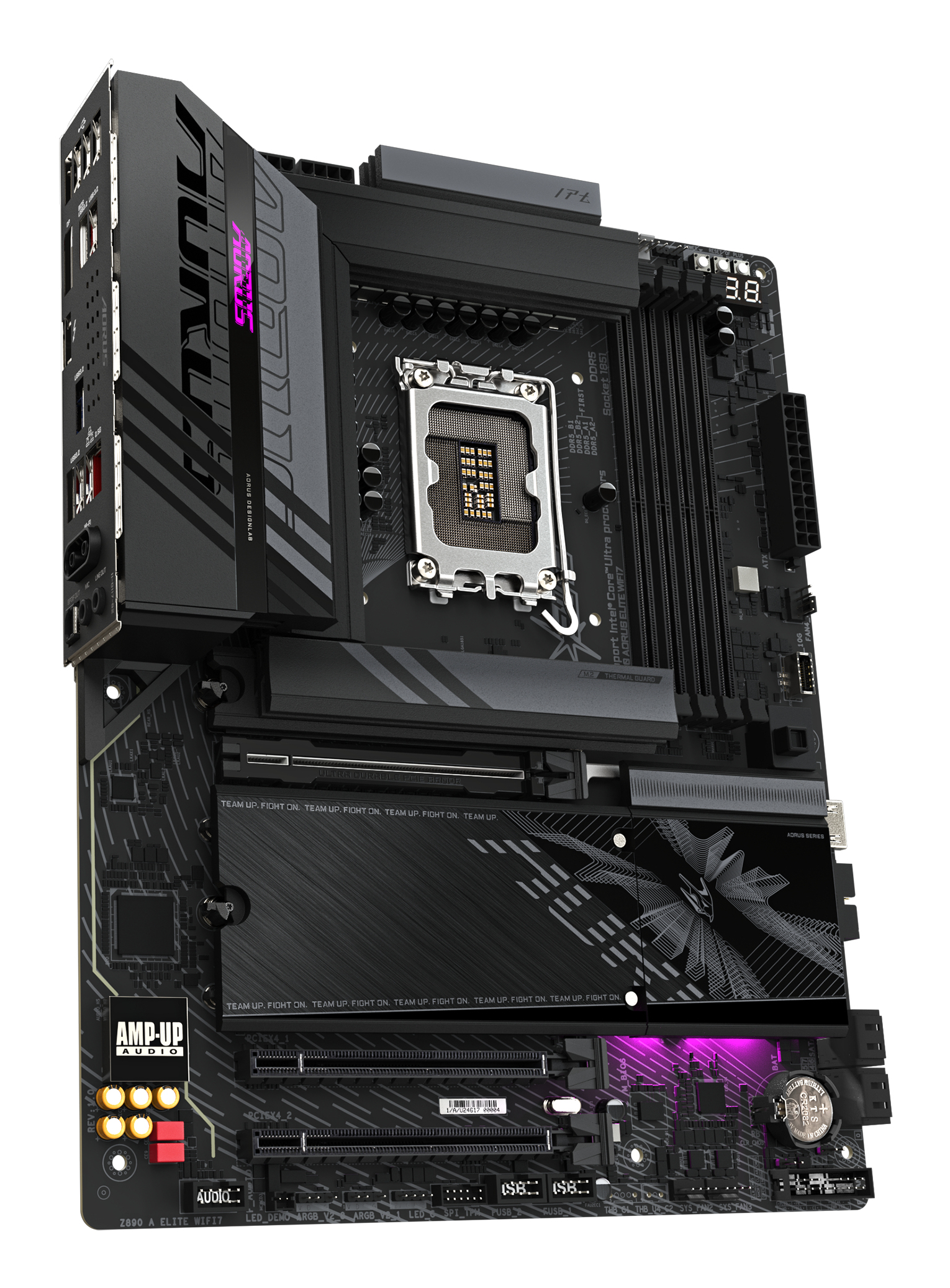

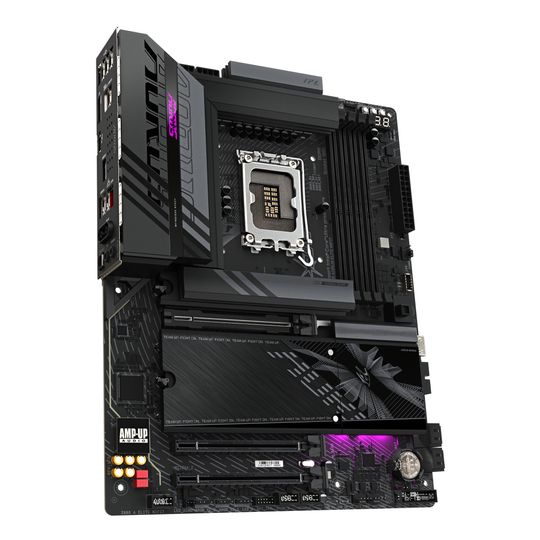

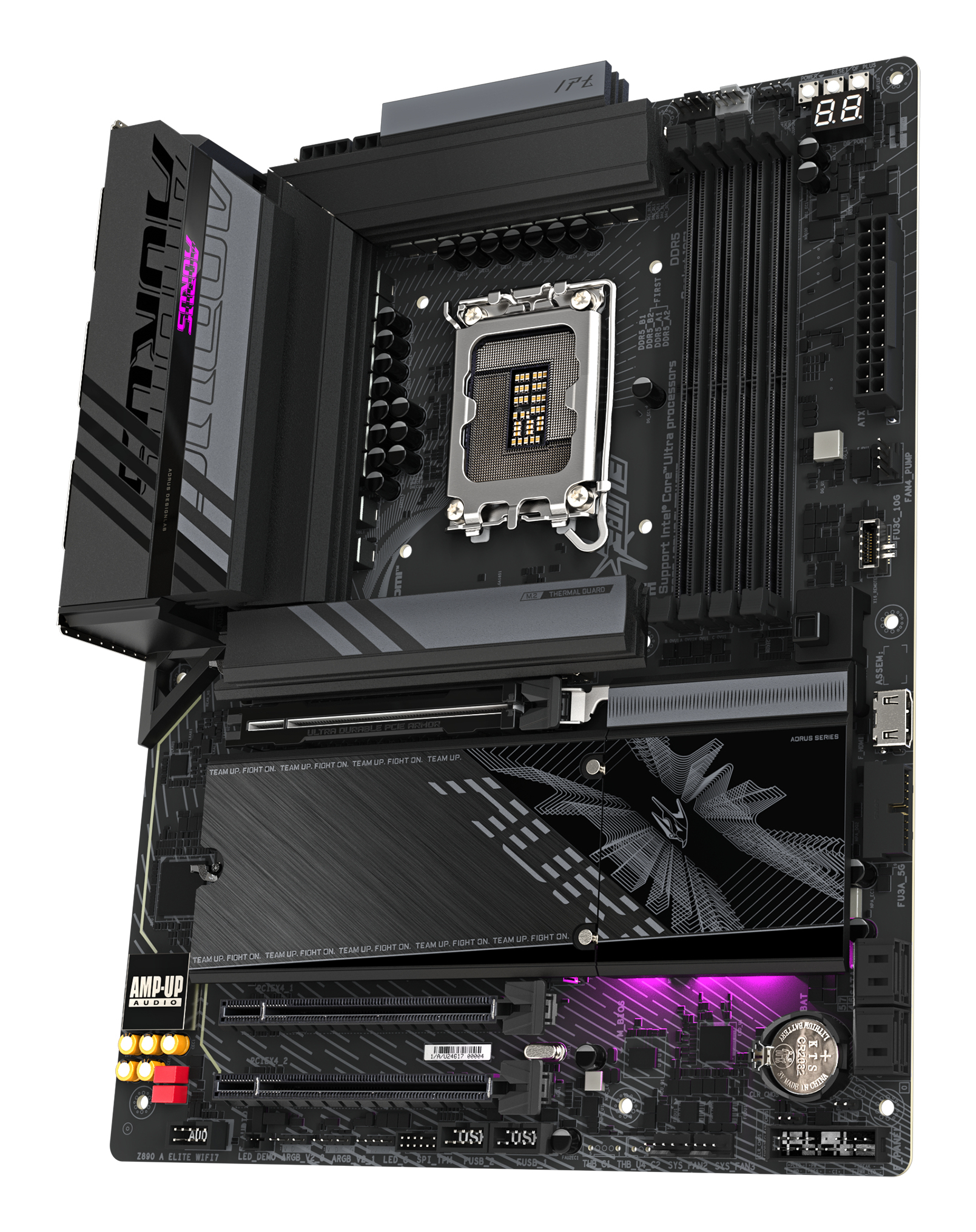

Móðurborð 1851 Gigabyte Z890 AORUS ELITE WIFI7 ATX
GIGABYTE Z890 AORUS ELITE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 Realtek ALC1220 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 4
- BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper Clear CMOS button
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| Z890 AORUS ELITE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4 GIGABYTE Z890 AORUS ELITE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 16+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, Thunderbolt 4, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, 256 GB, DDR5-SDRAM |
|
| Processor | |
|---|---|
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1851 (Socket V1) |
| Compatible processor series: | Intel Core Ultra (Series 2) |
| Supported processor sockets: | LGA 1851 |
| Maximum internal memory supported by processor: | 256 GB |
| Memory | |
|---|---|
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | Non-ECC |
| Supported memory clock speeds: | 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz |
| Supported memory clock speed (max): | 8800 MHz |
| Maximum internal memory: | 256 GB |
| Supported memory module capacities: | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 8 |
| Number of storage drives supported: | 4 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| On-board graphics card: | No |
| DirectX version: | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Total number of SATA connectors: | 4 |
| ATX Power connector (24-pin): | Yes |
| EPS power connector (8-pin): | Yes |
| Number of EPS power connectors (8-pin): | 1 |
| TPM connector: | Yes |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |

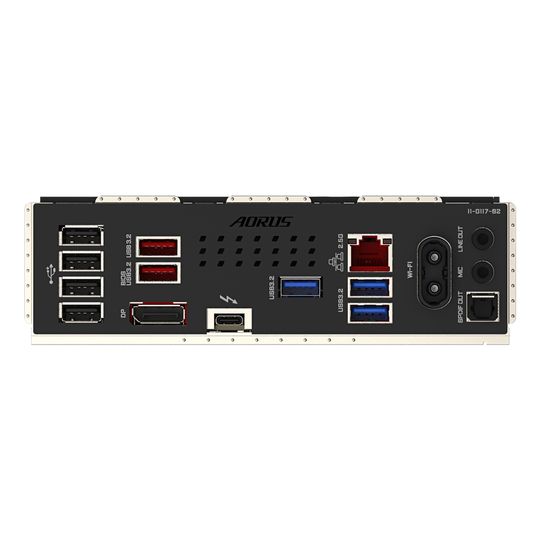

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| DisplayPorts quantity: | 2 |
| Microphone in: | Yes |
| S/PDIF out port: | Yes |
| Thunderbolt ports quantity: | 1 |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Wi-Fi: | Yes |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| WLAN controller model: | MediaTek MT7925 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Features | |
|---|---|
| Motherboard chipset: | Intel Z890 |
| Audio chip: | Realtek ALC1220 |
| Audio output channels: | 7.1 channels |
| Product colour: | Black |
| PC health monitoring: | Fan, Temperature, Voltage |
| Component for: | PC |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 4 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| ACPI version: | 5.0 |
| Clear CMOS jumper: | Yes |
| Clear CMOS button: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Logistics data | |
|---|---|
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Battery | |
|---|---|
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Number of battery cells: | 1 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Packaging data | |
|---|---|
| Package width: | 335 mm |
| Package depth: | 270 mm |
| Package height: | 80 mm |
| Package weight: | 2.5 kg |
| Weight & dimensions | |
|---|---|
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 35 mm |
| Packaging content | |
|---|---|
| Batteries included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Other features | |
|---|---|
| Weight: | 2.23 kg |
| Technical details | |
|---|---|
| Warranty period: | 3 year(s) |
