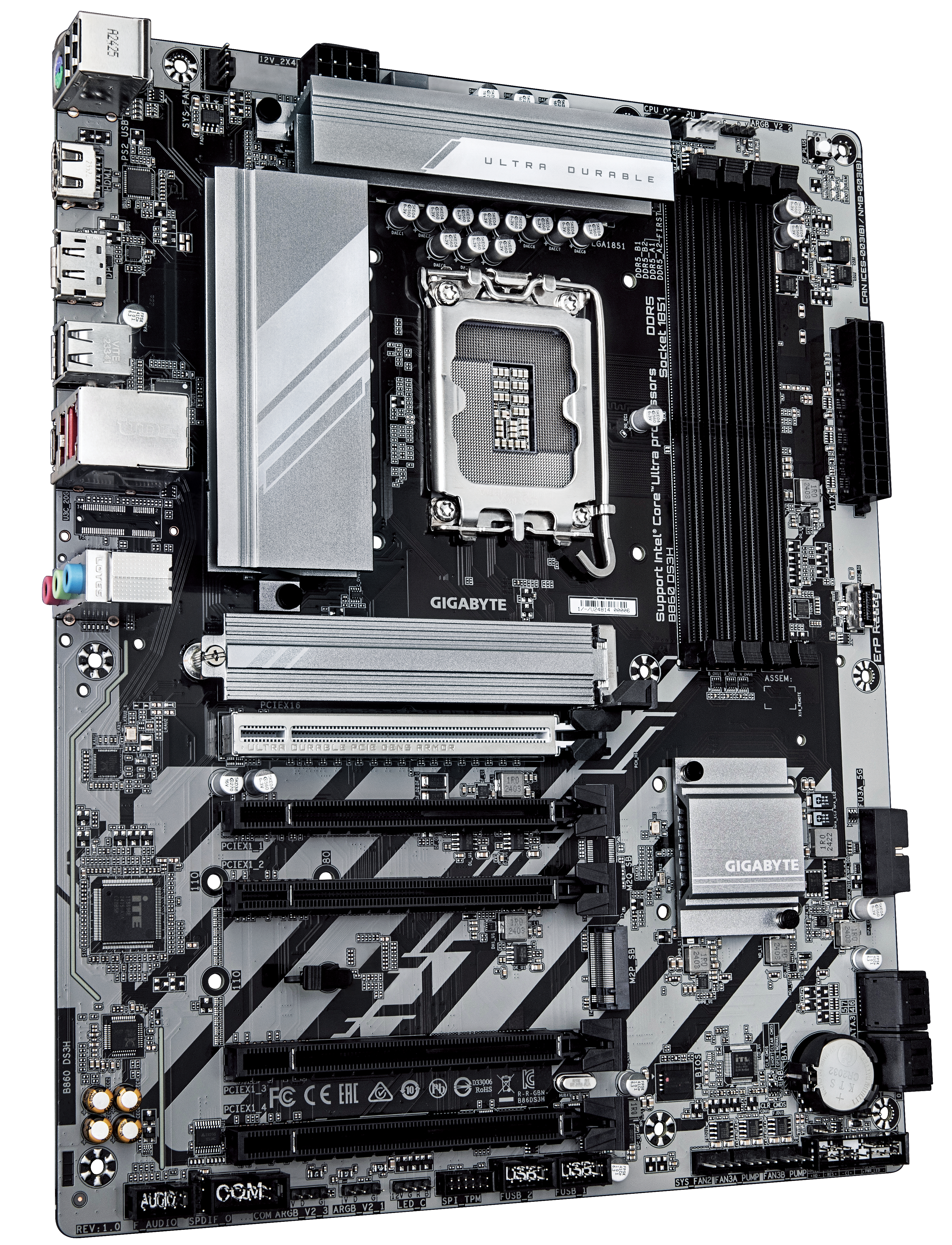

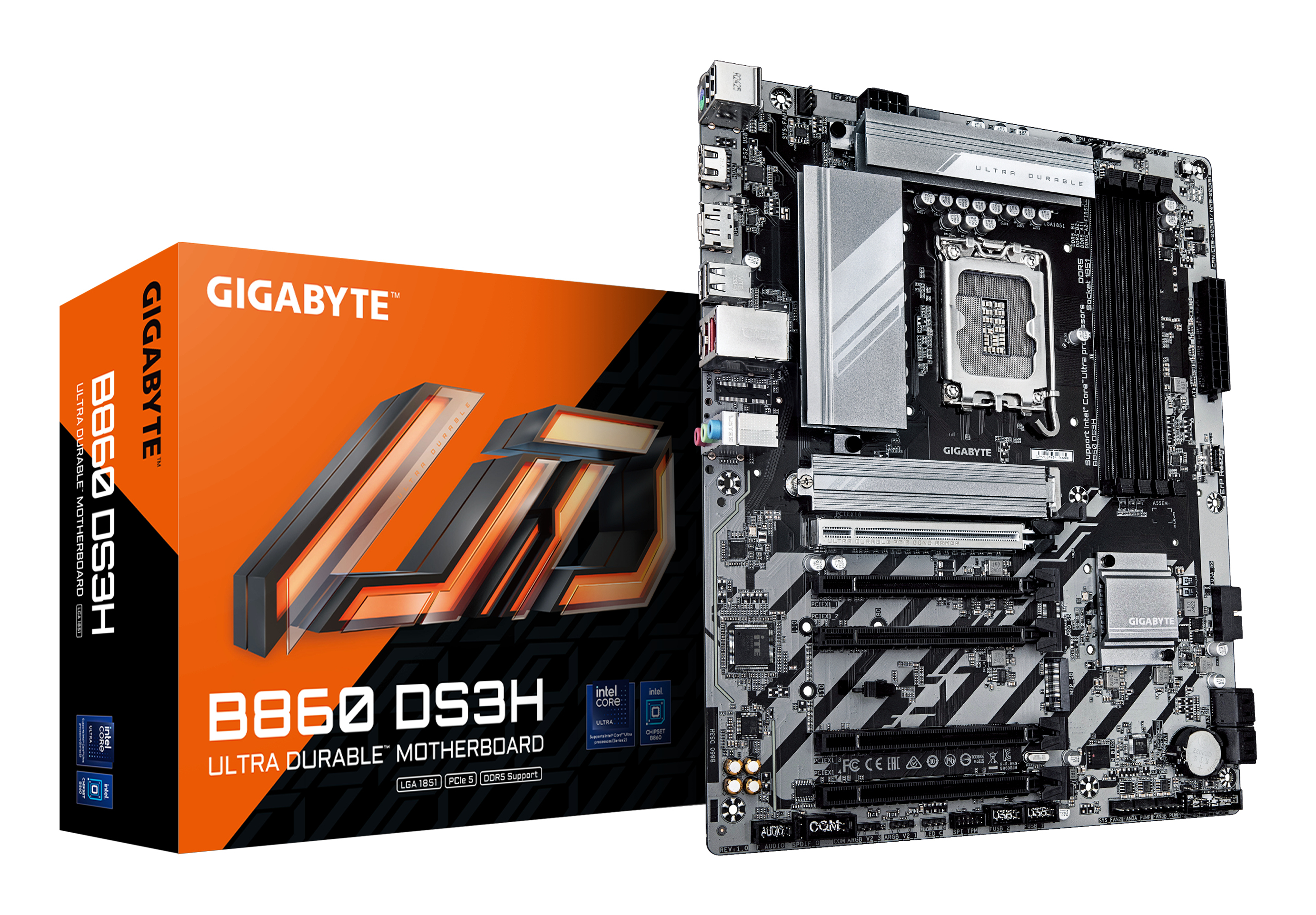

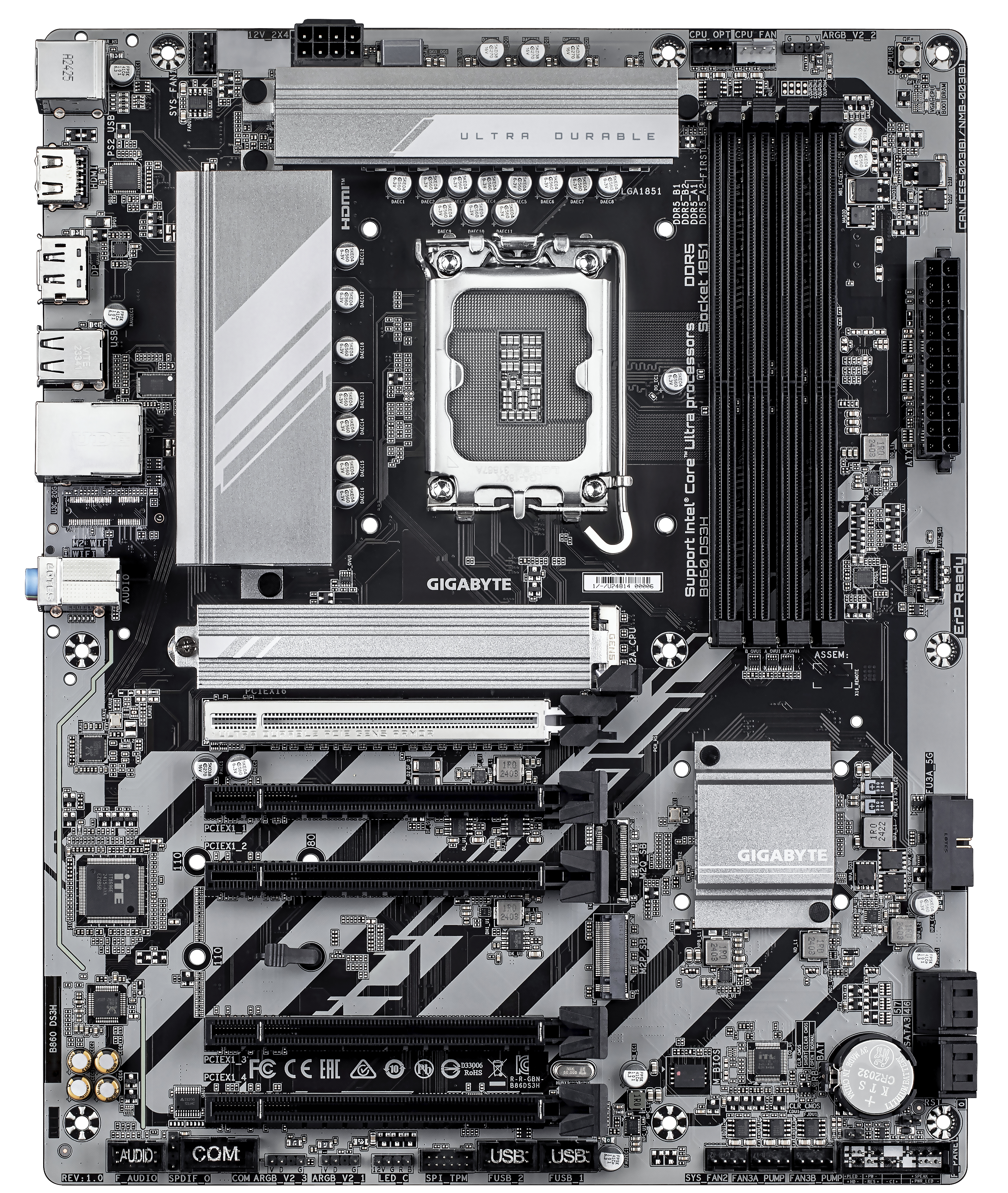

Móðurborð 1851 Gigabyte B860 DS3H DDR5 ATX
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
| B860 DS3H Motherboard - Supports Intel Core Ultra CPUs, 8+1+2+2 phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2x2 GIGABYTE B860 DS3H Motherboard - Supports Intel Core Ultra CPUs, 8+1+2+2 phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2x2, Intel, LGA 1851 (Socket V1), Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB |
|
| Processor | |
|---|---|
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1851 (Socket V1) |
| Compatible processor series: | Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2) |
| Supported processor sockets: | LGA 1851 |
| Memory | |
|---|---|
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speeds: | 5600,6400,9066 MHz |
| Supported memory clock speed (max): | 9066 MHz |
| Maximum internal memory: | 256 GB |
| Unbuffered memory: | Yes |
| Maximum internal memory per slot: | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 6 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support: | Not supported |
| Maximum resolution: | 4096 x 2160 pixels |
| HDCP: | Yes |
| DirectX version: | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| Number of SATA III connectors: | 4 |
| S/PDIF out connector: | Yes |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of CPU fan connectors: | 2 |
| Number of chassis fan connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| Number of EPS power connectors (8-pin): | 1 |
| TPM connector: | Yes |
| Serial port headers: | 1 |
| Number of water pump connectors: | 3 |
| RGB LED pin header: | Yes |
| Number of RGB LED pin headers: | 4 |

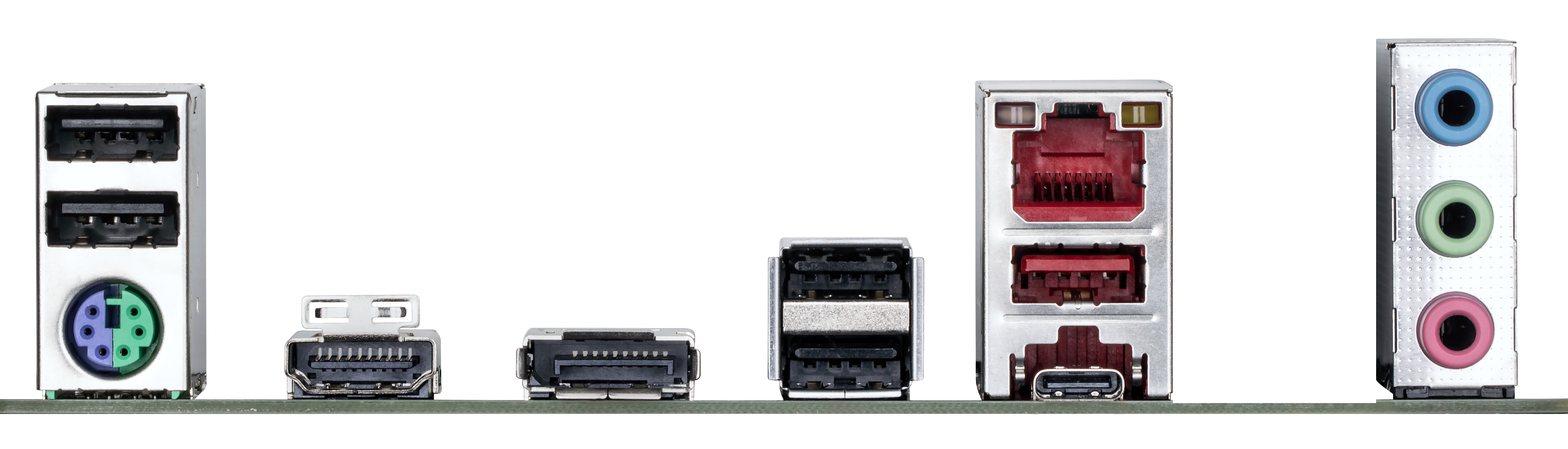

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 2.1 |
| Headphone outputs: | 1 |
| Line-in: | Yes |
| Microphone in: | Yes |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| LAN controller: | Realtek RTL8125 |
| Wi-Fi: | No |
| Features | |
|---|---|
| Motherboard chipset: | Intel B860 |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Product colour: | Dark brown |
| PC health monitoring: | Fan, Temperature, Voltage, Water cooling |
| Component for: | PC |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | Intel |
| Cooling type: | Passive |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots: | 4 |
| PCI Express x16 (Gen 5.x) slots: | 1 |
| Number of M.2 (M) slots: | 2 |
| 1st M.2 largest key size: | 25110 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 25110 |
| 2nd M.2 highest PCI Express generation: | 4.0 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| ACPI version: | 5.0 |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Logistics data | |
|---|---|
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Battery | |
|---|---|
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Number of battery cells: | 1 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Packaging data | |
|---|---|
| Package width: | 335 mm |
| Package depth: | 270 mm |
| Package height: | 80 mm |
| Weight & dimensions | |
|---|---|
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 35 mm |
| Packaging content | |
|---|---|
| Batteries included: | Yes |
| Screws included: | Yes |
| Bundled software: | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Other features | |
|---|---|
| Weight: | 2 kg |
| Technical details | |
|---|---|
| Warranty period: | 3 year(s) |
