Móðurborð 1700 Gigabyte H610I DDR4 ITX
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Mini-ITX, Intel H610 Express chipset, LGA 1700 socket, 2xDDR4 DIMM slots, 7.1-ch audio, Gigabit LAN GIGABYTE H610I DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4 (OC), 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G, LGA 1700, 64 GB, DDR4-SDRAM |
|
| Processor | |
|---|---|
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Supported processor sockets: | LGA 1700 |
| Maximum internal memory supported by processor: | 64 GB |
| Memory | |
|---|---|
| Supported memory types: | DDR4-SDRAM |
| Number of memory slots: | 2 |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC сompatibility: | ECC & Non-ECC |
| Supported memory clock speeds: | 2133,2400,2666,2933,3000,3200 MHz |
| Supported memory clock speed (max): | 3200 MHz |
| Maximum internal memory: | 64 GB |
| Unbuffered memory: | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types: | HDD & SSD |
| Supported storage drive interfaces: | M.2, SATA III |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 5 |
| Graphics | |
|---|---|
| Parallel processing technology support: | Not supported |
| Maximum resolution: | 4096 x 2304 pixels |
| HDCP: | Yes |
| DirectX version: | 12.0 |
| Number of displays supported: | 3 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 1 |
| Number of SATA III connectors: | 4 |
| Total number of SATA connectors: | 4 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of chassis fan connectors: | 2 |
| Chassis intrusion connector: | Yes |
| TPM connector: | Yes |
| Serial port headers: | 1 |
| 12V power connector: | Yes |
| RGB LED pin header: | Yes |

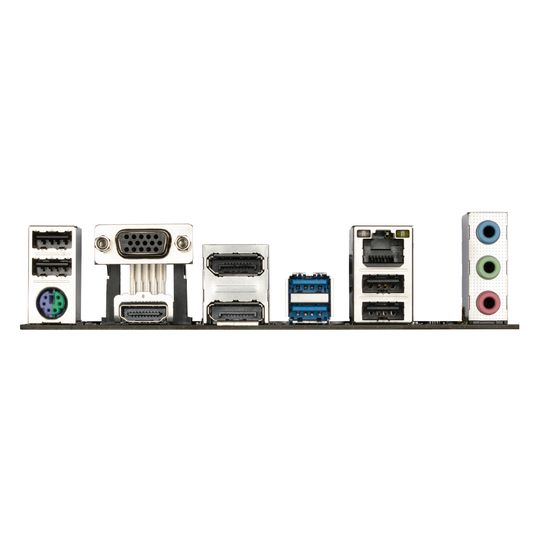

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| Ethernet LAN (RJ-45) ports: | 1 |
| PS/2 ports quantity: | 1 |
| VGA (D-Sub) ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| HDMI version: | 2.0 |
| DisplayPorts quantity: | 2 |
| DisplayPort version: | 1.2 |
| Headphone outputs: | 3 |
| Microphone in: | Yes |
| USB connector type: | USB Type-A |
| Network | |
|---|---|
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Wi-Fi: | No |
| Features | |
|---|---|
| Motherboard chipset: | Intel H610 Express |
| Audio output channels: | 7.1 channels |
| Product colour: | Brown |
| PC health monitoring: | Fan, Temperature, Voltage |
| Component for: | PC |
| Motherboard form factor: | mini ITX |
| Motherboard chipset family: | Intel |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 slots: | 1 |
| Number of M.2 (M) slots: | 1 |
| BIOS | |
|---|---|
| BIOS type: | UEFI AMI |
| BIOS memory size: | 256 Mbit |
| ACPI version: | 5.0 |
| Clear CMOS jumper: | Yes |
| Desktop Management Interface (DMI) version: | 2.7 |
| System Management BIOS (SMBIOS) version: | 2.7 |
| Logistics data | |
|---|---|
| Country of origin: | China |
| Products per shipping (inner) case: | 1 pc(s) |
| Harmonized System (HS) code: | 84733020 |
| Battery | |
|---|---|
| Battery weight: | 3 g |
| Lithium weight per battery: | 0.07 g |
| Number of battery cells: | 1 |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Packaging data | |
|---|---|
| Package width: | 222 mm |
| Package depth: | 180 mm |
| Package height: | 65 mm |
| Package weight: | 711 g |
| Weight & dimensions | |
|---|---|
| Width: | 170 mm |
| Depth: | 170 mm |
| Height: | 35 mm |
| Packaging content | |
|---|---|
| Cables included: | SATA |
| Batteries included: | Yes |
| Bundled software: | Norton Internet Security (OEM version), LAN bandwidth management software |
| Technical details | |
|---|---|
| Warranty period: | 3 year(s) |
