Móðurborð 1700 ASRock Z790M-ITX/WiFi DDR5 itx

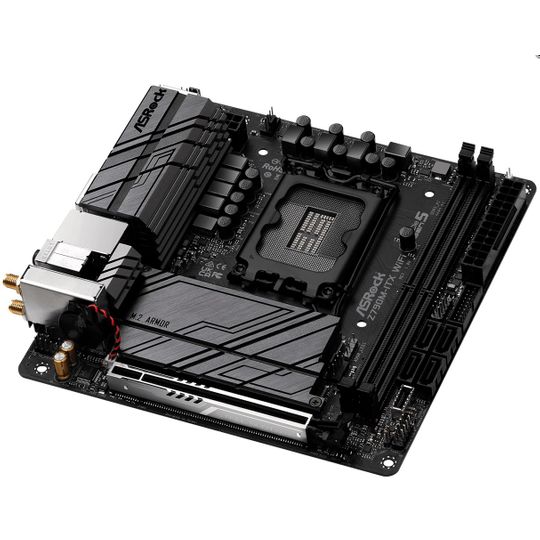

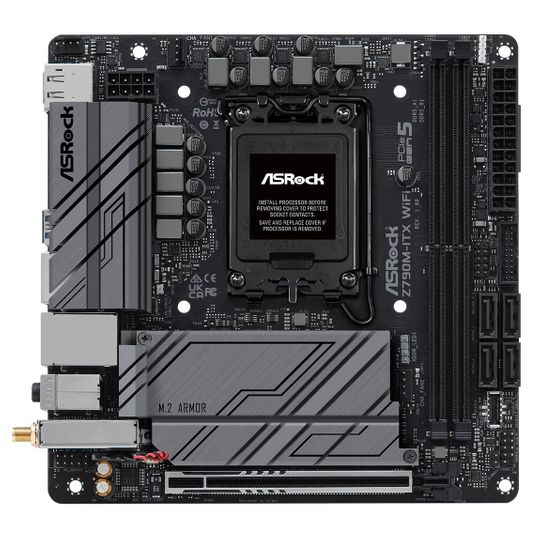

ASRock Z790M-ITX WiFi ITX Motherboard for Intel LGA1700 CPUs
Main Features
-
Supports 13th Gen & 12th Gen Intel Core Processors
-
Dr.MOS Phase Power Design
-
2 x DDR5 DIMMs, supports
-
1 PCIe 5.0 x16
-
Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
-
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
-
1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
-
1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
-
Intel 2.5G LAN, Intel 1G LAN
-
802.11ax Wi-Fi 6E + Bluetooth
SpecificationsCPU
CPU Socket Socket 1700 CPU Brand Intel Installed Processors (max) 0 (1) Supported Processor Manufacturer Intel Supported Processors 13th Gen & 12th Gen Intel Core Processors 64-bit Support Yes Socket LGA1700 Rear Panel I/O Ports

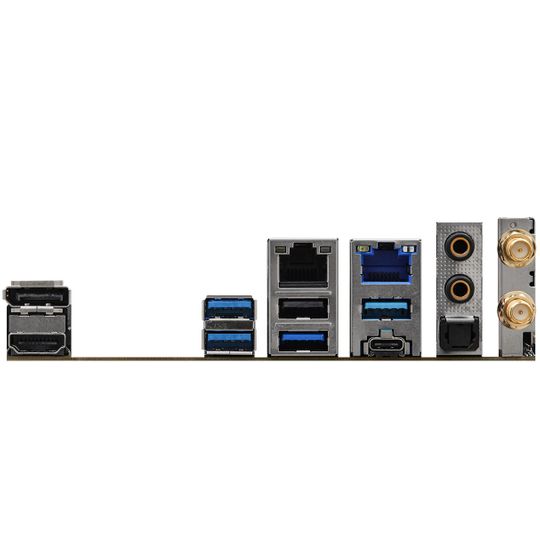

USB Ports 1 x USB-C 3.2
4 x USB 3.1
1 x USB 2.0DisplayPorts 1 x DisplayPort 1.4 HDMI Port 1 x HDMI 2.1 RJ-45 Ports 2 x RJ-45 Audio Line Out Ports 1 x 3.5mm Jack Microphone In Port 1 x 3.5mm Jack S/PDIF Port 1 x S/PDIF Optical Out Antenna Connector(s) 2 x SMA Antenna Internal I/O Connectors
SATA Connectors 4 x SATA III USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)Front Panel Connectors 1 x Front Panel
1 x Front AudioCooling Fan Support 1 x CPU fan header (supports 1 port)
1 x CPU/Water Pump fan header
2 x Chassis fan headersPower Connector Port 1 x 24-pin ATX
1 x 8-pin EPSOther Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4 or SATA)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header
1 x eDP Signal headerMemory
Memory Bus Speed Up to 6800+ (OC) MHz Memory Type DDR5 Maximum RAM 64 GB Memory Slot 2 x DIMM Motherboard
Northbridge Z790 RAID Supported Yes RAID Format RAID 0, 1, 5, 10 SATA Supported Yes Expansion
Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot Graphics Device
Integrated Graphics Supported Yes Sound
Integrated Sound Realtek ALC897 Network
Integrated Network Intel I226V
Intel I219VNetwork Speeds Supported I226V: Up to 2.5 Gbps
I219V: Up to 1 GbpsWireless LAN Yes (Wi-Fi 6E) Wireless Network Speed Up to 2.4 Gbps Bluetooth Yes Bluetooth Version 5.2 System Requirements
Operating Systems Supported Microsoft Windows 11 64-bit System
BIOS 128Mb AMI UEFI Legal BIOS with GUI support Software Included (may be trial or restricted) Yes Drivers Yes Physical
Form Factor ITX Motherboard In The Box Motherboard
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 SocketsWidth 170 mm Length 170 mm Key Features
Wireless Network Yes Chipset Manufacturer Intel Memory Channel Dual On-board Audio Type 7.1 Number of SATA Ports 4 port(s) Number of USB Ports 6 port(s) SATA III Support Yes USB 3.0 Support Yes Multi GPU Support No VGA Connection No DVI Connection No HDMI Connection Yes DisplayPort Connection Yes Motherboard Form Factor ITX Motherboard Power Connectors 8-Pin Motherboard Chipset Intel Z790 Thunderbolt No Motherboard Model ASRock Z790M-ITX WiFi WiFi Speed 2400 Mbps USB 3.1 Support Yes Internal USB3.0 Header Yes M.2 Support Yes On-board RGB Control ASRock RGB LED Memory Speed 6800 MHz RGB Header Type 3-Pin ARGB Addressable RGB Yes Internal USB Type-C Header Yes Radiator Length mm Power Requirement (auto) 30 W Max. Memory Speed Supported (Non-overclocked) 4800 MHz Max Memory Speed Supported (overclocked) 6800 MHz CPU Power Pins (female) 8 Total M.2 Slots 2 Maximum NVMe M.2 ports 2 Maximum SATA M.2 ports 1 SATA ports 4 No. of front USB2.0 ports supported 2 No. of front USB3.0 ports supported 2 No. of front USB-C ports supported 1
