Hýsing M.2 NVMe Icybox 20Gbps USB-A/C IB-1916M-C32
ICYBOX Enclosure for 1x NVMe with USB 3.2 (Gen 2x2) Type-C® and Type-A interface IB-1916M-C32

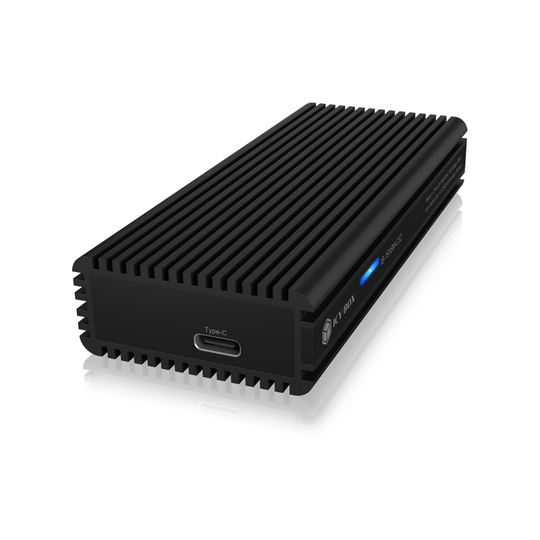

ROBUST: A special aluminium alloy makes this enclosure very stable and protects it from external damage. Excellent heat dissipation is achieved through an elegant cooling fin design
NEW STANDARD: USB 3.2 (Gen 2x2) realises transfer rates of up to 20 Gbit/s. This corresponds to up to 2500 MB per second. This means your data is transferred super fast

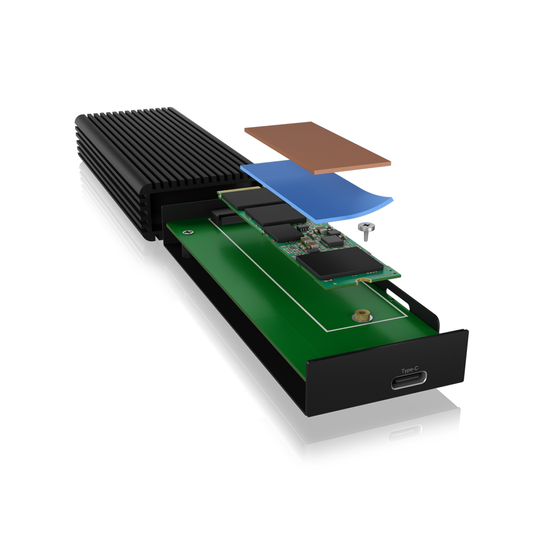

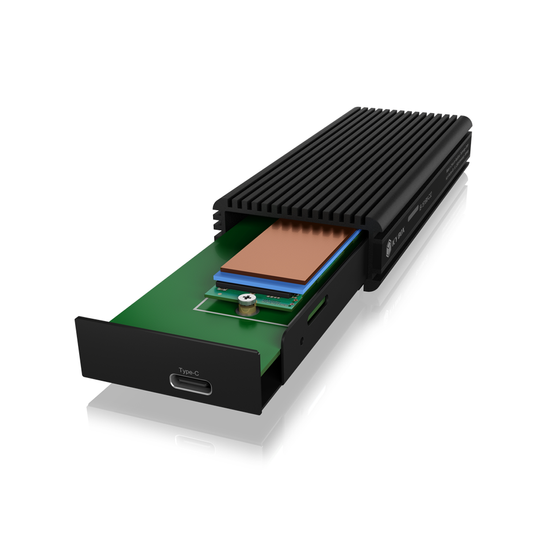

COOLING: The heat inside the heat sink is ideally conducted to the outside of the enclosure via the heat sink and the silicone heat pad. This keeps the NVMe SSD cool even under full load
EVERYTHING INCLUDED: The package contents of the external NVMe enclosure contain all the necessary cables to be prepared for any eventuality. No additional tools are needed to install the NVMe SSD
SPECIALISED: The external NVMe enclosure offers space for an NVMe with the dimensions 22x80 mm. Other common formats are not supported by this enclosure and cannot be installed
Key features
• High-grade aluminium enclosure with innovative heat sink design
• PCIe 3.0 x4 data transfer rates of up to 20 Gbit per second
• M-Key socket for M.2 NVMe SSDs, 22x 80 mm
• Interface to host computer: USB 3.2 (Gen 2x2) Type-C®
• Backwards compatible to USB 3.1/3.0/2.0
• Including an additional copper heat sink and silicone thermal pad inside
• Supports Windows®, macOS®
Specifications
- Model: IB-1916M-C32
- Article no.: 60729
- EAN code: 4250078170655
- Brand: ICY BOX
- Colour: Black
- Material: Aluminium, steel, acrylic
- Interface to host computer: USB 3.2 (Gen 2x2) Type-C®
- Transfer rate: Up to 20 Gbit/s
- UASP support: Yes
- Length of cable: 45cm
- Socket: M.2 M-Key PCIe x4 (NVMe)
- M.2 card size: 22x 80 mm
- M.2 interface: PCIe x4 (NVMe)
- Supported M.2 card keys: M.2 PCIe 3.0 M-Key
- SSD capacity: Up to 2TB
- Plug & Play: Yes
- Operating system: Windows and MAC
- Cooling: Passive
- LED: Power and access
- Power supply: Bus powered
Packing content

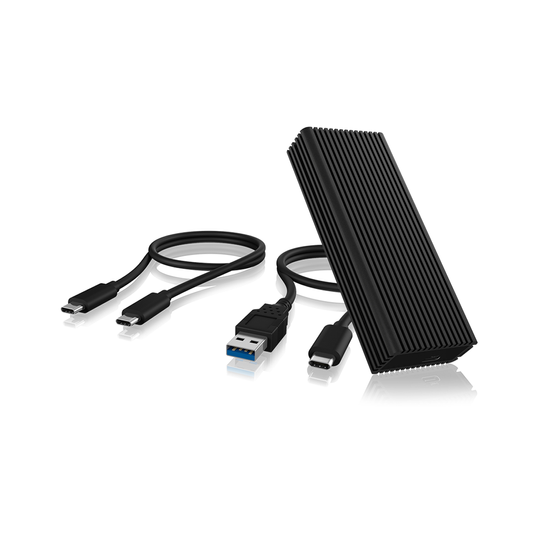

- 1x IB-1916M-C32, 1x Type-C® to Type-C® cable, 1x Type-C® to Type-A cable, 1x screw driver, 1x screw for M.2 fixation, 1x acrylic side cover, 1x copper heat sink, 2x silicone thermal pad, 1x user manual
