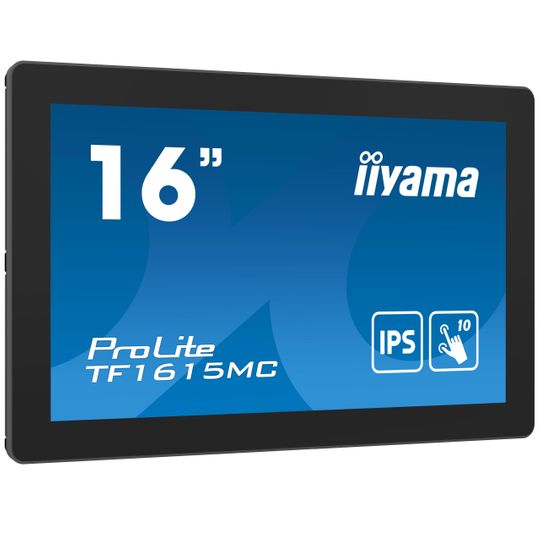

Skjár IIYAMA 16" TF1615MC-B1 VGA+HDMI+DP+USB Touch
The ProLite TF1615MC-B1 (15.6 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the ProLite TF1615MC-B1 can be equipped with optional external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

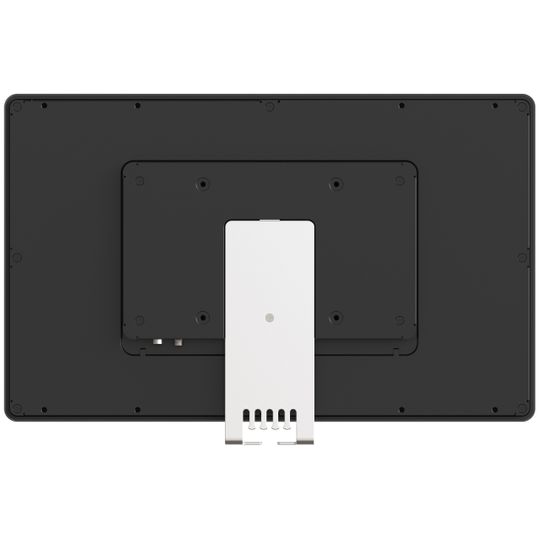

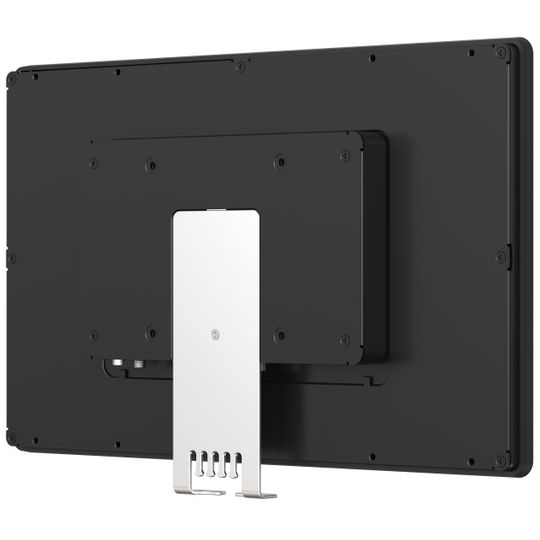

OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
| 15.6", IPS, 1920 x 1080, 450 cd/m², 31.5 - 67.5kHz, VGA, HDMI, DisplayPort, HDCP, 3.5 mm, VESA, DC 12 V, 398.5 x 246 x 42mm, 2500 g iiyama ProLite TF1615MC-B1, 39.6 cm (15.6"), 1920 x 1080 pixels, Full HD, 25 ms, Black |
|
| Display | |
|---|---|
| Display diagonal: | 39.6 cm (15.6") |
| Display resolution: | 1920 x 1080 pixels |
| HD type: | Full HD |
| Native aspect ratio: | 16:9 |
| Panel type: | IPS |
| Touchscreen: | Yes |
| Touchscreen technology: | Capacitive |
| Number of simultaneous touchpoints: | 10 |
| Display brightness (peak): | 450 cd/m² |
| Response time: | 25 ms |
| Screen shape: | Flat |
| Aspect ratio: | 16:9 |
| Contrast ratio (typical): | 1000:1 |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Pixel pitch: | 0.17925 x 0.17925 mm |
| Horizontal scan range: | 31.5 - 67.5 kHz |
| Display diagonal (metric): | 40 cm |
| Design | |
|---|---|
| Market positioning: | Business |
| Product colour: | Black |
| Certification: | CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA |

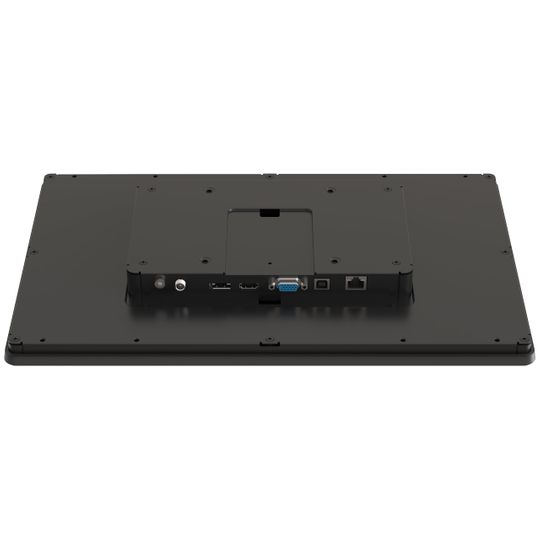

| Ports & interfaces | |
|---|---|
| Built-in USB hub: | Yes |
| VGA (D-Sub) ports quantity: | 1 |
| HDMI: | Yes |
| DisplayPorts quantity: | 1 |
| Headphone out: | Yes |
| HDCP: | Yes |
| Ergonomics | |
|---|---|
| VESA mounting: | Yes |
| Panel mounting interface: | 100 x 100 mm |
| On Screen Display (OSD): | Yes |
| On Screen Display (OSD) languages: | German, English, Spanish, French, Italian, Japanese |
| Power | |
|---|---|
| Energy efficiency class (SDR): | E |
| Energy efficiency class (HDR): | Not available |
| Energy consumption (SDR) per 1000 hours: | 11 kWh |
| Power consumption (typical): | 18 W |
| Power consumption (standby): | 1.5 W |
| Power consumption (off): | 0.3 W |
| Power supply type: | External |
| Energy efficiency scale: | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Packaging content | |
|---|---|
| Cables included: | DC, DisplayPort, HDMI |
| Power adapter included: | Yes |
| Quick start guide: | Yes |
| Weight & dimensions | |
|---|---|
| Width (without stand): | 398.5 mm |
| Depth (without stand): | 42 mm |
| Height (without stand): | 246 mm |
| Weight (without stand): | 2.5 kg |
| Packaging data | |
|---|---|
| Package width: | 470 mm |
| Package depth: | 343 mm |
| Package height: | 145 mm |
| Package weight: | 4.3 kg |
| Package type: | Box |
