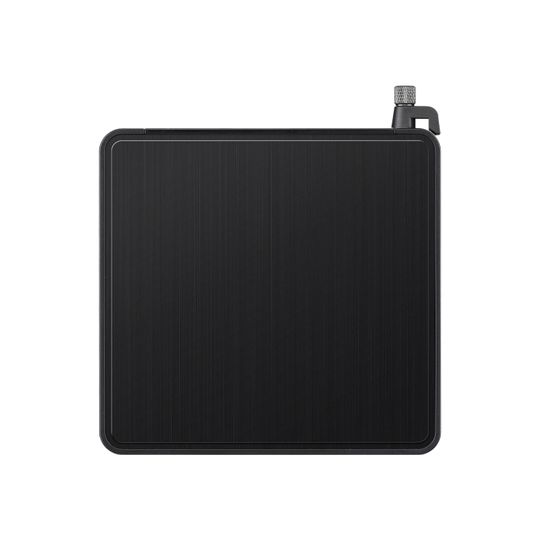

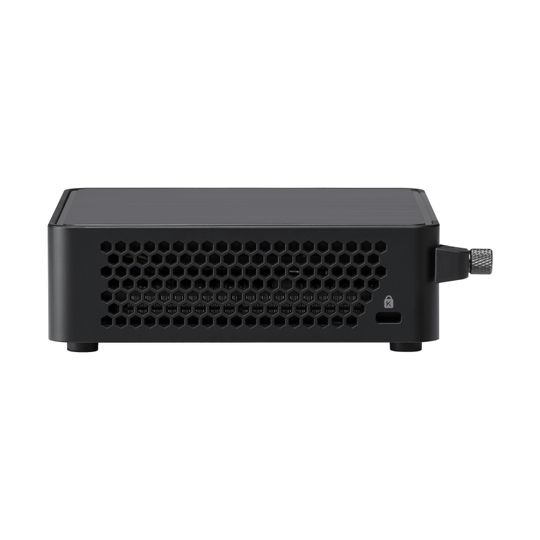

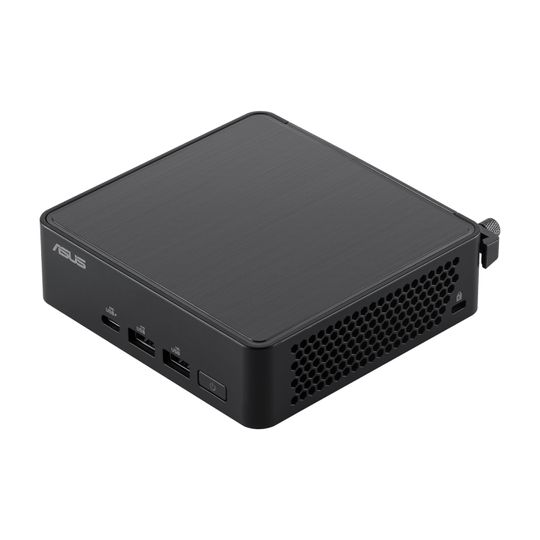

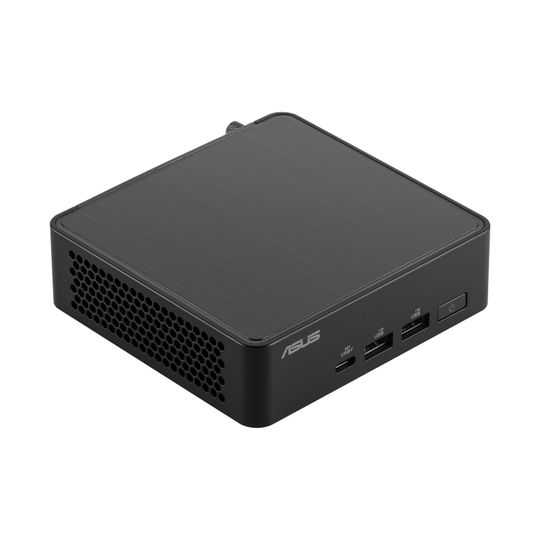

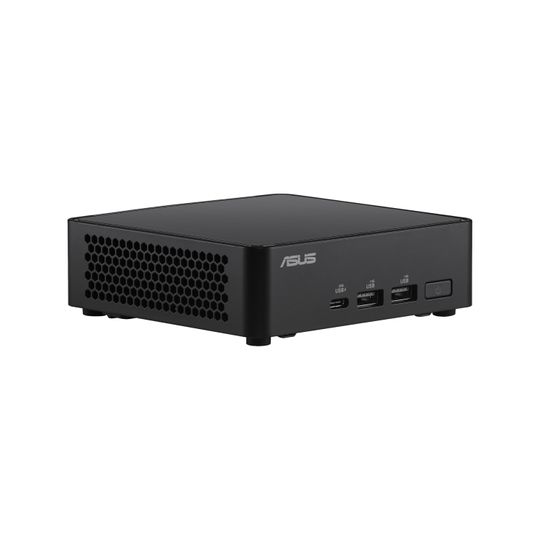

Barebone ASUS NUC14 PRO Core 3-100U 2xDDR5
Compact Power, Intelligent Performance
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
Toolless Design
ASUS NUC 14 Pro offers toolless access to make it easy to open up the chassis to assess the M.2 PCIe SSD module for easy upgrades.
Certified Bluetooth
dongle-free experience
A certified Bluetooth dongle offers hassle-free operation, cost savings, and resolves ITDM issues. It eliminates concerns such as lost dongles, PC Bluetooth compatibility, and USB port limitations on NUC.
The dongle-free approach simplifies pairing, enhances audio quality, and improves control in video collaboration calls.
| Intel Core 3 100U, Intel Graphics GPU, 2 x DDR5 SO-DIMM, Intel Wi-Fi 6E AX211, 2.5G LAN, Bluetooth, 5.3, Slim, EU ASUS NUC 14 Pro RNUC14RVKI300002I, UCFF, Mini PC barebone, DDR5-SDRAM, PCI Express, 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 90 W |
|
| Processor | |
|---|---|
| Processor manufacturer: | Intel |
| Processor family: | Intel Core 3 |
| Processor generation: | Intel Core (Series 1) |
| Processor model: | 100U |
| Processor cores: | 6 |
| Processor threads: | 8 |
| Performance cores: | 2 |
| Efficient cores: | 4 |
| Built-in processor: | Yes |
| Performance-core boost frequency: | 4.7 GHz |
| Efficient-core boost frequency: | 3.3 GHz |
| Processor cache: | 10 MB |
| Thermal Design Power (TDP): | 15 W |
| Memory | |
|---|---|
| Memory slots type: | SO-DIMM |
| Number of memory slots: | 2 |
| Maximum internal memory: | 96 GB |
| Supported memory clock speeds: | 5600 MHz |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Storage | |
|---|---|
| Supported storage drive types: | SSD |
| Storage drive sizes supported: | M.2 |
| Storage drive interface: | PCI Express |
| NVMe: | Yes |
| Graphics | |
|---|---|
| On-board graphics card: | Yes |
| Graphics card family: | Intel |
| On-board graphics card model: | Intel Graphics |
| Audio | |
|---|---|
| Built-in speaker(s): | No |
| Network | |
|---|---|
| Top Wi-Fi standard: | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards: | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| WLAN controller model: | Intel Wi-Fi 6E AX211 |
| Ethernet LAN: | Yes |
| Wi-Fi: | Yes |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |

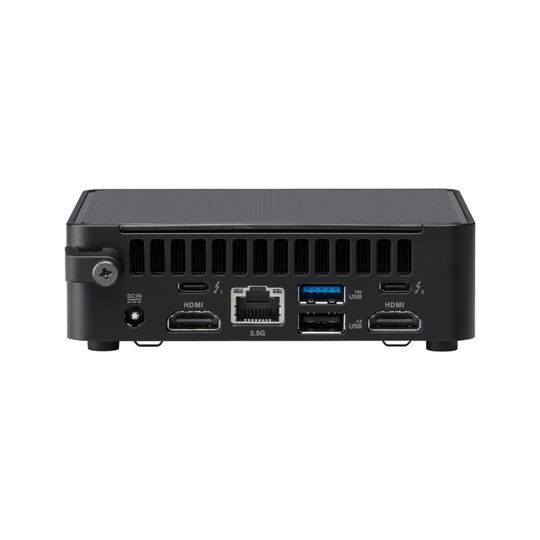

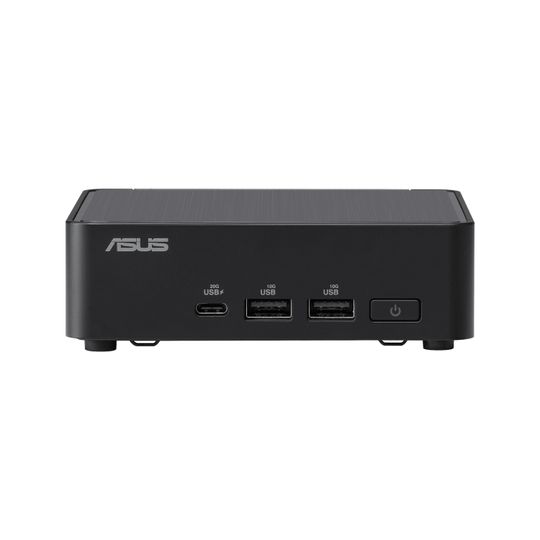

| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 3 |
| USB4 Gen 2x2 ports quantity: | 1 |
| HDMI ports quantity: | 2 |
| HDMI version: | 2.1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| Thunderbolt 4 ports quantity: | 2 |
| DC-in jack: | Yes |
| Design | |
|---|---|
| Chassis type: | UCFF |
| Product colour: | Black |
| Cooling type: | Active |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| VESA mounting: | Yes |
| Product type: | Mini PC barebone |
| Performance | |
|---|---|
| Number of processors supported: | 1 |
| Software | |
|---|---|
| Windows operating systems supported: | Windows 11 |
| Power | |
|---|---|
| Power supply type: | External AC adapter |
| Power supply: | 90 W |
| Weight & dimensions | |
|---|---|
| Width: | 117 mm |
| Depth: | 112 mm |
| Height: | 37 mm |
| Weight: | 480 g |
| Packaging content | |
|---|---|
| Power cord included: | Yes |
| Quick start guide: | Yes |
