Aflgjafi BeQuiet! Straight Power 12 1200W 80+Plat
WORLD CLASS QUIET AND EFFICIENCY
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification, virtually inaudible operation and PCIe 5.0 compatibility. Its reliability makes Straight Power 12 the power supply of choice for all users looking for a long-lasting companion to their build with current and next-gen GPUs.
| 80 PLUS Platinum, 1200W, 135 mm, 180 x 150 x 86 mm be quiet! Straight Power 12 | 1200W, 1200 W, 110 - 240 V, 1270 W, 50/60 Hz, 15/7.5 A, 150 W |
|
| Power | |
|---|---|
| Total power: | 1200 W |
| Peak power: | 1270 W |
| AC input voltage: | 110 - 240 V |
| AC input frequency: | 50/60 Hz |
| Input current: | 15/7.5 A |
| Power factor: | 0.99 |
| Combined power (+3.3V): | 150 W |
| Combined power (+12V): | 1200 W |
| Combined power (+5V): | 150 W |
| Max output current (+3.3V): | 25 A |
| Max output current (+12V1): | 100 A |
| Max output current (+5V): | 25 A |
| Max output current (-12V): | 0.5 A |
| Max output current (+5Vsb): | 3 A |
| Hold time: | 23 ms |
| Efficiency: | 92.4% |
| Power protection features: | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
|---|---|

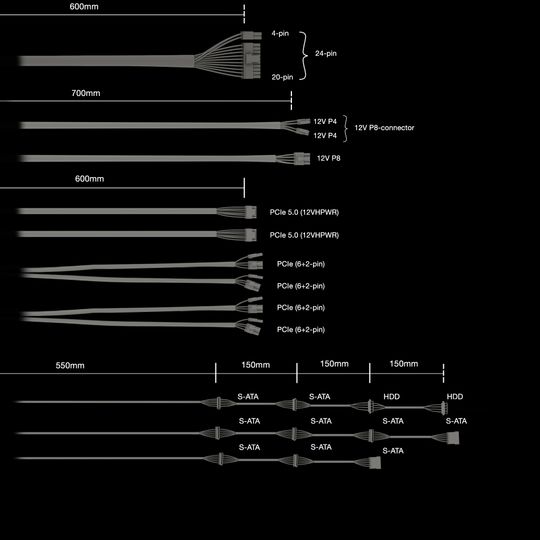

| Motherboard power connector: | 20+4 pin ATX |
| Motherboard power cable length: | 60 cm |
| Number of SATA power connectors: | 9 |
| Number of PATA power connectors: | 2 |
| SATA power cable length: | 550,700,850,1000 mm |
| Peripheral (Molex) power cable length: | 850 mm |
| EPS power connector (8-pin): | |
| EPS power connector (4+4 pin): | |
| PCI Express power connectors (6+2 pin): | 4 |
| PCI Express power connectors (16-pin): | 2 |
| PCI Express power cable length: | 60 cm |
| CPU power cable length: | 70 cm |
| Cabling type: | Modular |
| Performance | |
|---|---|
| 80 PLUS certification: | 80 PLUS Platinum |
| Supported motherboard form factors: | ATX, micro ATX, Mini-ATX |
| Purpose: | PC |
| Power supply unit (PSU) form factor: | ATX |
| ATX version: | 3.0 |
| EPS version: | 2.92 |

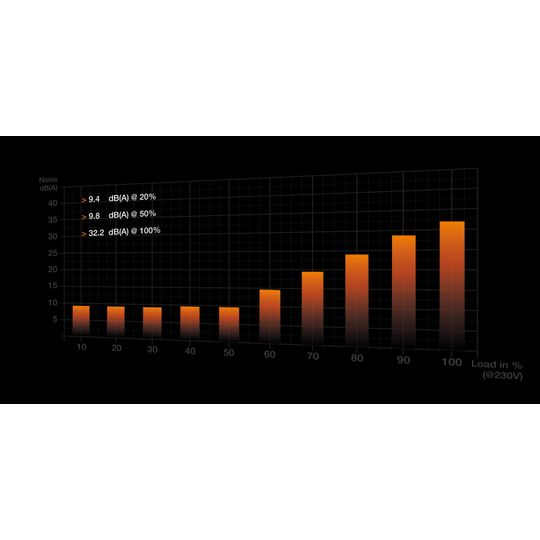

| Noise level: | 32.2 dB |
| Bearing technology: | FDB |
| Mean time between failures (MTBF): | 100000 h |
| Design | |
|---|---|
| Product colour: | Black |
| Cooling type: | Active |
| Fan diameter: | 13.5 cm |
| Number of fans: | 1 fan(s) |
| Fan speed: | 0 - 2600 RPM |
| On/off switch: | |
| Operational conditions | |
|---|---|
| Operating temperature (T-T): | 0 - 40 °C |
| Packaging content | |
|---|---|

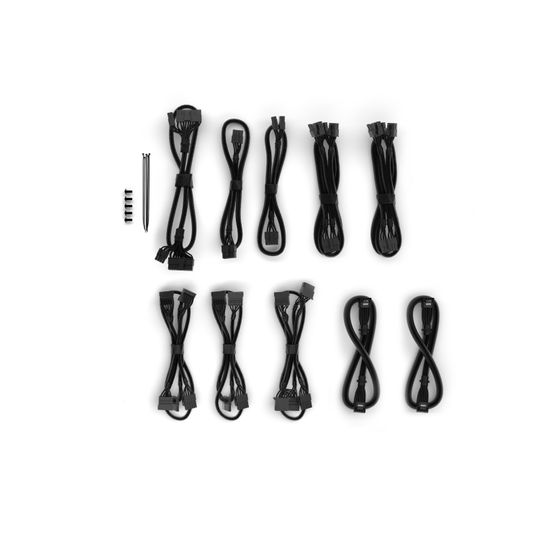

| Cables included: | CPU, SATA |
| Cable tie(s) included: | |
| Weight & dimensions | |
|---|---|
| Width: | 150 mm |
| Depth: | 180 mm |
| Height: | 86 mm |
| Weight: | 2.04 kg |
| Packaging data | |
|---|---|
| Package width: | 248 mm |
| Package depth: | 328 mm |
| Package height: | 102 mm |
| Package weight: | 3.89 kg |
| Package type: | Box |
| Technical details | |
|---|---|
| Sustainability compliance: | |
| Sustainability certificates: | RoHS, Federal Communications Commission (FCC), Triman, UKCA, ENERGY STAR, WEEE, CE, ErP |
| Warranty period: | 10 year(s) |
| Logistics data | |
|---|---|
| Shipping (inner) case length: | 44.7 cm |
| Shipping (inner) case width: | 28.2 cm |
| Shipping (inner) case height: | 34.6 cm |
| Shipping (inner) case net weight: | 17 kg |
| Products per shipping (inner) case: | 4 pc(s) |
