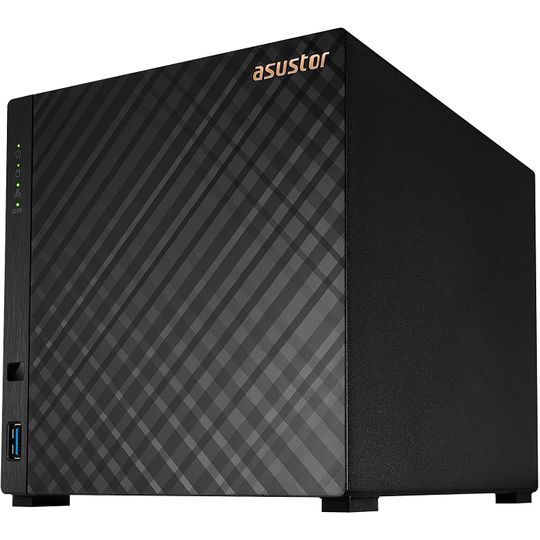

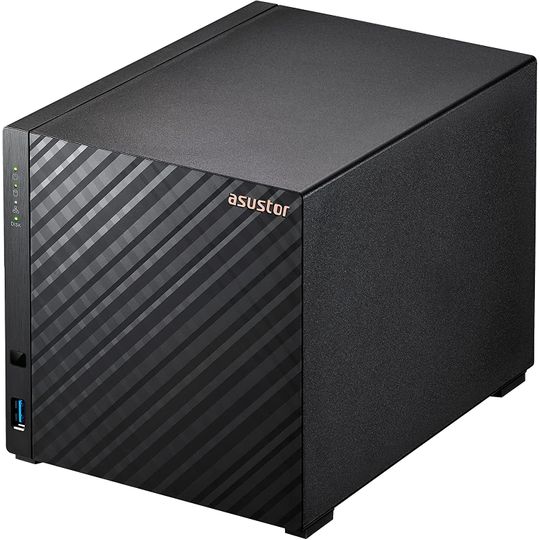

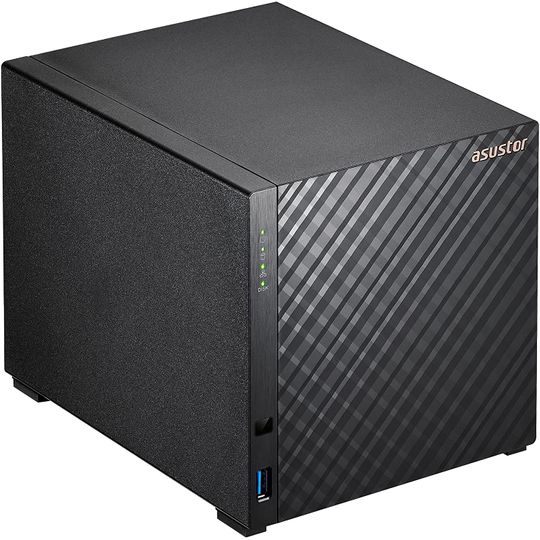

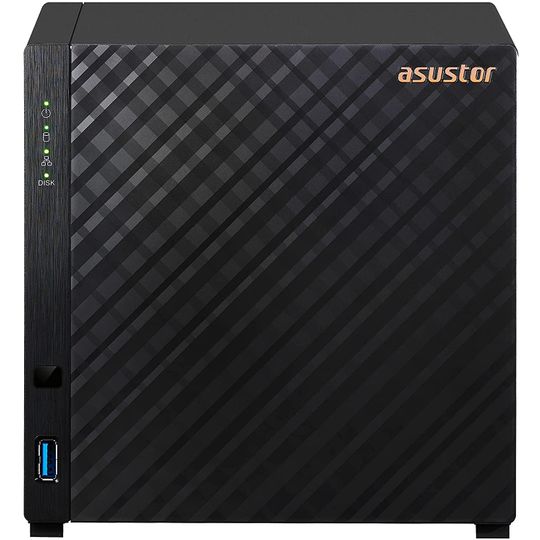

NAS Enclosure Asustor AS1104T 4-Bay 2,5Gbit
ASUSTOR Drivestor 4 AS1104T Realtek RTD1296 1.4GHz/ 1GB DDR4/ USB3.2 4-bay NAS(Diskless)
Specifications
Specifications
-
Mfr. Part Number:AS1104T
-
CPU:
-
CPU Model: Realtek RTD1296
-
CPU Architecture: ARM64 64-bit
-
CPU Frequency: Quad-Core 1.4GHz
-
-
Memory:
-
Memory: 1GB DDR4
-
Memory Expandable up to: not expandable
-
Flash Memory: 8GB eMMC
-
-
Storage:
-
HDD: 4 x SATA3 6Gb/s; 3.5" HDD
-
Maximum Internal Raw Capacity: 72 TB (18 TB HDD X 4, Capacity may vary by RAID types)
-
Maximum Drive Bays with Expansion Unit: 16
-
Maximum Raw Capacity with Expansion Units:216 TB (18 TB HDD X 12, Capacity may vary by RAID types)
-
-
External Ports:
-
Expansion: USB 3.2 Gen 1 x2
-
Network: 2.5 Gigabit Ethernet (2.5G/1G/100M) x 1
-
HDMI Output: N/A
-
-
Others:
-
System Fan:120 mm x 1
-
Power Supply Unit / Adapter:90W x1
-
Input Power Voltage: 100V to 240V AC
-
Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC
-
-
Operation:
-
Power Consumption: 22.8W (Operation) 9.41W (Disk Hibernation)
-
Noise Level: 19.7dB (HDD idle)
-
Operation Temperature: 0C~40C (32F~104F)
-
Humidity: 5% to 95% RH
-
-
Supported OS:
-
Windows XP, Vista, 7, 8, 10, Server 2003, Server 2008, Server 2012, Server 2016, Server 2019
-
macOS
-
UNIX, Linux, and BSD
-
-
Supported Browsers:Firefox, Chrome, Safari, Microsoft Edge
-
Network Protocols:CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
-
Connection and transmission:
-
TCP/IP (IPv4 & IPv6)
-
Link Aggregation: 0
-
Jumbo Frame (MTU)
-
VLAN
-
EZ Connect
-
Wireless Network
-
DDNS and EZ-Router
-
Supports Wake-on-LAN (WOL)
-
Supports Wake-on-WAN (WOW)
-
-
File System:
-
Internal Disk: EXT4
-
External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT
-
-
File Explorer:
-
Web-based File Management
-
ISO File Mounting
-
Share Links
-
Task Monitor
-
Browse Files on Local PC
-
Thumbnail Previews
-
Data Access via External Optical Drive
-
Supports video playback
-
-
Storage Management:
-
Volume Type: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
-
Support for Online RAID Level Migration
-
-
iSC SI/IP-SAN:
-
Maximum Targets: 256
-
Maximum LUNs: 256
-
Maximum Snapshot Versions of a Single LUN: 256
-
Target Masking
-
LUN Mapping
-
ISO File Mounting
-
Supports MPIO
-
Persistent (SCSI-3) Reservations
-
-
Disk Management:
-
Scheduled Bad Block Scans
-
Scheduled S.M.A.R.T Scans
-
-
Access Control:
-
Maximum Number of Users: 4096
-
Maximum Number of Groups: 512
-
Maximum Number of Shared Folders: 512
-
Maximum Number of Concurrent Connections:512
-
Supports Windows Active Directory
-
Supports Windows Active Directory / LDAP
-
-
System Administration:
-
Log Type: System Log, Connection Log, File Access Log
-
Real-time Online User Monitor
-
Real-time System Monitor
-
User Quota
-
Virtual Drive (ISO Mounting, Maximum 16)
-
UPS Support
-
-
Security:
-
AES 256-Bit Encryption
-
Firewall: Prevent Unauthorized Access
-
Alert Notifications: E-mail, SMS
-
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
-
Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/6/61/62/63/64/65/66/70/71 Series
-
RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data
-
-
Backup Solutions:
-
Rsync (Remote Sync) Backup
-
Cloud Backup
-
FTP Backup
-
External Backup
-
EZ Sync
-
-
Dimensions:165(H) x 164(W) x 218(D) mm
-
Weight:1.57 kg / 3.45 lbs
