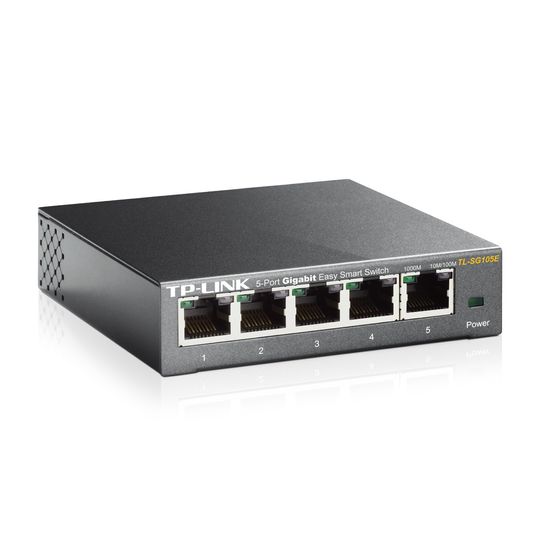

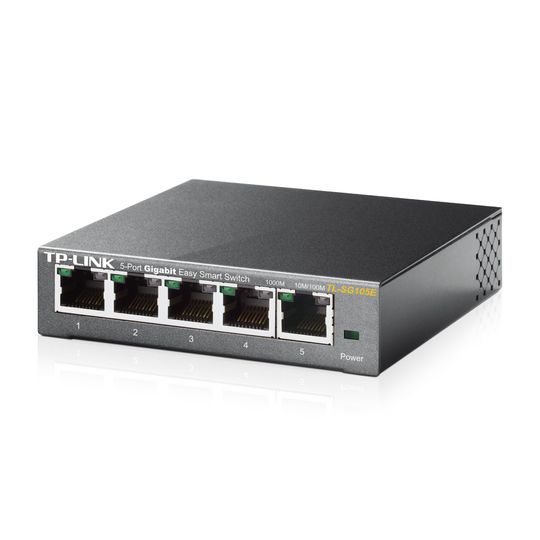

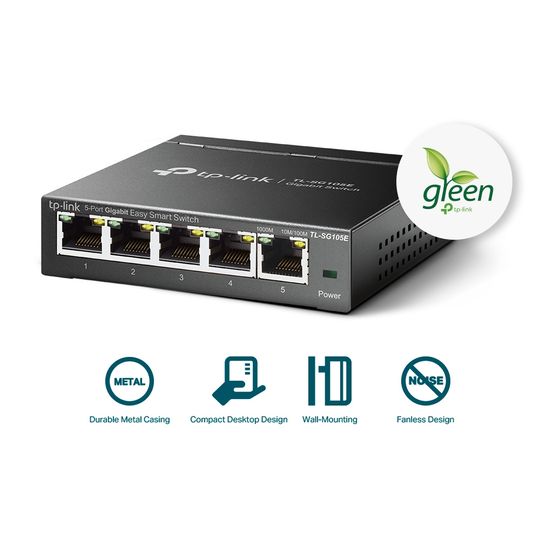

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch
Specifications
- Mfr. Part Number: TL-SG105E
- Features:

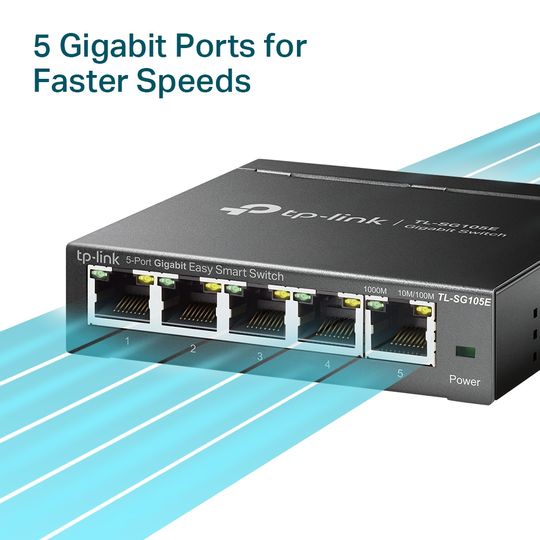

- 5 10/100/1000Mbps ports provide instant large file transfers
- Innovative energy-efficient technology reduces power consumption by up to 75%
- IEEE 802.3x flow control provides reliable data transfers
- 16K Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP Snooping optimizes multicast applications
- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
- Hardware Features:
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

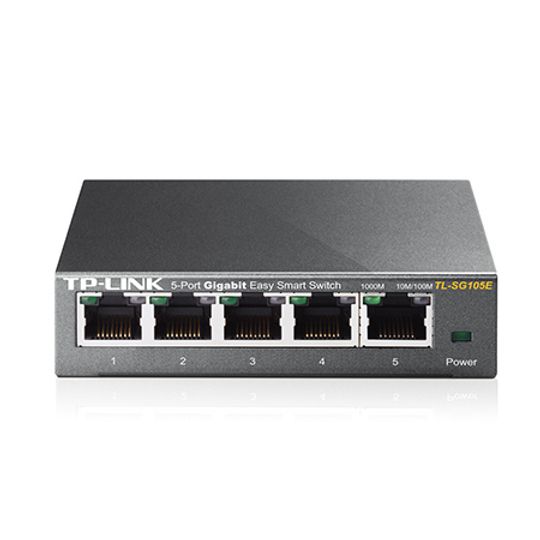

- Interface: 5x 10/100/1000Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless

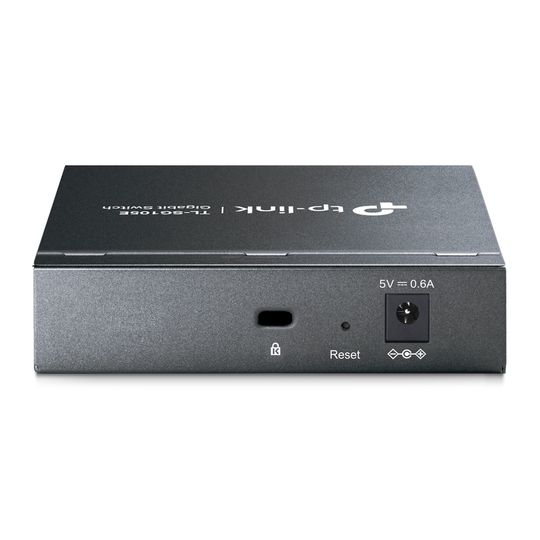

- Power Supply: 100-240VAC, 50/60Hz
- Dimensions (WxDxH ): 100.0 x 98.0 x 25.0 mm
- Performance:
- MAC Address Table: 8K
- Packet Buffer Memory: 2Mb
- Packet Forwarding Rate: 7.4Mpps
- Jumbo Frame: 16KB
- Software Features:
- Quality of Service: Support Port Based/802.1p Based priority; Support 4 priority queues; Rate Limit; Storm Control
- L2 Features: IGMP Snooping; Link Aggregation; Port Mirroring; Cable Diagnostics; Loop Prevention
- VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs); MTU/Port/Tag VLAN
- Transmission Method: Store-And-Forward
- Others:
- Certifications: CE, FCC, RoHS
- Package Contents: TL-SG105E, Power Cord, Installation Guide, Resource CD, Rubber Feet
- System Requirements: Microsoft Windows XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux
- Environment:
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
