Tone generator with amplifier probe. Designed to identify and trace wires or cables
PC/Multimedia Cable Tester. Tone Generator
This tone generator with amplifier probe identifies and traces wires or cables within a group without damaging the insulation. This tool applies for installing network and checking objects. The tone generator emits a single signal or multiple frequency signals and has two single test cartridges and a 4 p test joint. When wires are bounded and hidden in the wall or are imbedded by a barrier while you are using the tone generator, the tone signal which is sent by the main frame is very easy to test with the probe. The continuity of a wire, a fault of the wire, the polarity of the circuit, a network or the working voltage of the modular cable can be tested by this group tester. The pathway of the circuit and detail position can be judged by the pilot light and the tone of the speaker.
This tone generator with amplifier probe identifies and traces wires or cables within a group without damaging the insulation. This tool applies for installing network and checking objects. The tone generator emits a single signal or multiple frequency signals and has two single test cartridges and a 4 p test joint. When wires are bounded and hidden in the wall or are imbedded by a barrier while you are using the tone generator, the tone signal which is sent by the main frame is very easy to test with the probe. The continuity of a wire, a fault of the wire, the polarity of the circuit, a network or the working voltage of the modular cable can be tested by this group tester. The pathway of the circuit and detail position can be judged by the pilot light and the tone of the speaker.
Features
• To easily test the cable signal
• Equipped with volume control
• Including headphone connection
• To easily test the cable signal
• Equipped with volume control
• Including headphone connection

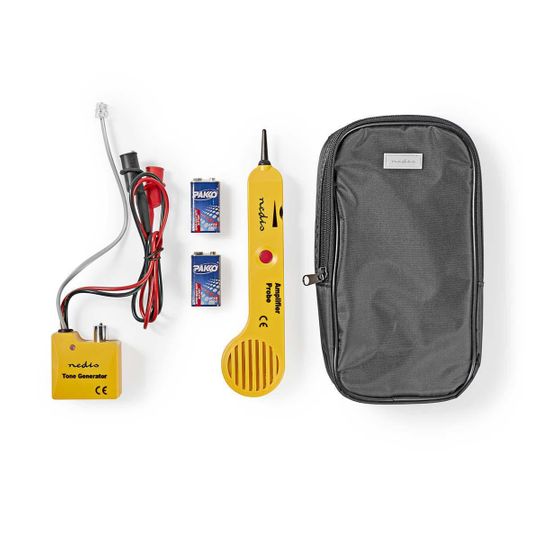

Package contents
Amplifier probe
Tone generator
2x 9 V battery
Storage bag
Quick start guide
Tone generator
2x 9 V battery
Storage bag
Quick start guide
General information
Features:
• The amplifier probe is designed to identify and trace wires or cables within a group without damaging the insulation
• Works with any tone generator to identify wires
• Volume control for increased sensitivity and adjustable to suit work environment

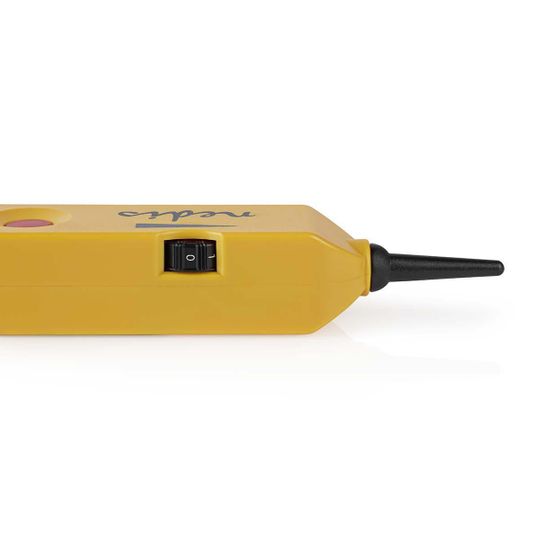

• Recessed On/Off button prevents battery drain
• It can be power with only one 9V battery and the device has a long battery life (approx. 100 hours of use)

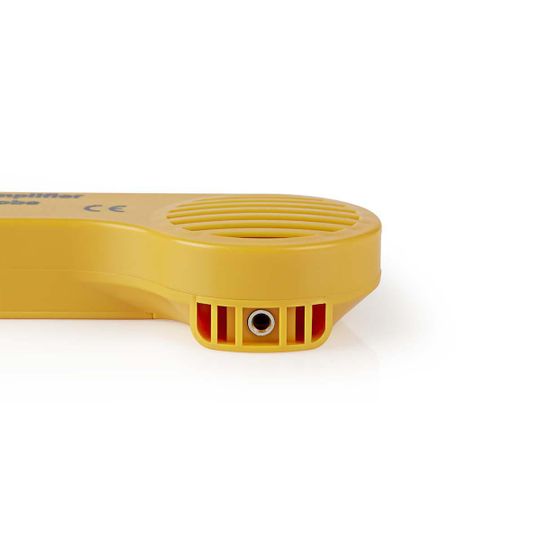

• A plug receptacle is provided for use with a headset or headphone

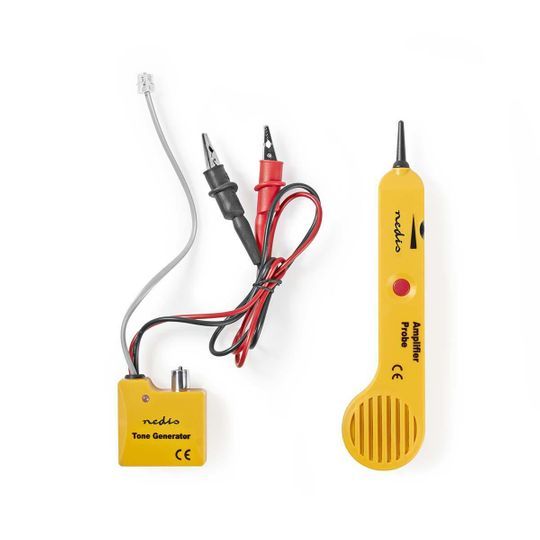

• Red and black test leads are provided, and it has a standard conductor modular cord and plug

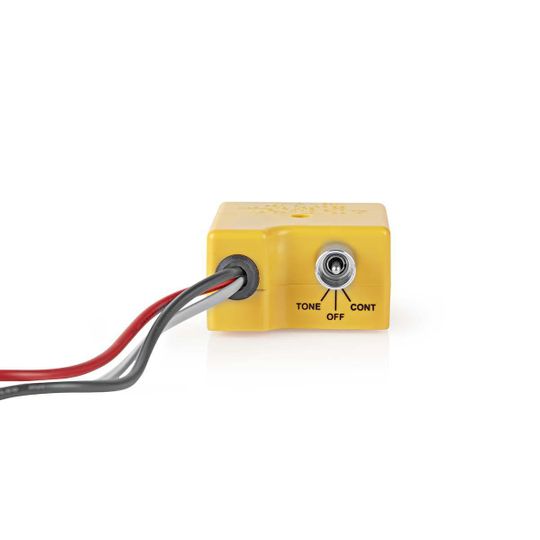

• A 3-position toggle switch controls the modes of operation plus a 3-colored LED is provided for the line polarity, continuity and voltage testing
• A tone selector switch, located inside the test set is provided for choosing either a single solid tone or dual alternating tone (CAUTION: Do'nt connect to an Active AC circuit exceeding 24V in this mode)
