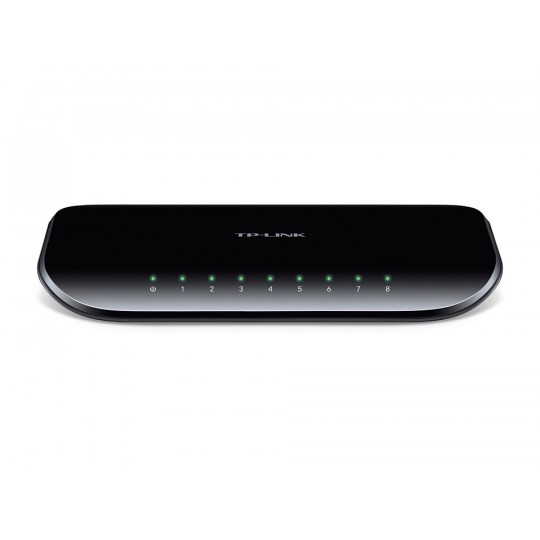

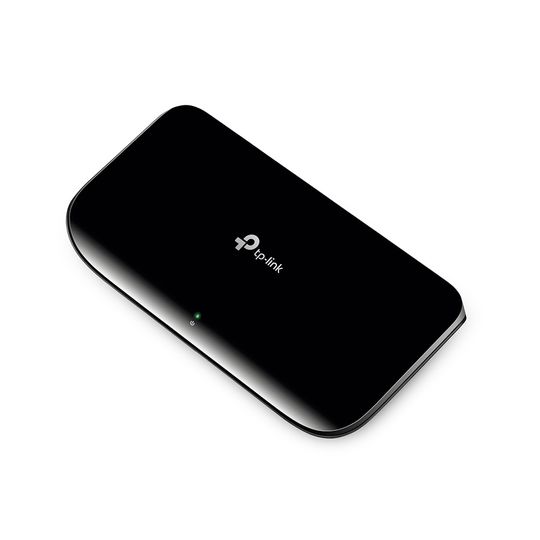

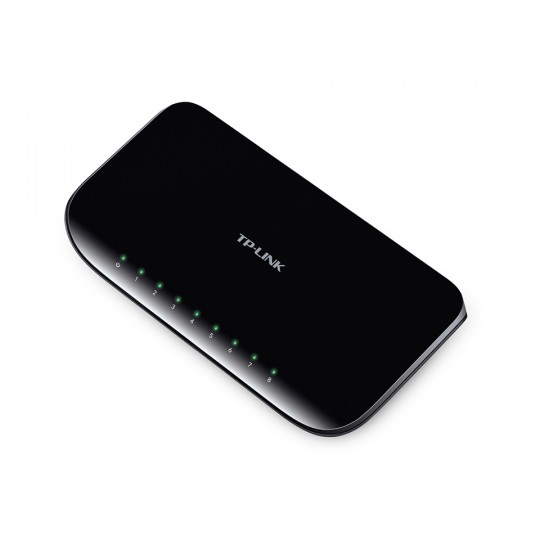

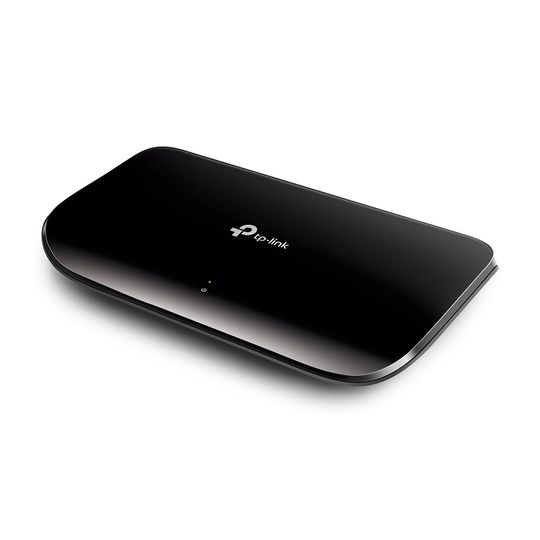

TL-SG1008D 1000Mbps 8-Port Unmanaged Desktop Switch
TP-Link TL-SG1008D 8-Port Unmanaged Gigabit Desktop Switch
Specificatons
- Mfr. Part Number: TL-SG1008D
- Features:
- Innovative energy-efficient technology saves power up to 80%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 16Gbps Switching Capacity
- 15KByte Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Fanless design ensures quiet operation
- Desktop or wall-mounting design
- Plug and Play design simplifies installation
- Hardware Features:
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

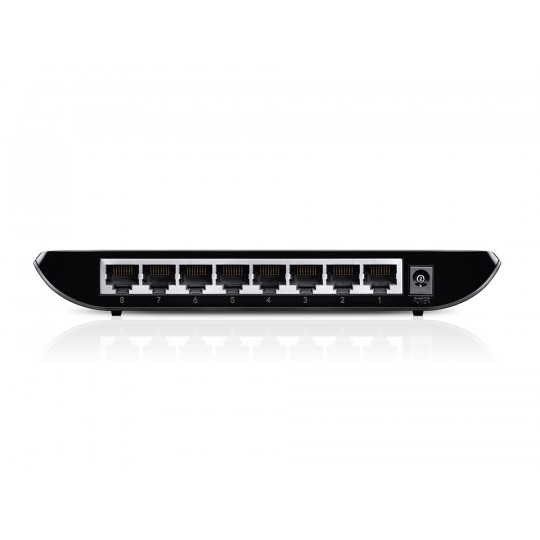

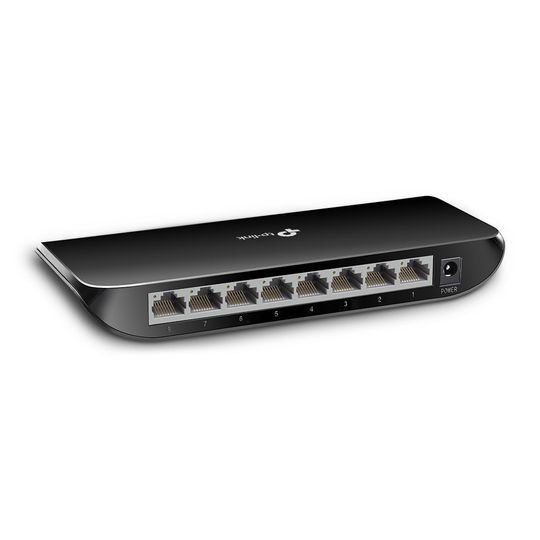

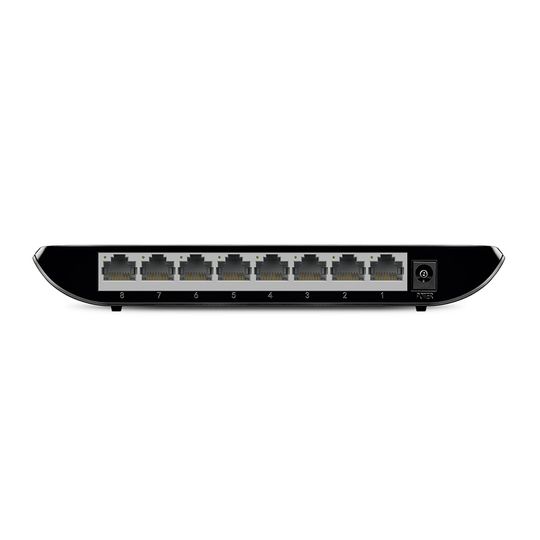

- Interface: 8x 10/100/1000Mbps RJ45 Ports; AUTO Negotiation, Auto MDI/ MDIX
- Fan Quantity: Fanless
- Power Consumption: Maximum - 4.63W (220V/50Hz)
- External Power Supply: 100-240VAC, 50/60Hz
- Buffer Size: 2Mbit
- Jumbo Frame: 15 KB
- Switching Capacity: 16 Gbps
- Dimensions (WxDxH ): 7.1 x 3.5 x 1.0 inch / 180.0 x 90.0 x 25.5 mm
- Software Features:
- Transmission Method: Store and Forward
- MAC Address Table: 8K
- Advanced Functions:
- Green Technology, Saving power up to 80%
- 802.3X Flow Control, Back Pressure
- Others:
- Certification: FCC, CE, RoHs
- Package Contents:
- 8-Port Gigabit Desktop Switch TL-SG1008D
- Power Adapter
- Installation Guide
- Environment:
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
