Table Mounting Icybox IB-MS314-T for two monitors incl gas pumps

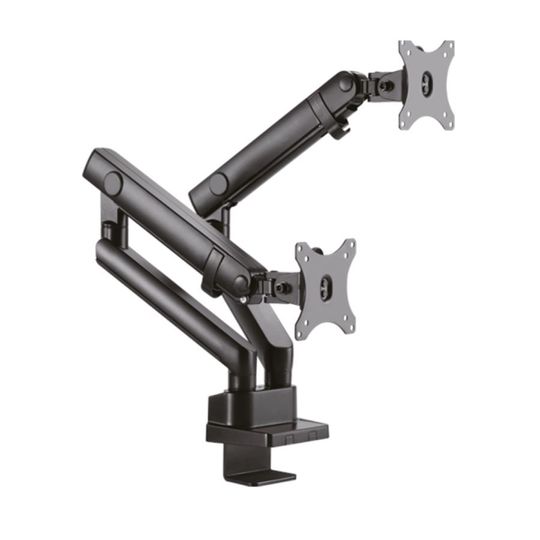

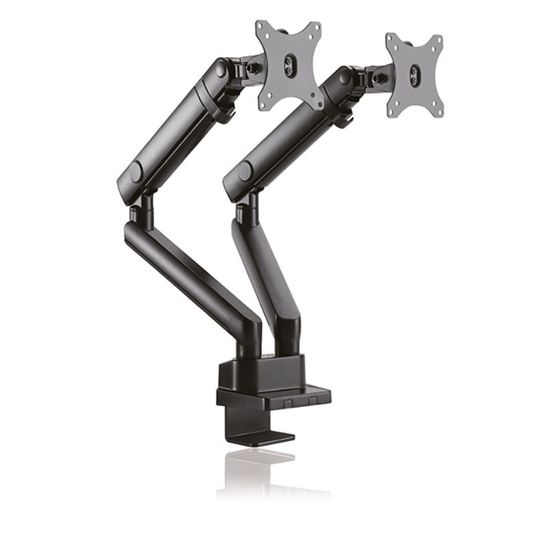

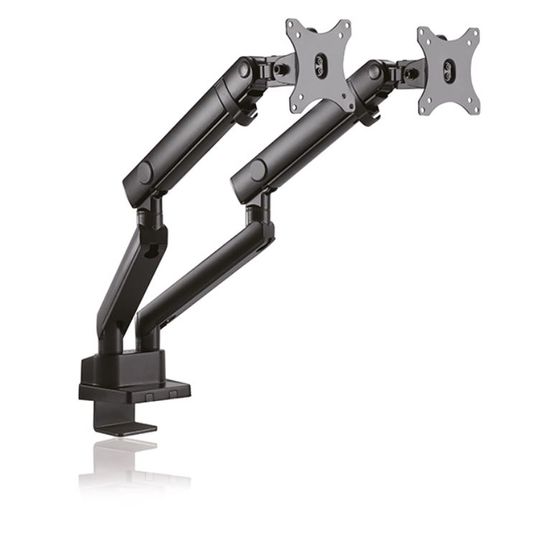

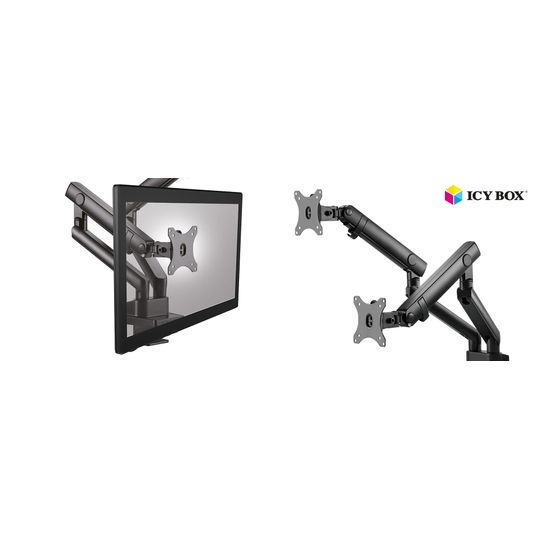

ICY BOX IB-MS314-T Monitor stand with table support for two monitors up to 32"
Features
• Creates space on the desktop and provides a more flexible and productive workspace
• Installs from top side: installs entirely from above the desk surface
• Smooth arm insertion: ensures easy installation
• Built-in spring tension gauge: for perfect weight adjustments
• Spring-assisted mechanism: allows to easily move up and down
• Cable management routes cables under the arm to reduce clutter for a clean look
• Quick-release VESA® plates: for easy installation
• Two mounting options: both desk clamp and grommet are included
• Supports 100x100 und 75x75 VESA® standards

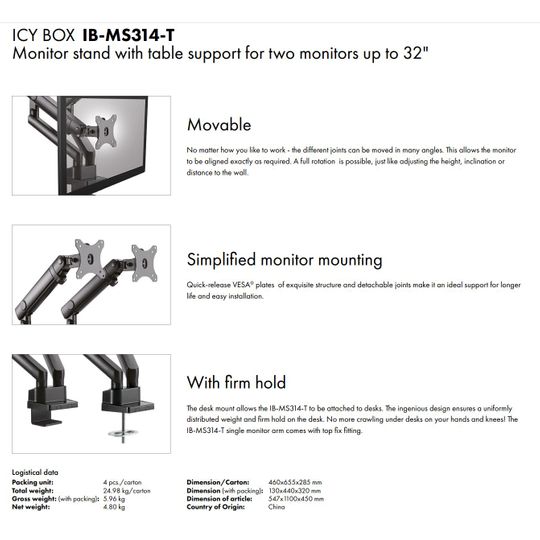

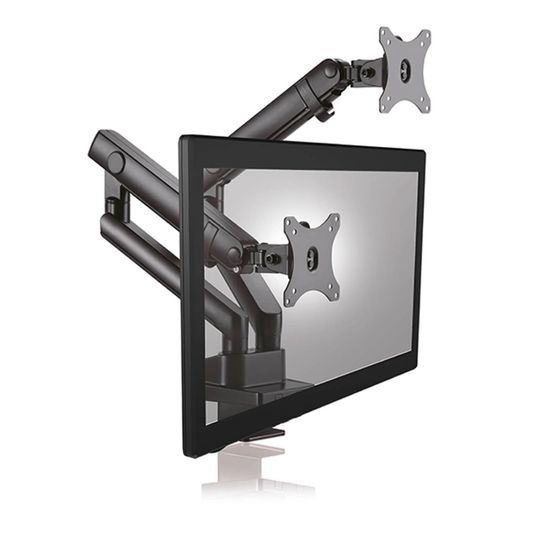

Movable
No matter how you like to work - the different joints can be moved in many angles. This allows the monitor to be aligned exactly as required. A full rotation is possible, just like adjusting the height, inclination or distance to the wall.
Simplified monitor mounting
Quick-release VESA® plate of exquisite structure and detachable joints make it an ideal support for longer life and easy installation.
With firm hold
The desk mount allows the IB-MS314-T to be attached to desks. The ingenious design ensures a uniformly distributed weight and firm hold on the desk. No more crawling under desks on your hands and knees! The IB-MS314-T single monitor arm comes with top fix fitting.
Specification
- Model: IB-MS314-T
- Article No.: 60715
- EAN: 4250078170495
- Brand: ICY BOX
- Maximum size of monitor: Up to 32"
- Colour: Black
- Material: Steel / plastic / aluminum alloy
- Number of monitors: 2
- Max. weight of monitor: Up to 8 kg/monitor

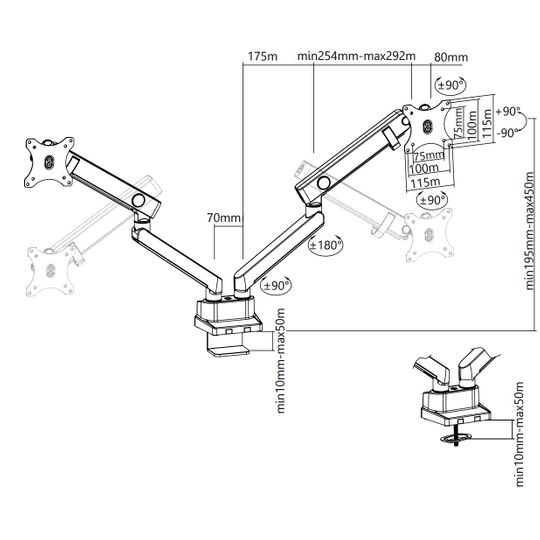

- Max arm extend: Up to 547 mm
- Max arm height: Up to 450 mm
- VESA® - Swivel (Hinge): +/- 90° horizontal
- VESA® - Tilt (Hinge): + 90°/-45° vertical
- Arm - Tilt: +/- 45° vertical
- VESA® - Rotate (Pivot): +/- 90° horizontal
- Base - Rotate (Pivot): +/- 180° vertical
- VESA® compatible: 75x75 / 100x100 mm
- Mounting: Full metall clamp or grommet base
- Table thickness: 10-50 mm
Packing content
IB-MS314-T, allen wrench, set of screws, quick installation guide
