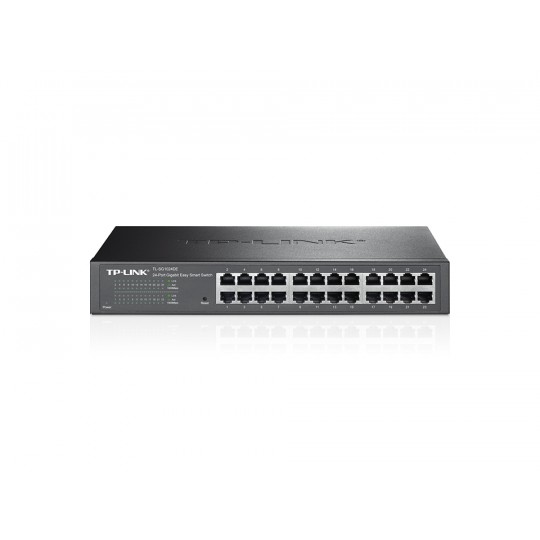

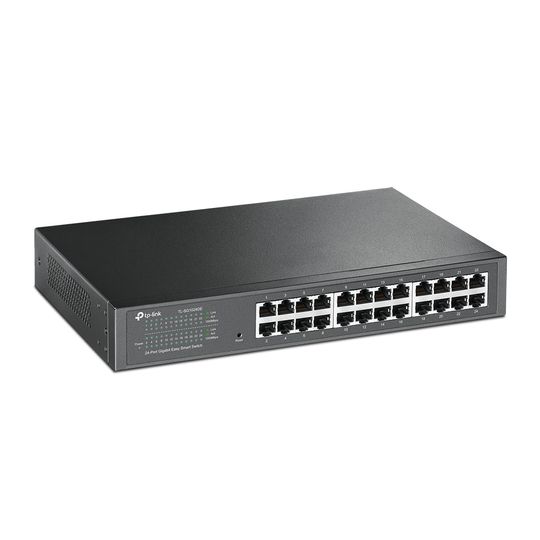

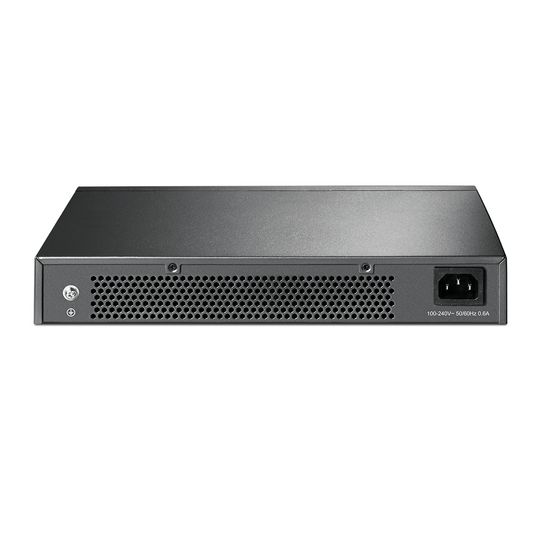

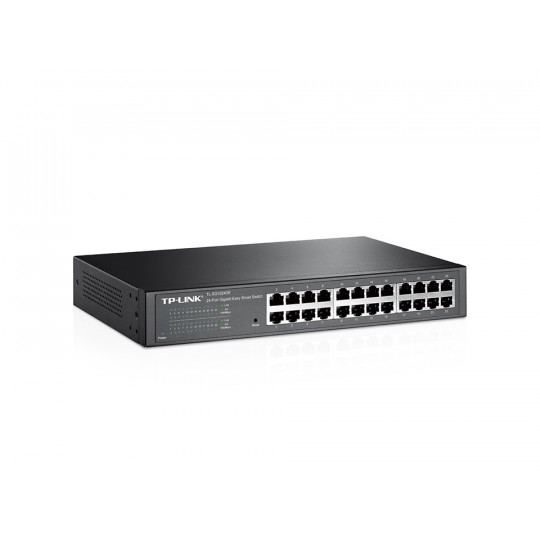

Switch TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch
TP-Link TL-SG1024DE 24-Port Gigabit Easy Smart Switch
Specifications
- Mfr. Part Number: TL-SG1024DE
- Features:
- 24 10/100/1000Mbps ports provide instant large file transfers
- Innovative energy-efficient technology reduces power consumption by up to 40%
- IEEE 802.3x flow control provides reliable data transfers
- 10K Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP Snooping optimizes multicast applications
- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
- Hardware Features:
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface: 24x 10/100/1000Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
- Fan Quantity: Fanless
- Power Supply: 100~240VAC, 50/60Hz
- Dimensions (WxDxH ): 11.6 x 7.1 x 1.7 inch / 294.0 x 180.0 x 44.0 mm
- Performance:
- Switching Capacity: 48Gbps
- MAC Address Table: 8k
- Packet Buffer Memory: 512KB
- Packet Forwarding Rate: 35.7Mpps
- Jumbo Frame: 10240 Bytes
- Software Features:
- Quality of Service: Support Port Based/802.1p Based priority; Support 4 priority queues; Rate Limit; Storm Control
- L2 Features: IGMP Snooping; Link Aggregation; Port Mirroring; Cable Diagnostics; Loop Prevention
- VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs); MTU/Port/Tag VLAN
- Transmission Method: Store-And-Forward
- Others:
- Certifications: CE, FCC, RoHS

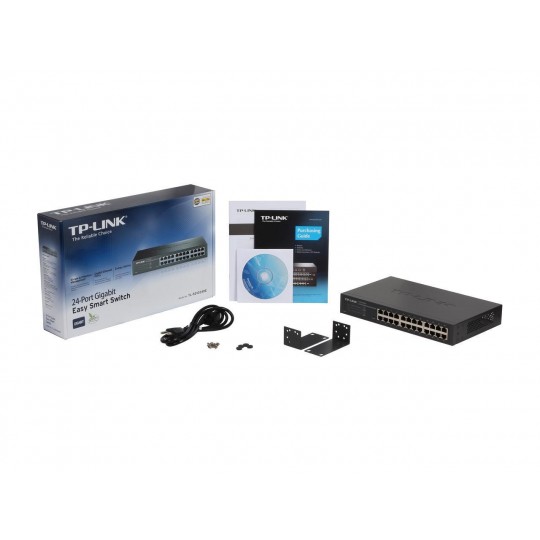

- Package Contents: TL-SG1024DE, Power Cord, Installation Guide, Resource CD, Rackmount Kit, Rubber Feet
- System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, MAC OS, NetWare, UNIX or Linux
- Environment:
- Operating Temperature: 0oC~40oC (32oF~104oF)
- Storage Temperature: -40oC~70oC (-40oF~158oF)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
