Switch TP-Link TL-SG1024D 24 port Gigabit Rackmount Switch

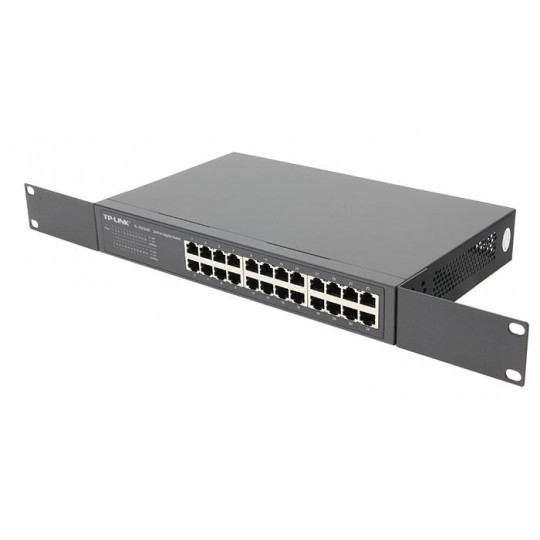

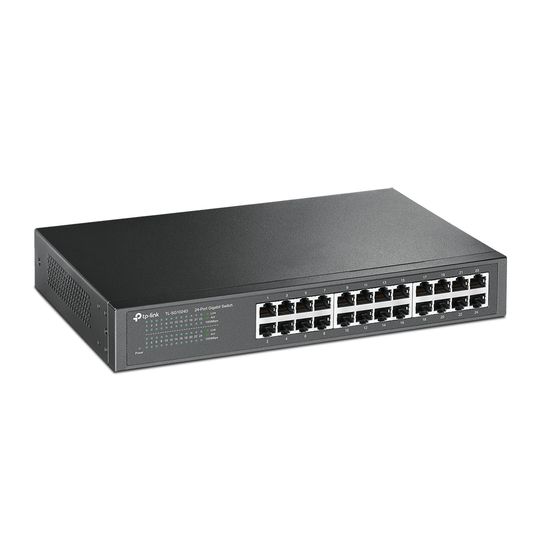

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch
Specifications
- Mfr. Part Number: TL-SG1024D
- Features:
- Innovative energy-efficient technology saves power up to 20%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 48Gbps Switching Capacity
- 10K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Store and forward Switching scheme
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
- Desktop and Rack-mountable design
- Plug and Play design simplifies installation
- Ports: 24x 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
- Switching Capacity: 48Gbps
- Transmission Method: Store-and-Forward
- Advanced Functions: 802.3X Flow Control, Back Pressure, Auto-Uplink Every Port
- Network Media:
- 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) - EIA/TIA-568 100 STP (maximum 100m)
- 100Base-Tx: UTP category 5, 5e cable (maximum 100m) - EIA/TIA-568 100 STP (maximum 100m)
- 1000Base-T: UTP category 5, 5e cable (maximum 100m)
- Safety & Emission: FCC, CE, RoHS
- Power: 100~240VAC, 50/60Hz
- Dimensions(WxDxH): 294.0 x 180.0 x 44.0 mm
