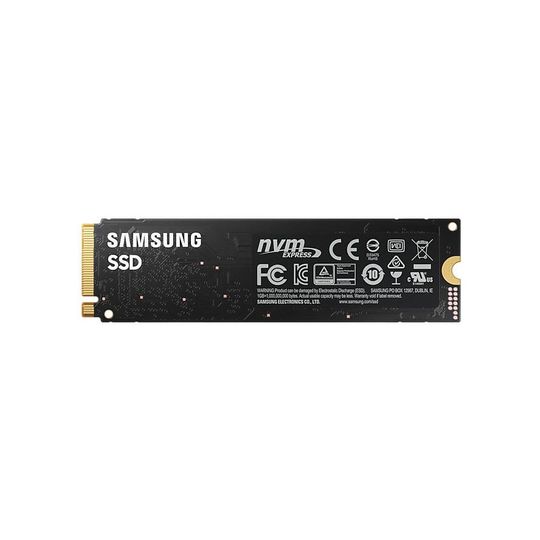

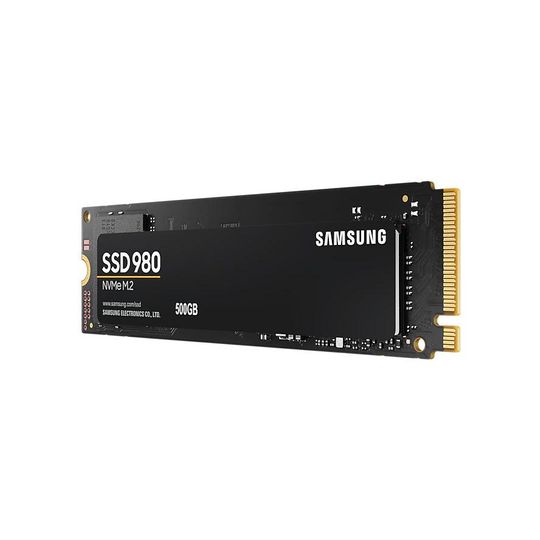

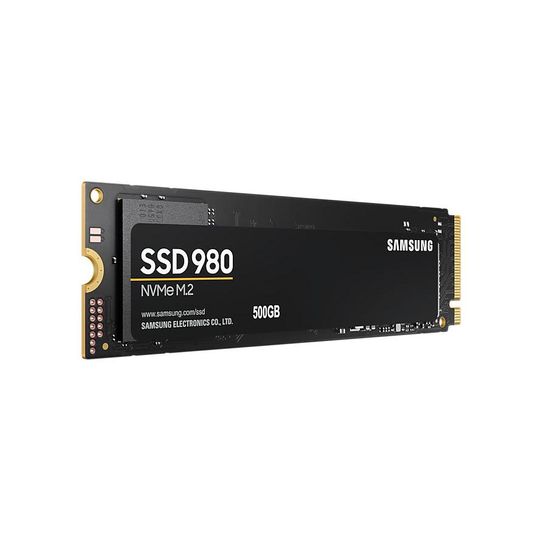

SSD drive M.2 NVMe 500GB Samsung 980 Basic Gen3
Samsung 980 500 GB PCIe 3.0 (up to 3.100 MB/s) NVMe M.2 Internal Solid State Drive (SSD)
About this item
|
Brand
|
Samsung
|
|
Digital storage capacity
|
500 GB
|
|
Hardware interface
|
PCI Express 3.0
|
|
Read speed
|
3100 Megabytes Per Second
|
|
Write speed
|
2600 Megabytes Per Second
|
|
Compatible devices
|
Laptop, Desktop
|
|
Cache size
|
122
|
Specifications
|
General
|
|
|---|---|
|
Device Type
|
Solid state drive - internal
|
|
Capacity
|
500 GB
|
|
Hardware Encryption
|
Yes
|
|
Encryption Algorithm
|
256-bit AES
|
|
Form Factor
|
M.2 2280
|
|
Interface
|
PCI Express 3.0 x4 (NVMe)
|
|
Features
|
TRIM support, Auto Garbage Collection Algorithm, Device Sleep support, Host Memory Buffer (HMB), NVM Express (NVMe) 1.4, Samsung V-NAND 3bit MLC Technology, Samsung Pablo Controller, Intelligent TurboWrite Technology, state-of-the-art thermal control, S.M.A.R.T.
|
|
Width
|
22.15 mm
|
|
Depth
|
80.15 mm
|
|
Height
|
2.38 mm
|
|
Weight
|
8 grams
|
|
Performance
|
|
|
SSD Endurance
|
300 TB
|
|
Internal Data Rate
|
3100 MBps (read) / 2600 MBps (write)
|
|
4KB Random Read
|
17000 IOPS
|
|
4KB Random Write
|
54000 IOPS
|
|
Maximum 4KB Random Write
|
470000 IOPS
|
|
Maximum 4KB Random Read
|
400000 IOPS
|
|
Reliability
|
|
|
MTBF
|
1,500,000 hours
|
|
Expansion & Connectivity
|
|
|
Interfaces
|
PCI Express 3.0 x4 (NVMe) - M.2 Card
|
|
Compatible Bay
|
M.2 2280
|
|
Power
|
|
|
Power Consumption
|
4.3 Watt (average), 5.9 Watt (maximum), 0.045 Watt (idle)
|
|
Software & System Requirements
|
|
|
Software Included
|
Samsung Magician Software
|
|
Miscellaneous
|
|
|
Compliant Standards
|
IEEE 1667
|
|
Manufacturer Warranty
|
|
|
Service & Support
|
Limited warranty - 5 years
|
|
Environmental Parameters
|
|
|
Min. Operating Temperature
|
0 °C
|
|
Max. Operating Temperature
|
70 °C
|
|
Shock Tolerance (operating)
|
1500 g @ 0.5 ms half-sine
|
