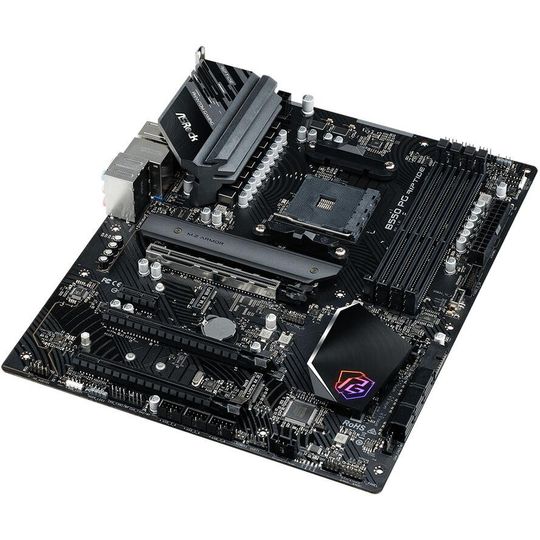

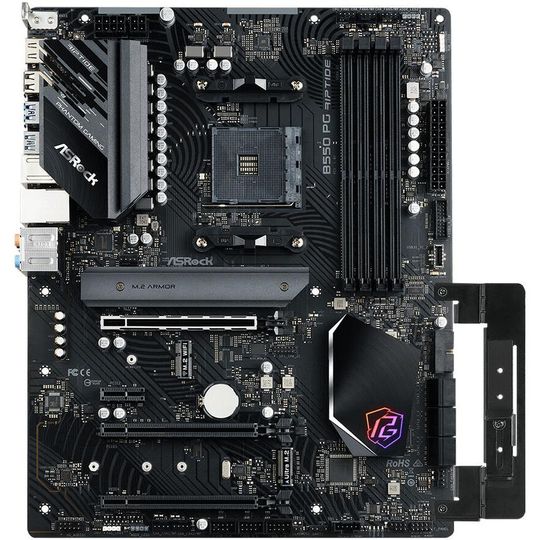

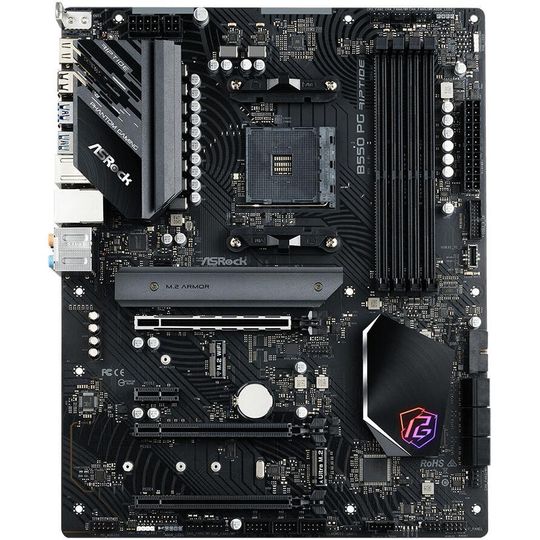

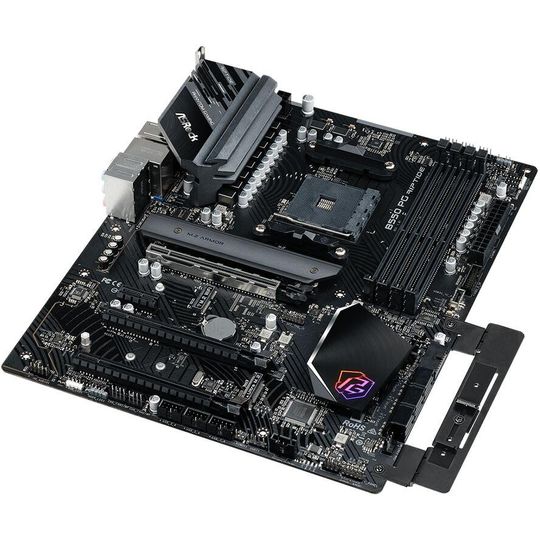

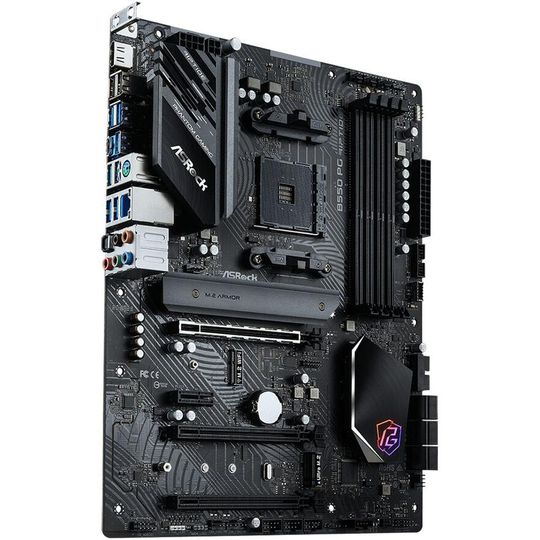

Motherboard ASRock B550 PG Riptide ATX for AMD AM4 CPUs DDR4
Motherboard ASRock B550 PG Riptide ATX for AMD AM4 CPUs
Technical specifications
Technical specifications
General
Packaged Quantity: 1
Processor
Installed Qty: 0
Max. Supported Qty: 1
Mainboard
Form Factor: ATX
Compatible Processors: Ryzen
Chipset Type: AMD B550
Supported RAM Technology: DDR4 SDRAM
Supported RAM Integrity Check: Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed: 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4933 MHz (O.C.), 4466 MHz (O.C.), 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.)
Processor Socket: Socket AM4
Power Connectors: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered): Unbuffered
RAM Slots: 4 DIMM slots
Interfaces
Internal Interfaces: 1 x audio - header, 6 x USB 2.0 - header, 1 x Thunderbolt - header, 1 x USB-C Gen2 - header, 4 x USB 3.2 Gen 1 - header
RAM
Features: AMD Memory Profile (AMP), Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max. Supported Size: 128 GB
Video Output
Type: Graphics adapter (CPU required)
Audio Output
Type: Sound card
Type: Sound card
Compliant Standards: High Definition Audio, Premium Blu-ray audio support
Audio Codec: Realtek ALC897
Audio: High Definition Audio (8-channel)
Networking
Network Controller: Killer E3100G
Network: 2.5 Gigabit Ethernet
Expansion Slots
Expansion Slots: 1 x CPU, 1 x M.2 socket (2230 M.2 Key E slot), 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen series CPUs Matisse); PCIe 3.0 x16 mode (Ryzen series APUs)), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x16 (x1 mode)
Interfaces
Storage Interfaces: SATA-600 / PCIe 3.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1, PCIe 4.0 -connectors: 1 x Ultra M.2 - RAID 0 / RAID 1, SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage: Serial ATA-600 (RAID), M.2 socket
USB / FireWire: USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen2
Storage Ports: 6 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Ultra M.2

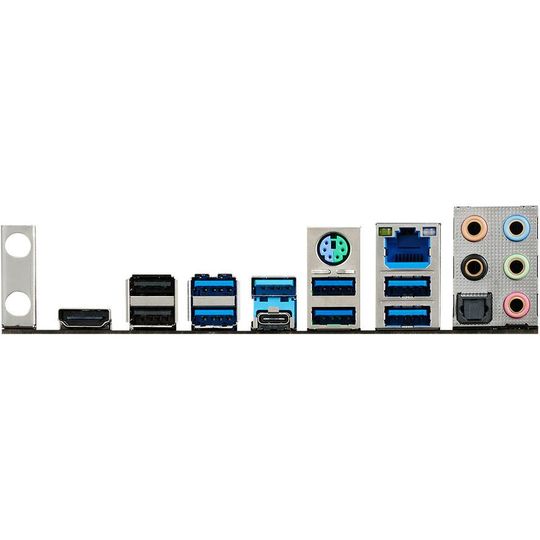

USB / FireWire Ports Configuration (Active): 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 6 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers): 1 x USB-C Gen 2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0
Software
Software
Software Included: ASRock Phantom Gaming LAN Software, ASRock Polychrome SYNC, Antivirus (Trial version), Drivers & utilities, Google Chrome Browser, Google ChromeToolbar
Dimensions & Weight
Dimensions: Width 30,5 cm, depth 24,4 cm
Weight: 1,861kg
Description
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea's double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
Weight: 1,861kg
Description
Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea's double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.
- Dr. MOS
Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - Premium 60A power choke
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - Killer Ethernet E3100
The Killer E3100 2.5 Gbps Ethernet controller is designed specifically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications. - Intel Killer Prioritization Engine
The Intel Killer Prioritization Engine detects and optimally prioritizes over 1,000 different games, apps, and websites to deliver amazing online experiences, ensuring you get your lowest in-game latencies by prioritizing your gaming traffic above everything else. - Smart Access Memory
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance. - PCIe 4.0 high-speed M.2 solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning-fast data transferring experience. - Rule your own lighting way - Polychrome RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. - Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. - Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear I/O for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. - Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. - Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is a fast and easy way to identify the source of the problem. - HDMI 4K @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
