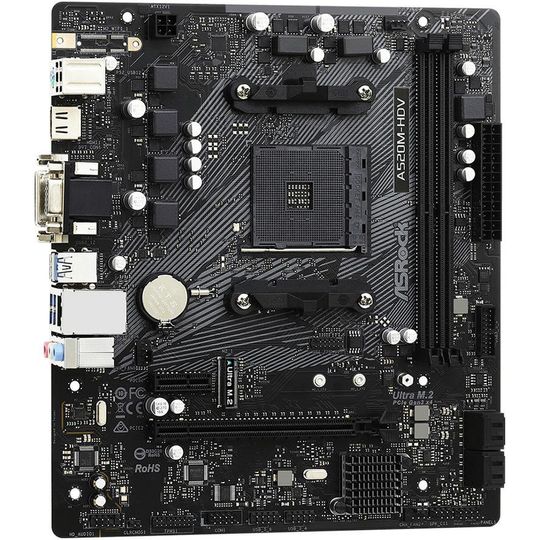

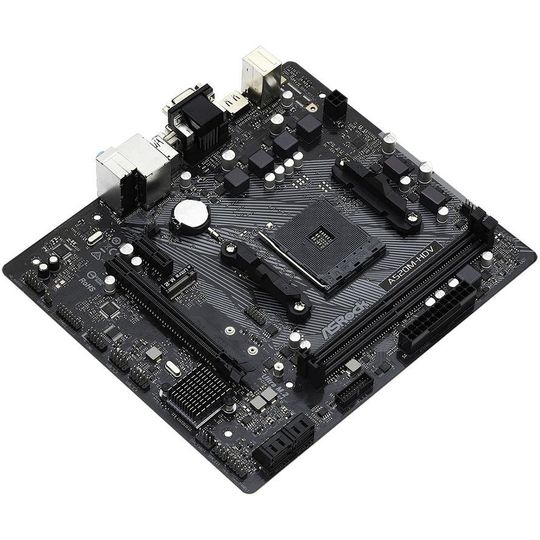

Motherboard ASRock A520M-HDV Socket AM4/ AMD A520/ DDR4/ SATA3&USB3.2/ M.2/ Micro ATX
ASROCK A520M-HDV Socket AM4/ AMD A520/ DDR4/ SATA3&USB3.2/ M.2/ Micro ATX Motherboard
Specifications
-
Mfr. Part Number:A520M-HDV
-
Unique Feature:
-
ASRock Super Alloy- Premium 50A Power Choke- Sapphire Black PCB- High Density Glass Fabric PCB
-
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
-
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
-
ASRock Live Update & APP Shop
-
-
CPU:
-
Supports 3rd Gen AMD AM4 Ryzen/ future AMD Ryzen Processors (3000 and 4000 Series Processors)
-
6 Power Phase design
-
-
Chipset:AMD A520
-
Memory:
-
Dual Channel DDR4 Memory Technology
-
2 x DDR4 DIMM Slots
-
AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
-
AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
-
Max. capacity of system memory: 64GB
-
Supports Extreme Memory Profile (XMP) memory modules
-
15 Gold Contact in DIMM Slots
-
-
BIOS:
-
128Mb AMI UEFI Legal BIOS with GUI support
-
Supports "Plug and Play"
-
ACPI 5.1 compliance wake up events
-
Supports jumperfree
-
SMBIOS 2.3 support
-
CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment
-
-
Graphic:
-
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
-
DirectX 12, Pixel Shader 5.0
-
Shared memory default 2GB. Max Shared memory supports up to 16GB
-
Three graphics output options: D-Sub, DVI-D and HDMI
-
Supports Triple Monitor
-
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
-
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
-
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
-
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
-
Supports HDR (High Dynamic Range) with HDMI 2.1
-
Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
-
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
-
Supports Microsoft PlayReady
-
-
Audio:
-
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
-
Supports Surge Protection
-
-
LAN:
-
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
-
Realtek RTL8111H
-
Supports Wake-On-LAN
-
Supports Lightning/ESD Protection
-
Supports Energy Efficient Ethernet 802.3az
-
Supports PXE
-
-
Slots:
-
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
-
1 x PCI Express 3.0 x1 Slot
-
-
Storage:
-
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
-
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
-
-
Connector:
-
1 x SPI TPM Header
-
1 x COM Port Header
-
1 x Chassis Intrusion and Speaker Header
-
1 x CPU Fan Connector (4-pin)
-
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
-
1 x 24 pin ATX Power Connector
-
1 x 4 pin 12V Power Connector
-
1 x Front Panel Audio Connector
-
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
-
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
-
-

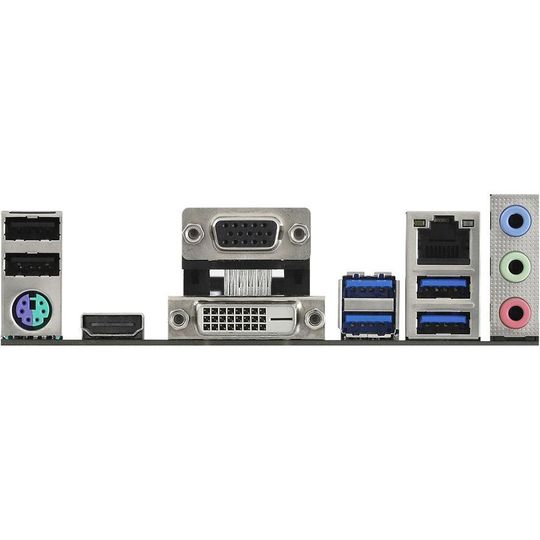

Rear Panel I/O:
-
1 x PS/2 Mouse/Keyboard Port
-
1 x D-Sub Port
-
1 x DVI-D Port
-
1 x HDMI Port
-
2 x USB 2.0 Ports (Supports ESD Protection)
-
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
-
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-
HD Audio Jacks: Line in / Front Speaker / Microphone
-
-
Software Features:
-
Software- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LAN
-
UEFI- ASRock Full HD UEFI- ASRock Instant Flash
-
-
Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories:
-
Quick Installation Guide, Support CD, I/O Shield
-
2 x SATA Data Cables
-
1 x Screw for M.2 Socket
-
-
Hardware Monitor:
-
Temperature Sensing: CPU, Chassis Fans
-
Fan Tachometer: CPU, Chassis Fans
-
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
-
Fan Multi-Speed Control: CPU, Chassis Fans
-
CASE OPEN detection
-
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
-
-
Form Factor:
-
Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
-
Solid Capacitor design
-
-
Operating System: Windows 10 64-bit
-
Certifications:
-
FCC, CE
-
ErP/EuP ready (ErP/EuP ready power supply is required)
-
