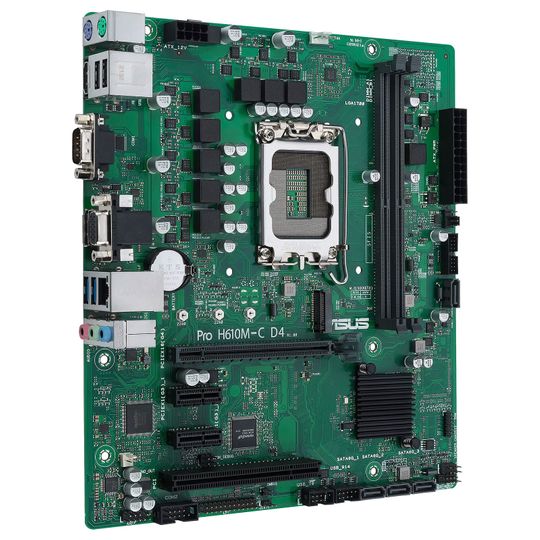

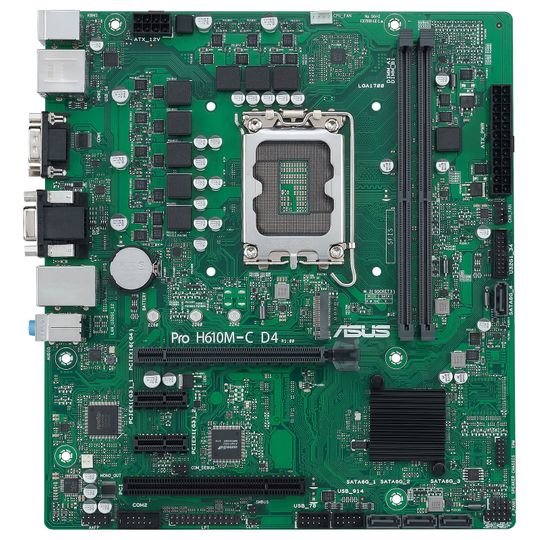

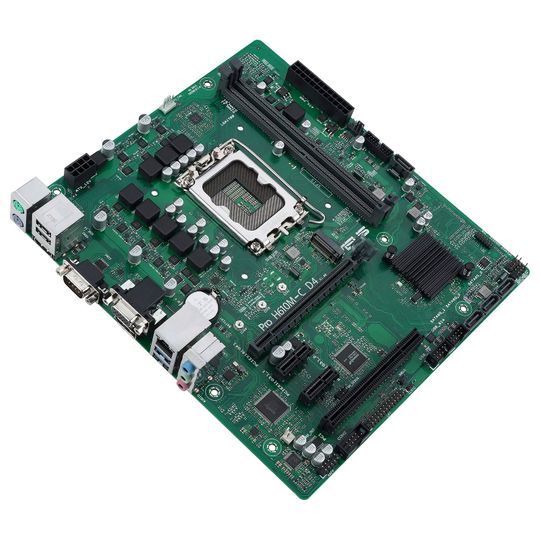

Motherboard 1700 ASUS PRO H610M-C-CSM DDR5 mATX
- Micro-ATX H610 business motherboard with enhanced security, reliability, manageability and serviceability
- Intel® LGA 1700 socket: Ready for 12th & 13th Gen Intel Core™ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast connectivity: PCIe 5.0, DDDR 5, USB 3.2 Gen 2
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
Specifications
- CPU:
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- * Refer to www.asus.com for CPU support list.
- ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
- Chipset: Intel® H610 Chipset
- Memory
- 2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered Memory*
- Dual Channel Memory Architecture
- Supports Intel® Extreme Memory Profile (XMP)
- *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
- Graphics
- 1 x DisplayPort**
- 1 x D-Sub port
- 1 x HDMI® port***
- 1 x DVI-D port
- * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- *** Supports 4K@60Hz as specified in HDMI 2.1.
- **** Supports up to 3 displays simultaneously.
- Expansion Slots
- Intel® 12th Gen Processors
- 1 x PCIe 5.0 x16 slot
- Intel® H610 Chipset
- 2 x PCIe 3.0 x1 slots
- 1 x PCI
- Intel® 12th Gen Processors
- Storage
- Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
- Intel® H610 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
- 4 x SATA 6Gb/s ports
- Ethernet
- 1 x Intel® 1Gb Ethernet
- ASUS LANGuard
- USB
- Rear USB (Total 4 ports)
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- Front USB (Total 6 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Rear USB (Total 4 ports)
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC*
- - Supports: Jack-detection, Front Panel Jack-retasking
- - Supports up to 24-Bit/192 kHz playback
- * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

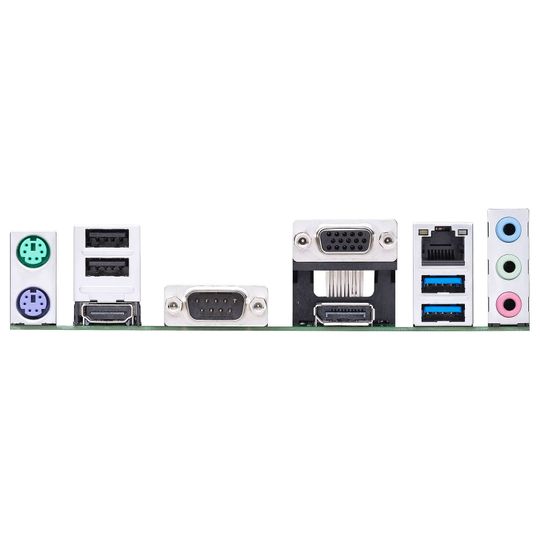

- Back Panel I/O Ports
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI® port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x Intel® 1Gb Ethernet
- 3 x Audio jacks
- 1 x PS/2 keyboard (purple) port
- 1 x PS/2 mouse (green) port
- 1 x COM port
- Internal I/O Connectors
- Fan and cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
- Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- Storage related
- 1 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
- Miscellaneous
- 1 x Clear CMOS header
- 1 x Chassis Intrude header
- 1 x COM Port headers
- 1 x Front Panel Audio header (AAFP)
- 1 x COM debug header
- 1 x LPT header
- 1 x Mono-out header(with Amp IC)
- 1 x SMBUS header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
- Special Features
- ASUS EZ DIY
- - Box Headers
- Bespoke Motherboard Design & Business Focused Features
- - Q-LED Core
- - ASUS Self Recovering BIOS
- - ASUS Event Log
- - ASUS Commercial BIOS kit
- - Anti-Moisture
- - 24/7 Reliability
- - Overcurrent Protection
- Software Features
- ASUS Exclusive Software
- IT Management software supported
- - ASUS Control Center Express(ACCE)
- BIOS
- 128Mb Flash ROM
- Manageability
- WOL by PME, PXE
- Accessories
- Cables
- 2 x SATA 6Gb/s cables
- Miscellaneous
- 1 x I/O Shield
- 1 x M.2 SSD screw package
- Installation Media
- 1 x Support DVD
- Documentation
- 1 x ACC Express Activation Key Card
- 1 x User guide
- Operating System
- Windows® 11 64-bit, Windows® 10 64-bit
- Form Factor
- mATX Form Factor
- 9.6 inch x 8.7 inch (24.4 cm x 22 cm)
