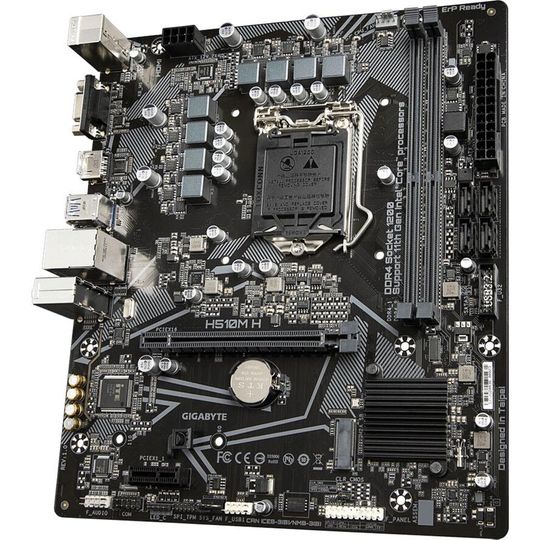

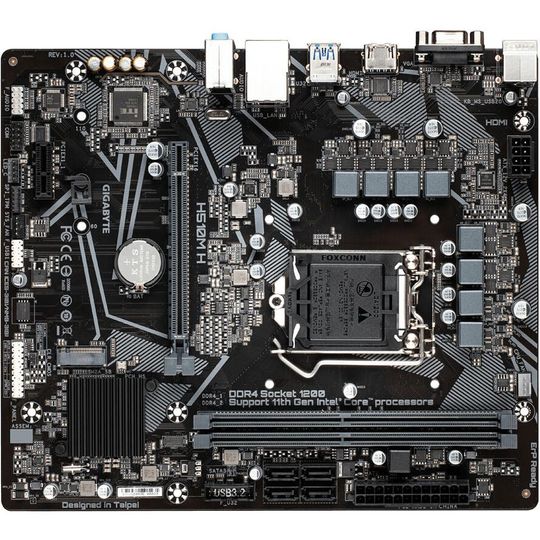

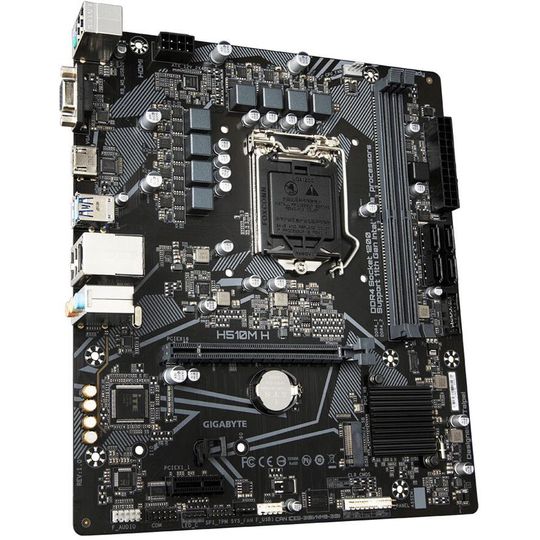

Motherboard 1200 Gigabyte H510M-H - 1.0 mATX
Motherboard Gigabyte H510M H - 1.0 micro ATX Socket LGA1200 H510M H
Technical Specifications
Technical Specifications
Processor
Installed Qty: 0
Max. Supported Qty: 1
Mainboard
Form Factor: Micro ATX
Compatible Processors: Pentium, Celeron, Core i5, Core i3, Core i7, Core i9
Chipset Type: Intel H510
Supported RAM Technology: DDR4 SDRAM
Supported RAM Integrity Check: Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed: 3200 MHz, 2400 MHz, 2133 MHz, 3000 MHz, 2666 MHz, 2933 MHz
Processor Socket: LGA1200 Socket
Power Connectors: 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered): Unbuffered
RAM Slots: 2 DIMM slots
Interfaces
Internal Interfaces: 1 x audio - header, 1 x serial - header, 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header
RAM
Features: Intel Extreme Memory Profiles (XMP), Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max. Supported Size: 64 GB
Video Output
Type: Graphics adapter (CPU required)
Audio Output
Type: Sound card
Compliant Standards: High Definition Audio
Audio: High Definition Audio (8-channel)
Networking
Network: Gigabit Ethernet
Expansion Slots
Expansion Slots: 1 x CPU, 1 x PCIe 4.0 x16 (PCIe 4.0 (11th Gen Intel CPUs), PCIe 3.0 (10th Gen Intel CPUs)), 2 x DIMM 288-pin, 1 x PCIe 3.0 x1
Interfaces
Storage Interfaces: SATA-600 -connectors: 4 x 7pin Serial ATA, SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Storage: Serial ATA-600, M.2 socket
USB / FireWire: USB 3.2 Gen 1
Storage Ports: 4 x SATA-600, 1 x M.2

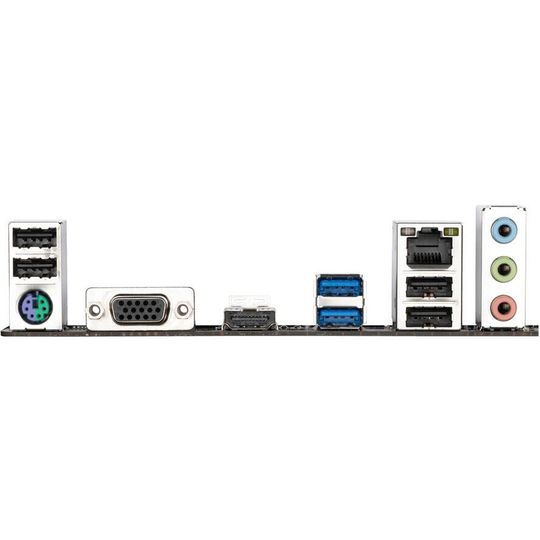

USB / FireWire Ports Configuration (Active): 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers): 2 x USB 3.2 Gen 1 + 2 x USB 2.0
Software
Software Included: EasyTune, Xpress Install, GIGABYTE App Center, Norton Internet Security, @BIOS, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Dimensions & Weight
Dimensions: Width 24,4 cm, depth 21 cm
Weight: 756 grams
Description
Weight: 756 grams
Description
- 6+2 phases hybrid power design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy loading. - Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. - High-end audio capacitors
GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high-fidelity audio to provide the most realistic sound effects for gamers. - High-speed Gigabit LAN with automatic bandwidth allocation
Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application.
