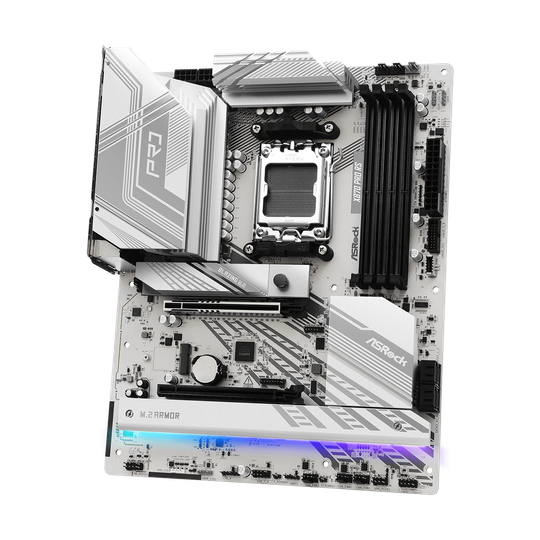

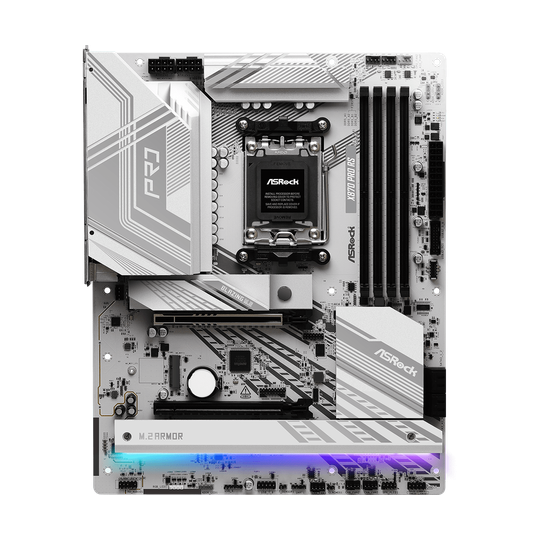

X870 Pro RS

•     Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
•     14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
•     4 x DDR5 DIMMs
•     Supports Dual Channel, up to 8000+ (OC)
•     1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key E for WiFi
•     Graphics Output Options: 2 USB4 Type-C, 1 HDMI
•     Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
•     1 Blazing M.2 (PCIe Gen5x4)
•     1 Hyper M.2 (PCIe Gen4x4)
•     1 Ultra M.2 (PCIe Gen3x4 & SATA3)
•     4 SATA3

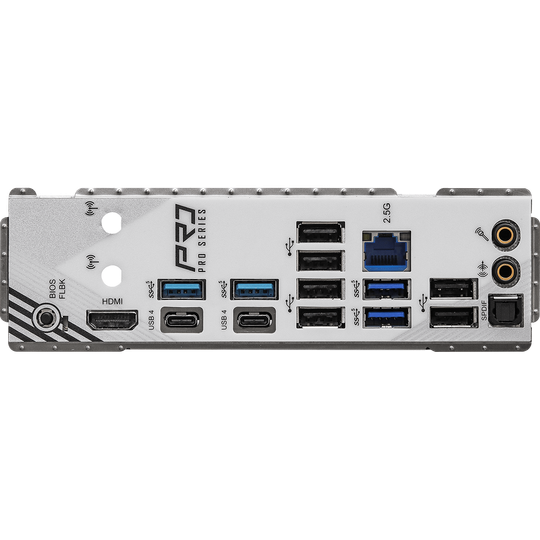

•     2 USB4 Type-C (Rear)
•     1 USB 3.2 Gen2x2 Type-C (Front)
•     6 USB 3.2 Gen1 (4 Rear, 2 Front)
•     9 USB 2.0 (6 Rear, 3 Front)
•     Realtek 2.5G LAN
•     Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

14+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
8 Layer PCB design
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.


Enhanced USB4 Type-C
USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.


Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
