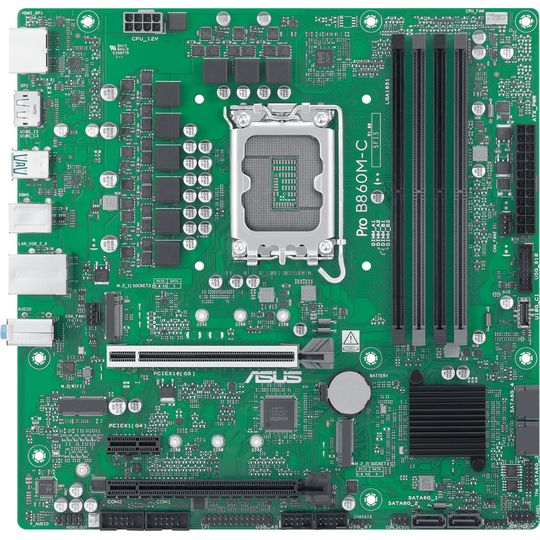

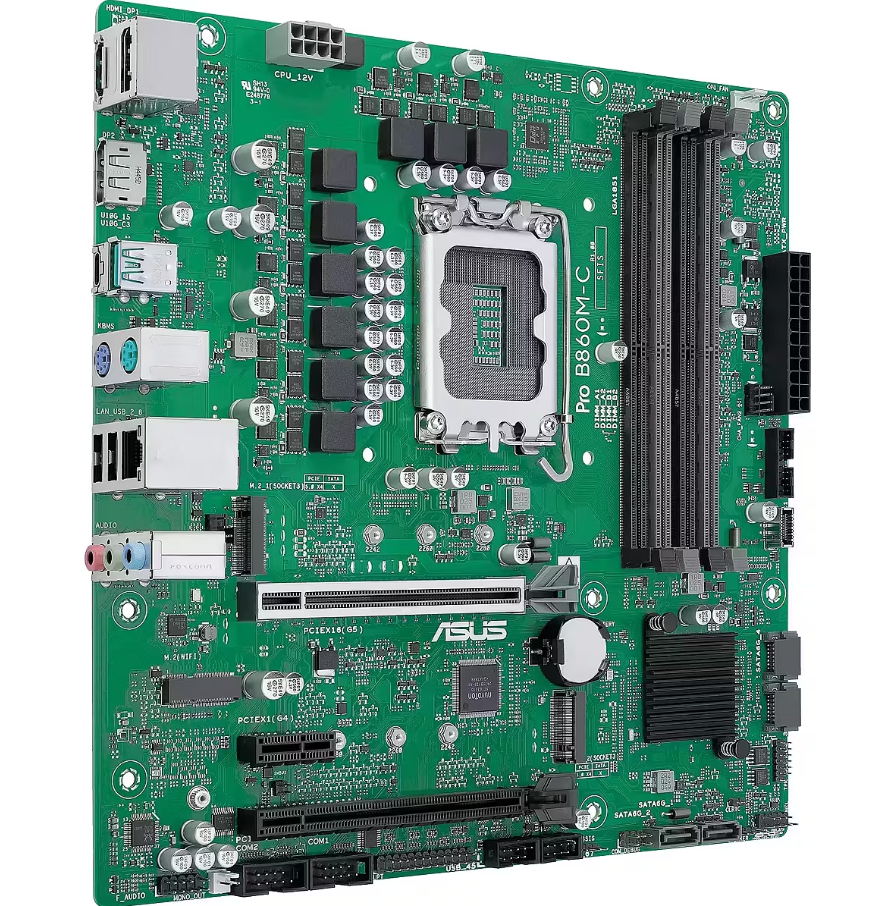

Mainboard 1851 ASUS B860M-C-CSM mATX DDR5
- Micro-ATX B860 business motherboard with enhanced security, reliability, manageability and serviceability
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2)
- ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced System Security: A self-recovering BIOS, NIST SP 800-193 compliance
- Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
- Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
- Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C®
- DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
ASUS Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60
ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.
Tæknilýsing:
- Tegund: Móðurborð
- Formþáttur: micro-ATX
- Chipset: Intel B860
- Sökkull: Intel LGA1851
- Örgjörvastuðningur: Intel Core Ultra (Series 2) fyrir LGA1851
- Vinnsluminni (RAM):
- Minnisgerð: DDR5 (Dual Channel)
- Minnisraufar: 4x DDR5 DIMM
- Hámarks vinnsluminni (MAX RAM): allt að 256GB
- Geymsla:
- M.2 raufar: 2x M.2 (NVMe)
- SATA tengi: 4x SATA 6Gb/s
- Stækkunarraufar (PCI Express):
- 1x PCIe 5.0 x16
- 1x PCIe 4.0 x16 (x4 mode)
- 1x PCIe 4.0 x1
- Myndútgangar (fyrir örgjörva með innbyggðri grafík):
- 1x HDMI
- 2x DisplayPort
- Net:
- 1x RJ-45 LAN (1Gb / Gigabit Ethernet)
- Hljóð:
- Innbyggt HD Audio (7.1 rása)

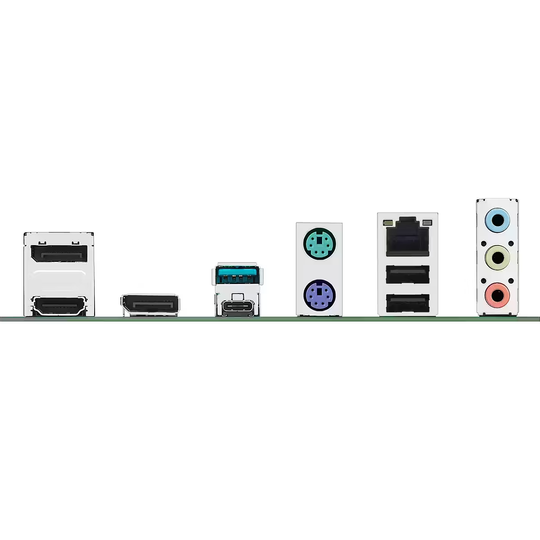

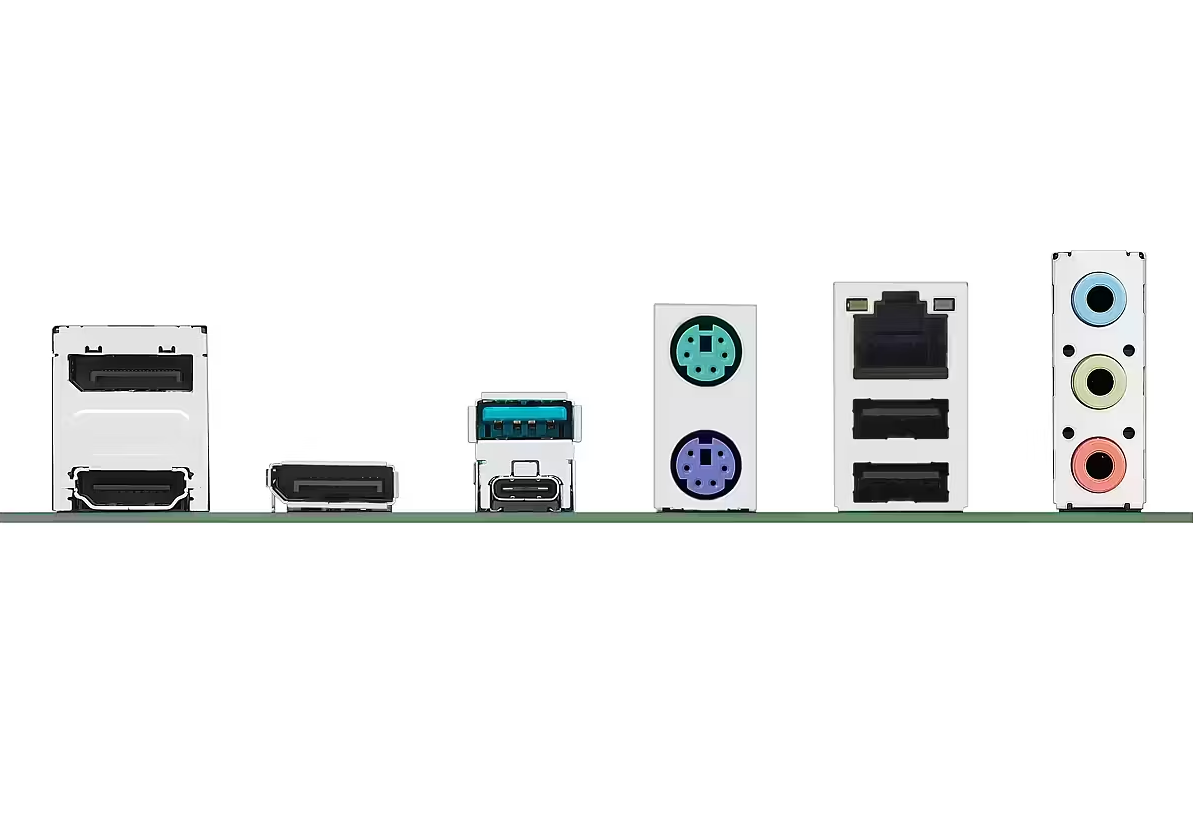

- Tengi á bakhlið (Rear I/O):
- 1x USB-C (USB 10Gbps)
- 1x USB-A (USB 10Gbps)
- 2x USB 2.0 (USB-A)
- 1x HDMI
- 2x DisplayPort
- 1x RJ-45 LAN
- 3x 3.5mm hljóðtengi
- 1x PS/2 (mús/lyklaborð)
- Innri tengi á móðurborði (Headers / Front panel):
- Front panel tengi (Power/Reset/HDD LED/Power LED)
- USB tengi fyrir framhlið (fer eftir uppsetningu)
- HD Audio tengi fyrir framhlið
- Viftutengi (CPU fan + chassis fan)
- Aðrir hausar/tengi geta verið til staðar eftir útgáfu (t.d. COM header / TPM header)
- Aðrir eiginleikar:
- ASUS CSM (Corporate Stable Model) – stöðug framboðslína og langtímastuðningur
- Hannað fyrir vinnustöðvar og fyrirtækjanotkun með áherslu á áreiðanleika og stöðugleika
