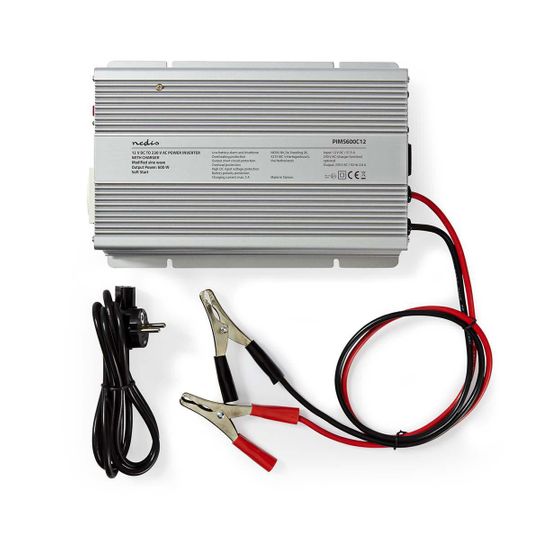

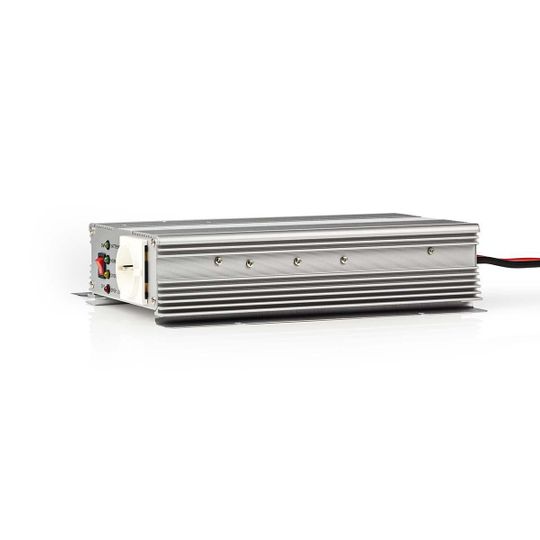

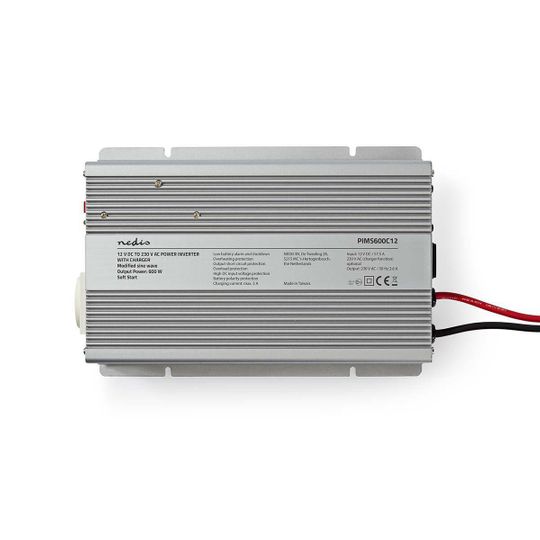

Inverter 12V DC - 230V AC 600 W with built-in charger PIMS600C12
Inverter 12 - 230 V 600 W with built-in charger
Inverter for 12V battery of car and boat. It will invert the 12V DC current to 230V AC. With this device 230V equipment can be connected anywhere! The inverter is equipped with a very high peak output power.
Futhermore, this inverter has got a built in batterycharger. When a normal AC 230V outlet socket is available, the chargerpart of the inverter can be used to fully charge a 12V battery.
Product description
• Charging current: 3 A

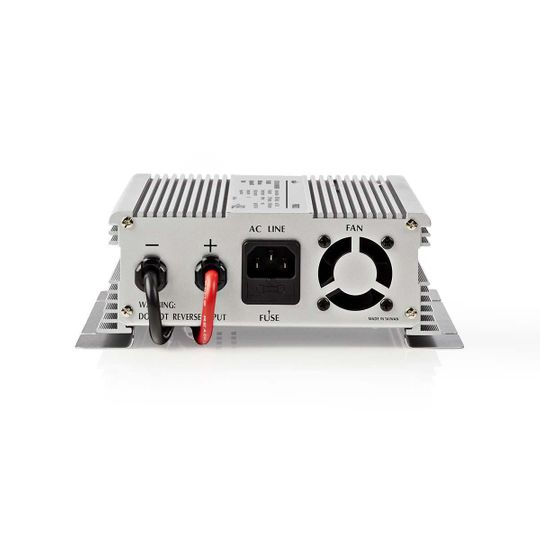

• Cooling: By fan
Protections:
• Battery low alarm: DC 10.5 +/- 0.5 V
Product properties
| Input Voltage | 12 V(DC) |
| Output waveform | Modified sine wave |
| Output Power Continuously | 600 W |
| Input | Battery Clamps |
| Output | Schuko |
| Output Voltage | 230 V(AC) |
| Input current standby | 0.5 A |
| Output Frequency | 50 Hz |
| Peak Output Power | 1500 W |
| Efficiency | 90 % |
| Low battery shutdown protection | 10 V(DC) |
| Thermal Protection | 60 °C |
| Overload Protection | Yes |
| Output short circuit protection | Yes |
| Too high input voltage protection | Yes |
| Wrong battery polarity protection | yes (by fuse) |
| Fuse | 25 A |
| Length | 285 mm |
| Width | 200 mm |
| Depth | 70 mm |
| Weight | 2600 grams |
