Key features

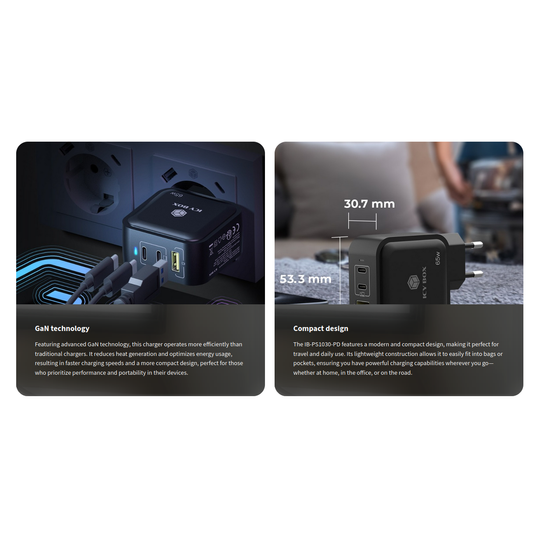

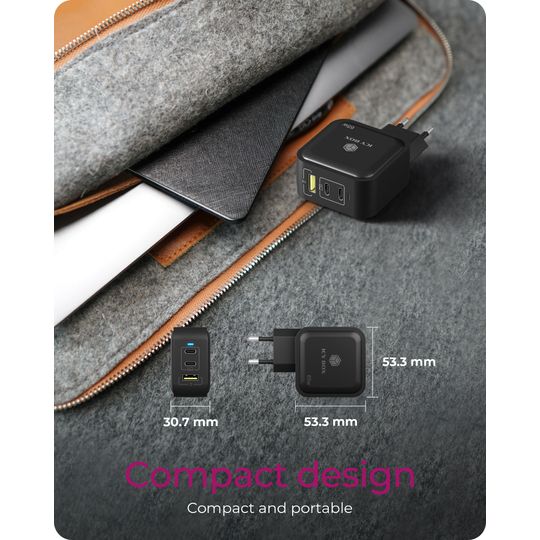

• Compact and energy-efficient Power Delivery 3.0 charger
• Universal compatibility with many notebooks, tablets and smartphones for short charging time
• Power your mobile devices with up to 65 watts via USB Type-C® Power Delivery
• Additional USB Type-A QC 3.0 port with up to 36 watts
• Intelligent chipset automatically detects the required charging mode
• Safe to use with protection against overcharging, overvoltage, overheating and short circuit

Packing content
1x IB-PS103-PD, 1x EU adapter, 1x UK adapter, 1x Manual

Connection
Max. input: AC 100-240 V ~50/60 Hz 1.5 A
USB Type-C® 1: 5 V@3 A = 15 W; 9 V@3 A = 27 W; 12 V@3 A = 36 W; 15 V@3 A = 45 W; 20 V@3.25 A = 65 W
USB Type-C® 2: 5 V@3 A = 15 W; 9 V@3 A = 27 W; 12 V@3 A = 36 W; 15 V@3 A = 45 W; 20 V@3.25 A = 65 W
USB Type-A: 5 V@3 A = 15 W; 9 V@3 A = 27 W; 12 V@3 A = 36 W; 20 V@1.8 A = 36 W
USB Type-C® 1 + Type-C® 2: 30 W + 30 W (max. 60 W)
USB Type-C® 1 + Type-A: 18 W + 45 W (max. 63 W)
USB Type-C® 2 + Type-A: 18 W + 45 W (max. 63 W)
USB Type-C® 1 + Type-C® 2 + Type-A: 30 W+ 18 W + 18 W (max. 66 W)

Technical Specifications

• Model: IB-PS1030-PD
• Article no.: 60888
• EAN code: 4250078172239
• Brand: ICY BOX
• Colour: Black
• Material: PC (Polycarbonate)
• Input: 110–240 V ~ 50/60 Hz, 1.5 A

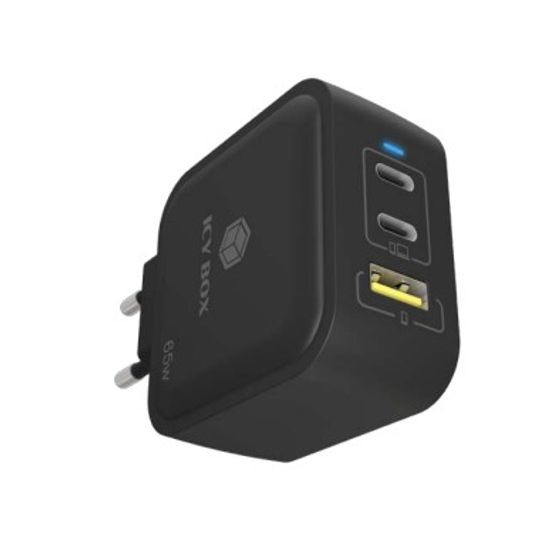

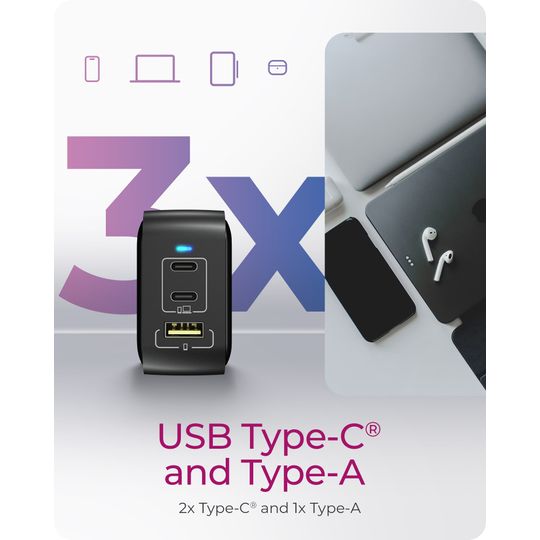

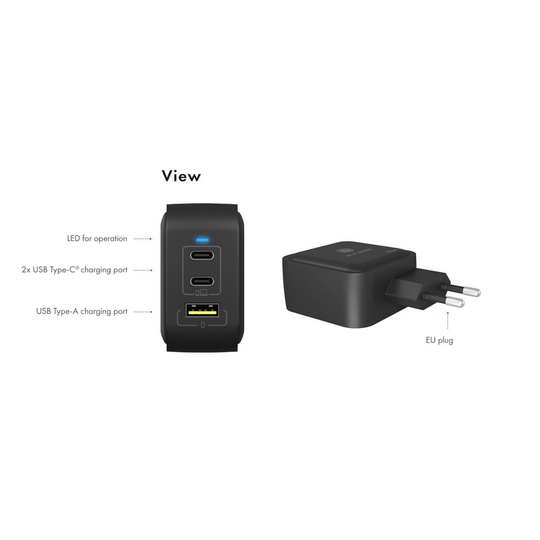

• Charge ports: 2× USB Type-C®, 1× USB Type-A
• Total output: 65 W
• Charge port max. output: See table (page 3)

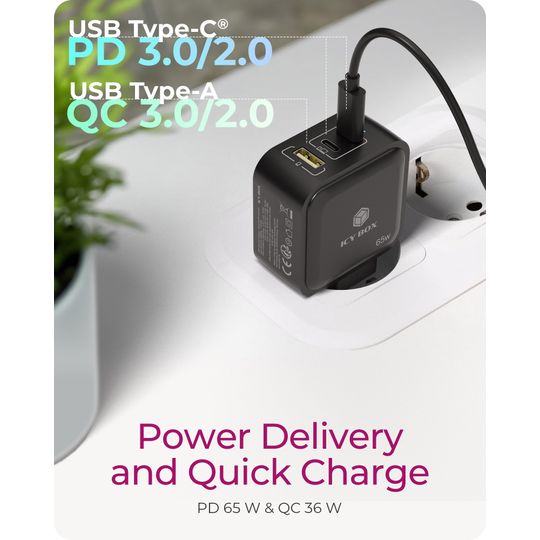

• Charging standard: USB Power Delivery 3.0 (PD), Quick Charge 3.0 (QC 3.0)
• Main socket: EU plug (CEE 7/16), UK plug (BS 1363), US/CA plug (NEMA 1-15)
• Protection class: Class II (indoor use only)
• Efficiency level: VI
• Suitable environment: Indoor
• Operating temperature: 0°C to +25°C
• Operating humidity: 10% RH – 90% RH
• Storage temperature: -20°C to +80°C
• Storage humidity: 5% RH – 95% RH
• Plug & Play: Yes
• LED indicator: Power
• System requirements: USB Type-C® Power Delivery or QC 3.0-enabled computer, tablet, or smartphone. Requires compatible charging cable (not included). Ensure voltage and polarity match.
