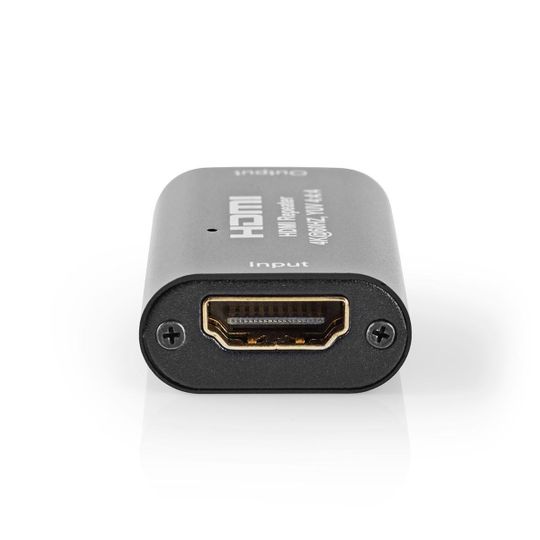

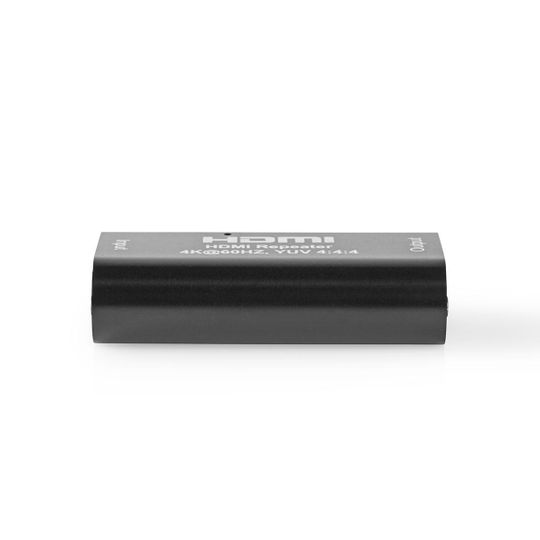

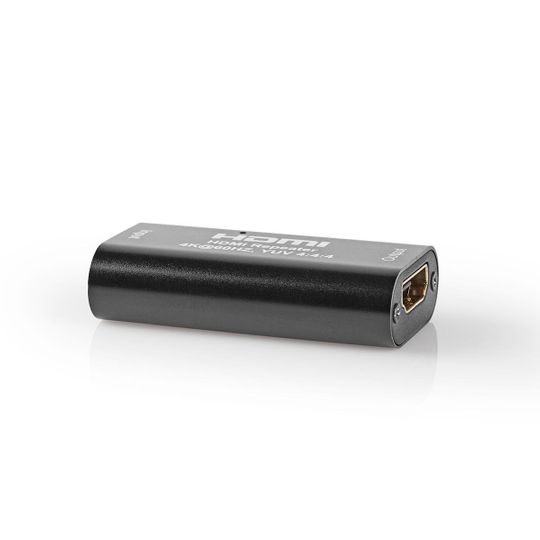

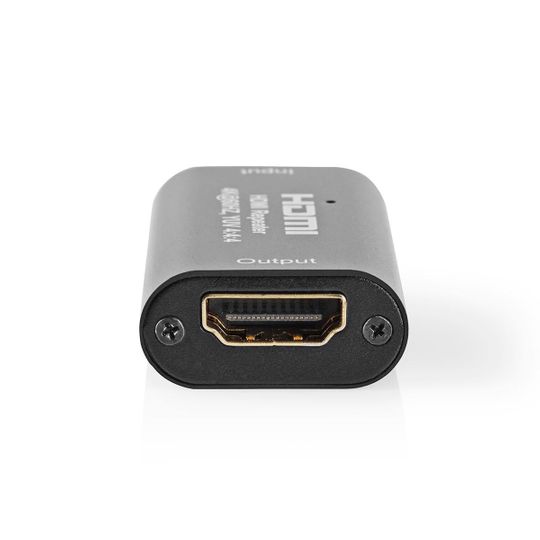

HDMI™ Repeater. HDMI-HDMI 40.0 m, 4K@60Hz, 18 Gbps
HDMI™ Repeater. 40.0 m, 4K@60Hz, 18 Gbps Metal Anthracite
Extend the HDMI™ connection between your TV and a HDMI screen with up to 40 metres. This Nedis® repeater works without signal degradation.
Extend the HDMI™ connection between your TV and a HDMI screen with up to 40 metres. This Nedis® repeater works without signal degradation.
Features
• 4K@60Hz & 3D
• Extends digital video signals up to 40 m 1080P: 40 meter 4K: 20 meter
• Max. transfer rate: 18 Gbps all channels
• Supported colours: 12 bits per channel
• Deep Colour
• Operating frequency: 600 MHz
• Extends digital video signals up to 40 m 1080P: 40 meter 4K: 20 meter
• Max. transfer rate: 18 Gbps all channels
• Supported colours: 12 bits per channel
• Deep Colour
• Operating frequency: 600 MHz

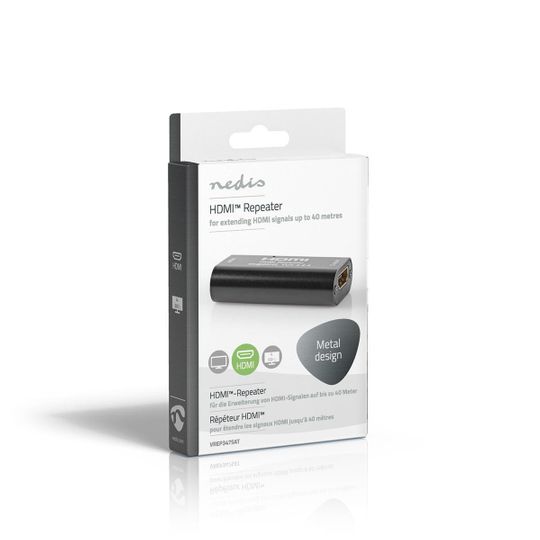

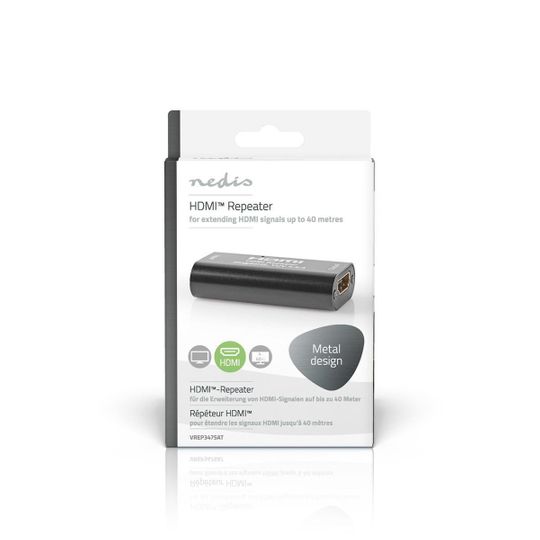

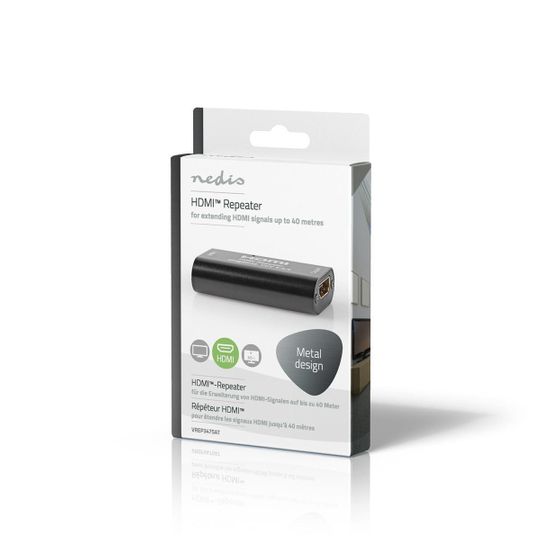

Package contents
HDMI repeater
Product specifications
|
Maximum resolution
|
4K@60Hz
|
|---|---|
|
Maximum bandwith
|
18 Gbps
|
|
Colour
|
Anthracite
|
|
Material
|
Metal
|
|
Aspect ratio
|
16:9
|
|
Supported resolutions
|
1080P@60Hz
720p@60Hz 4K@60Hz 4K@30Hz 576p@60Hz 480p@60Hz |
|
Resolution standard
|
4K UHD
|
|
Depth
|
51.0 mm
|
|
Connection output
|
HDMI™ Output
|
|
Connection input
|
HDMI™ Input
|
|
Supported technology
|
HDCP
|
|
Clock frequency
|
600 MHz
|
|
Input voltage
|
5,0 V DC
|
|
Device type
|
HDMI™ Repeater
|
|
Receiver output
|
1x HDMI™ Output
|
|
Transmitter input
|
1x HDMI™ Input
|
|
Maximum distance
|
40.0 meters
|
|
Height
|
12.8 mm
|
|
Width
|
28.0 mm
|
|
Receiver input
|
1x HDMI™ Input
|
|
Transmitter output
|
1x HDMI™ Output
|
