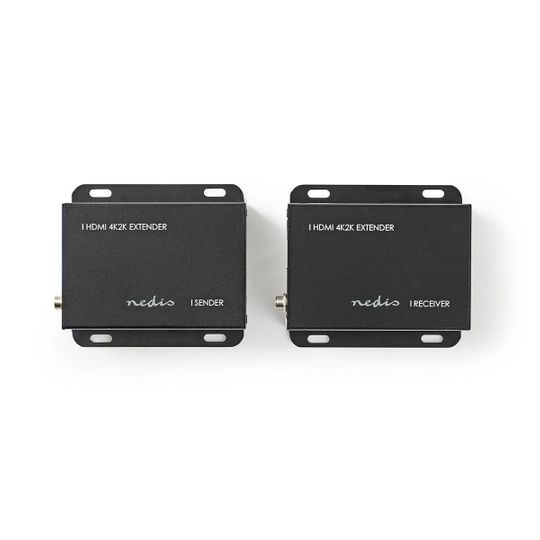

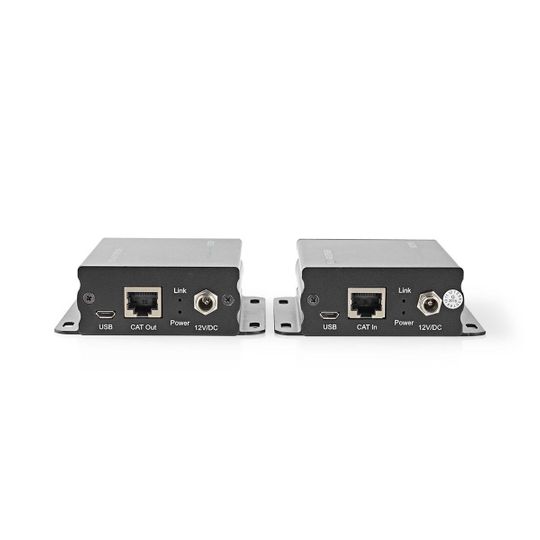

HDMI™ CAT5/6 Extender, 4K@30Hz, Up to 50.0 m. HDMI™ Input + RJ45 Female - HDMI™ Output + RJ45 Female
HDMI™ CAT5/6 Extender, 4K@30Hz, Up to 50.0 m. HDMI™ Input + RJ45 Female - HDMI™ Output + RJ45 Female
Extend the HDMI™ connection between your TV and a HDMI screen with up to 50 metres. This Nedis® extender works without signal degradation.
Extend the HDMI™ connection between your TV and a HDMI screen with up to 50 metres. This Nedis® extender works without signal degradation.
Features
• 4K@30Hz
• Amplification of digital video signals up to 50 m
• Long-distance cover via Cat 5e/6 cables
• Amplification of digital video signals up to 50 m
• Long-distance cover via Cat 5e/6 cables

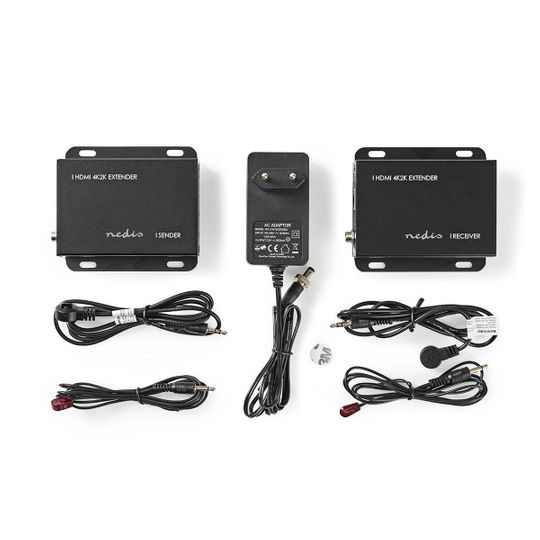

Package contents
HDMI extender transmitter unit
HDMI extender receiver unit
Power supply unit
2x IR transmitter unit
2x IR receiver unit
Quick start guide
HDMI extender receiver unit
Power supply unit
2x IR transmitter unit
2x IR receiver unit
Quick start guide
Product specifications
|
Power plug
|
Euro / Type C (CEE 7/16)
|
|---|---|
|
Material
|
Metal
|
|
Packaging
|
Gift Box
|
|
Outside material
|
Metal
|
|
Function control
|
Automatic
|
|
Length
|
98 mm
|
|
Colour
|
Anthracite
|
|
Supported technology
|
HDCP
4K |
|
Audio support
|
Yes
|
|
Receiver output
|
1x HDMI Output
|
|
Transmitter input
|
1x HDMI Input
|
|
Transmitter output
|
1x RJ45 Female
1x Micro USB B Female |
|
Receiver input
|
1x RJ45 Female
1x Micro USB B Female |
|
Distance
|
50 meters
|
|
Type
|
Extender
|
|
Height
|
30 mm
|
|
Width
|
90 mm
|
|
Data rate
|
10.2 Gbps
|
|
HDCP version
|
HDCP 2.2 Compatible
|
|
Version
|
4K
|
|
Bandwidth
|
600 MHz
|
|
Electronic device type
|
4K HDMI
|
|
Maximum resolution
|
4K@30Hz
|
