Ethernet PCI-E Adapter TP-Link TG-3468 1Gbit LAN Card

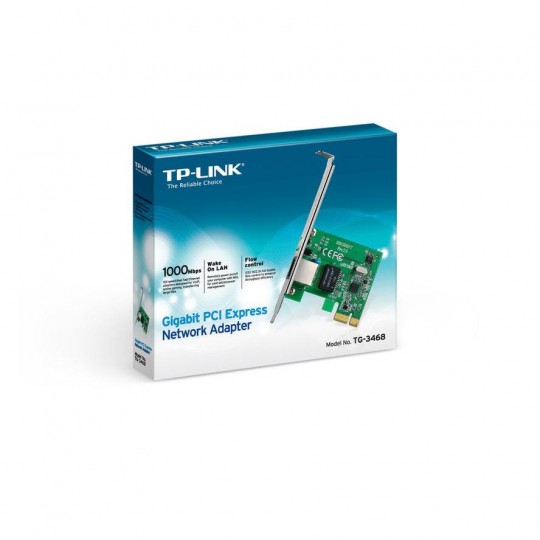

TP-Link TG-3468 Gigabit PCI-E Network Adapter
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
Specifications
- Mfr. Part Number: TG-3468
- Wake-on-LAN supporting
- Auto-Negotiation and Auto MDI/MDIX
- Supports IEEE802.3x Flow Control for Full-duplex Mode and backpressure for Half-duplex Mode
- Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
- Supports power down/link down power saving
- DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware
- Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
- Interface: 32-bit PCIe 1.0a
- Transmission Rate: 10/100Mbps for Half-Duplex mode; 20/200/2000Mbps for Full-Duplex mode
- Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
- Jumbo Frame: 4k Bytes
- Port: 1x 10/100/1000Mbps RJ45
- Network Media:
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000Base-T: UTP category 5, 5e cable (maximum 100m)
- LED Indicator: 1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex
- Safety & Emission: FCC, CE
- Operating System: DOS/Win98SE/Me/2000/XP/Vista//Win7/Win8/Win10/Linux/Novell Netware
