Digital Audio Converter 1x TosLink Female + 1x S/PDIF (RCA) Female - 2x RCA Female ACON2509BK
Digital Audio Converter, 2-way. Connection input: 1x S/PDIF (RCA) Female / 1x TosLink Female. Connection output: 2x RCA Male. Manual
This digital to analog audio (DAC) converter is suitable to convert a digital audio signal to an analog audio signal. Thanks to this converter you can connect a device with optical Toslink output or coaxial RCA (S/P-DIF) output to an amplifier / receiver with analog Tulp stereo 2x RCA input.
For example, a DVD or Blu-ray player can be connected to the input of the device and the signal can be delivered via optical TOSLINK or via an S/P-DIF coaxial connection. At the output port, the audio signal is sent through the RCA jack.
For example, a DVD or Blu-ray player can be connected to the input of the device and the signal can be delivered via optical TOSLINK or via an S/P-DIF coaxial connection. At the output port, the audio signal is sent through the RCA jack.
Features
• 1-way conversion - Converts digital Toslink or RCA audio signals to analogue stereo audio signals
• Amplifies digital audio signals - Keeping the audio signal in the digital domain virtually all the way to the connected device
• Compact design - For easy installation and use
• Amplifies digital audio signals - Keeping the audio signal in the digital domain virtually all the way to the connected device
• Compact design - For easy installation and use

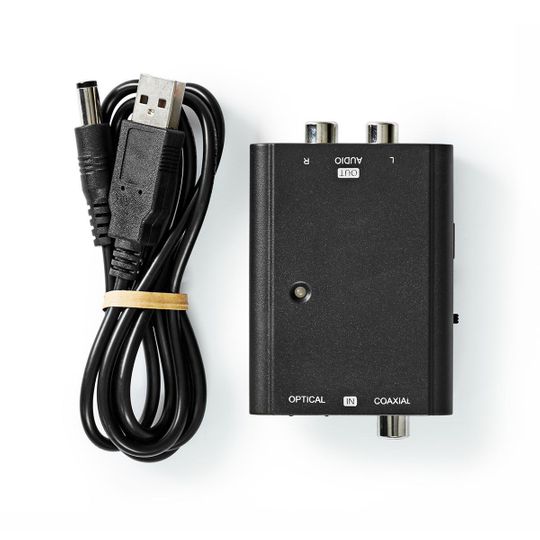

Package contents
Audio converter
1.5 m DC to USB power cable
Quick start guide
1.5 m DC to USB power cable
Quick start guide
Product specifications
|
Data transfer direction
|
2-way
|
|---|---|
|
Colour
|
Black
|
|
Material
|
ABS
|
|
Power cable side A
|
USB
|
|
Input current
|
0.6 A
|
|
Power source type
|
USB Powered
|
|
Power cable length
|
1.80 meters
|
|
Power consumption in standby mode
|
1.0 W
|
|
Width
|
57.0 mm
|
|
Device type
|
Digital Audio Converter
|
|
Power on LED indicator
|
Yes
|
|
Power switch
|
Yes
|
|
Supported bitrates
|
44.1 kHz 24-bit
48 kHz 24-bit 96 kHz 24-bit |
|
Supported formats
|
PCM
|
|
Controlling method
|
Manual
|
|
Connection input
|
1x TosLink Female
1x S/PDIF (RCA) Female |
|
Connection output
|
2x RCA Male
|
|
Height
|
23.0 mm
|
|
Length
|
84.0 mm
|
|
Depth
|
50.5 mm
|
|
Device power input connection(s)
|
DC 9 x 5.5 mm
|
|
Power cable side B
|
DC 9 x 5.5 mm
|
|
Power consumption in operating mode
|
2.0 W
|
|
Weight
|
44.0 grams
|
|
Input voltage
|
5,0 VDC
|
