USB Adapter Delock A -> D-Sub9 St/St

Description

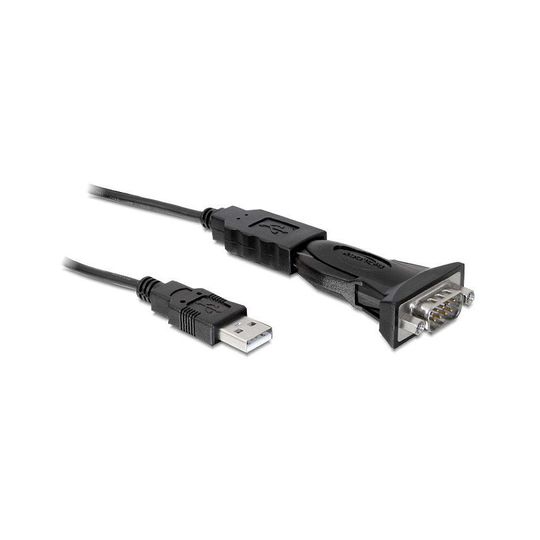

This adapter by Delock enables the connection of a serial device via a USB Type-A port.

Specification
• Connectors:
  1 x USB 2.0 Type-A male >
  1 x serial RS-232 DB9 male with nuts
• Chipset: FTDI
• Data transfer rate up to 460.8 Kbps
• Cable length incl. connectors: ca. 0.8 m

System requirements
• Linux Kernel 2.6 or above
• Mac OS 10.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port

Package content
• USB 2.0 to 1 x serial adapter

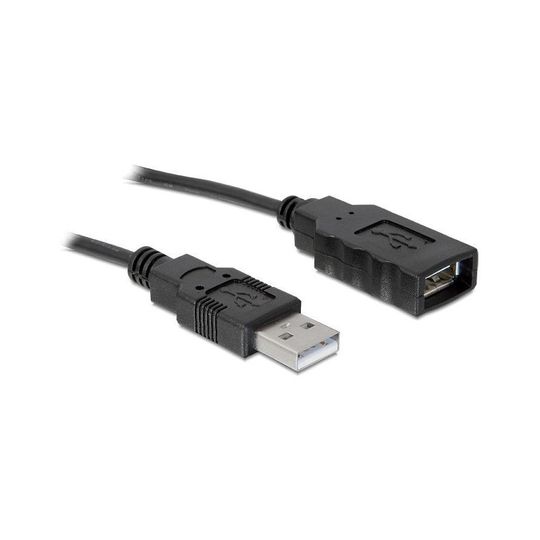

• USB 2.0 extension cable
• Driver CD
• User manual

Package
• Retail Box

Technical Details:

• General
  • Function • Plug & Play
• Specification
  • RS-232 (EIA / TIA)
  • USB 1.1
  • USB 2.0
• Supported operating system • Mac OS 10.9 or above
  • Windows 7 32-bit
  • Windows 7 64-bit
  • Windows 8.1 32-bit
  • Windows 8.1 64-bit
  • indows 10 32-bit
  • Windows 10 64-bit
  • Windows Server 2008 R2
  • Windows Server 2012 R2
  • Windows Server 2012
  • Windows Server 2016
  • Linux Kernel 2.6 or above
• Interface
  • Connector 1 • 1 x USB 2.0 Type-A male
  • Connector 2 • 1 x Serial RS-232 DB9 male
• Technical characteristics
  • Chipset • FTDI FT232RL
  • FIFO
    • • 128 byte
    • • 256 Byte
  • Signal transmission • TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
  • Data transmission
    • • asynchronous
    • • full duplex
  • Current consumption • 20 mA
• Physical characteristics
  • Cable colour • black
  • Cable length • 80 cm
  • Cable length incl. connector • 87 cm
  • Pin finishing • gold-plated
  • Screw type • #4-40 UNC
  • Shielding • double
  • Colour • black
