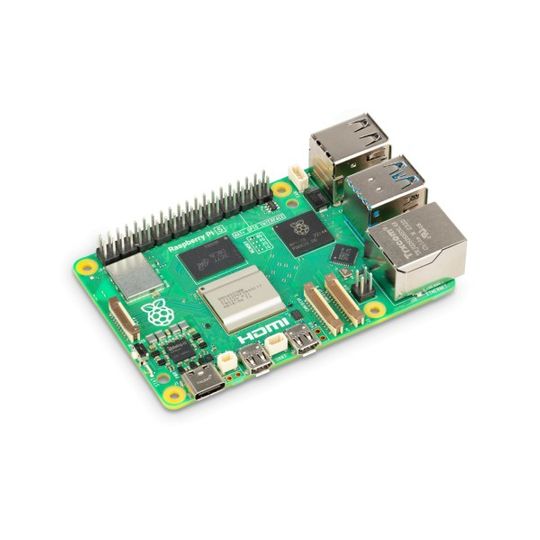

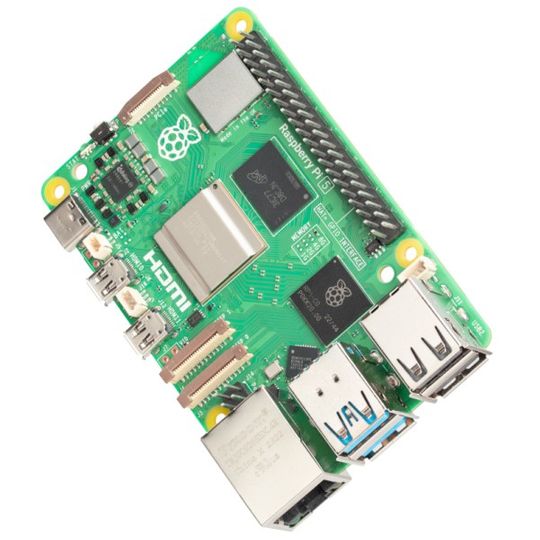

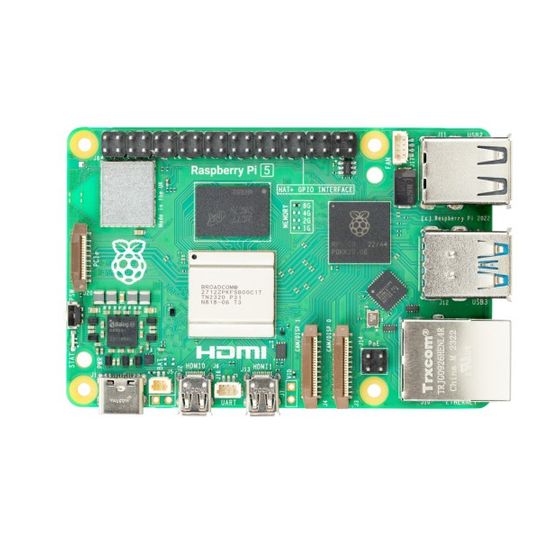

Raspberry Pi 5 4GB
The Raspberry Pi 5 builds upon the phenomenal success of the Raspberry Pi 4. Compared to its predecessor, it delivers a 2-3x increase in CPU performance and a significant improvement in GPU performance, along with enhancements to the camera, display, and USB interface.

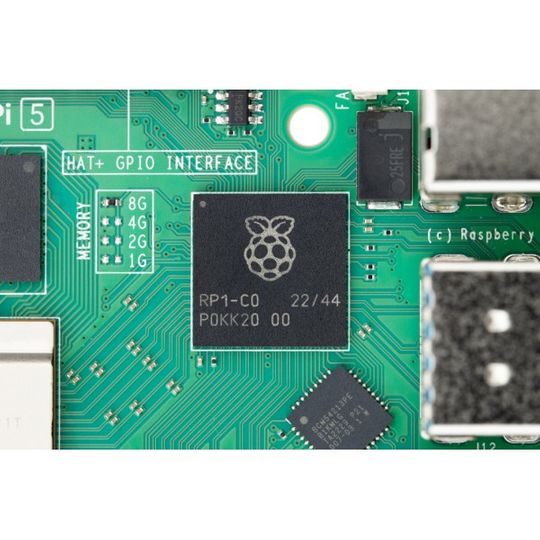

These interface improvements are provided by the RP1 I/O controller chip, designed in-house by Raspberry Pi. So, for the first time, there is actual Raspberry Pi silicon in their flagship product!
| 2.4GHz quad-core, 4GB LPDDR4X-4267 SDRAM, 802.11ac Wi-Fi, Bluetooth 5.0, Micro SD, 2 × USB 3.0,2 × USB 2.0, Gigabit Ethernet Raspberry Pi SC1111, 2400 MHz, Arm Cortex-A76, 512 KB, LPDDR4x-SDRAM, 4267 MHz |
| Processor | |
|---|---|
| Processor frequency: | 2400 MHz |
| Processor model: | Arm Cortex-A76 |
| Processor cache: | 512 KB |
| Processor cores: | 4 |
| 64-bit computing: | Yes |
| Memory | |
|---|---|
| Internal memory: | 4 GB |
| Internal memory type: | LPDDR4x-SDRAM |
| Memory clock speed: | 4267 MHz |
| RAM capacity: | 4000 MB |
| RAM type: | LPDDR4x |
| Compatible memory cards: | MicroSD (TransFlash) |
| Ports & interfaces | |
|---|---|
| Wi-Fi: | Yes |
| Wi-Fi standards: | Wi-Fi 5 (802.11ac) |
| Ethernet LAN: | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Power over Ethernet (PoE): | Yes |
| USB version: | 2.0 |
| USB ports quantity: | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: | 2 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.0 |
| Bluetooth Low Energy (BLE): | Yes |
| Expansion slots | |
|---|---|
| PCI version: | 2.0 |
| Graphics | |
|---|---|
| On-board graphics card: | Yes |
